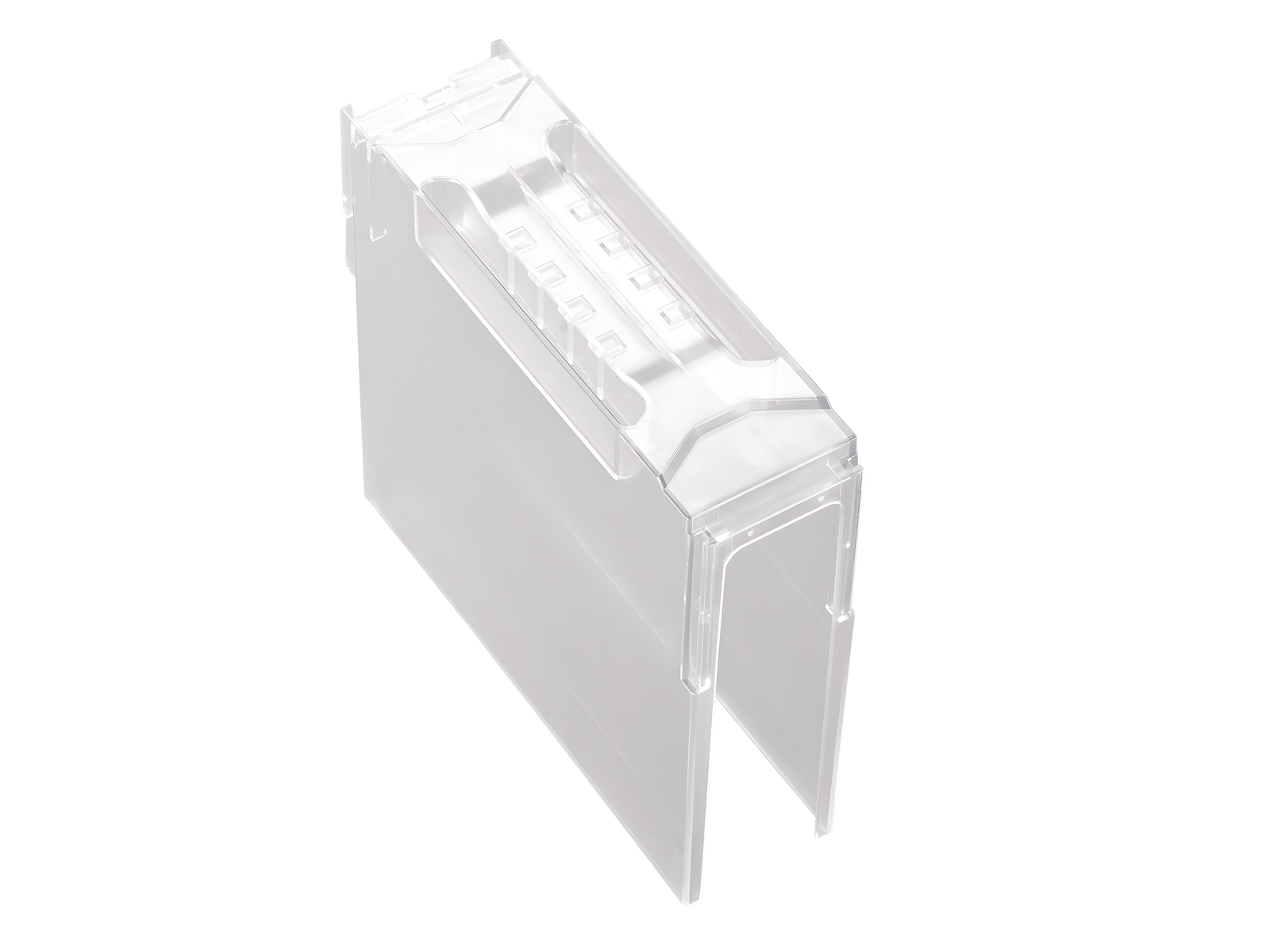

terminal compartment cover, flat version, connection bottom (33725)

The picture may show a similar product.

Description

Part No.: 33725000A

terminal compartment cover, flat version, connection bottom

for 33704, 33705, 33719, 33724, 33773, 33774, 33775

size 00

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267337254
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 13.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33719000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
