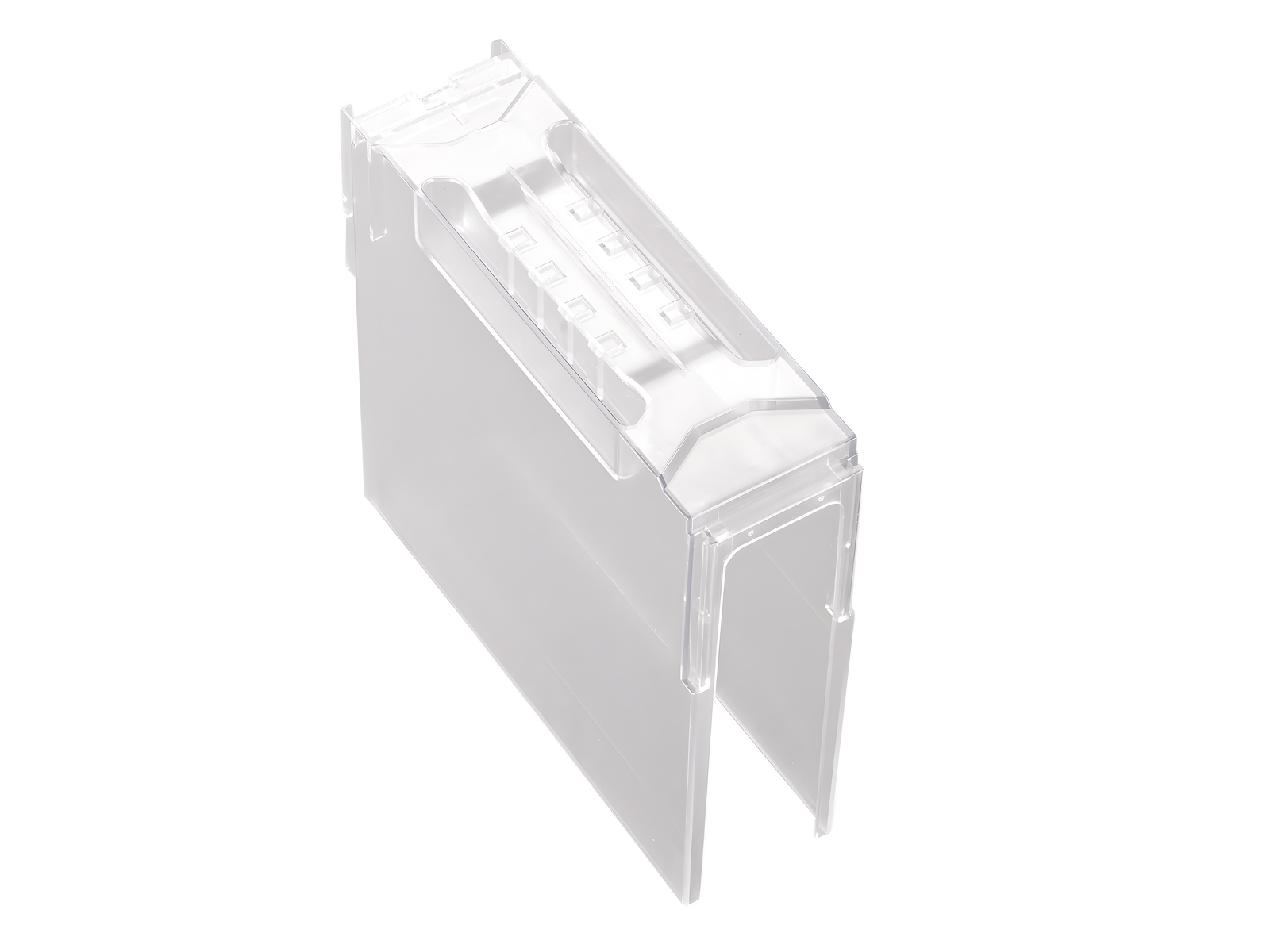

cubierta del área de conexión, modelo plano, conexión inferior (33725)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33725000A

cubierta del área de conexión, modelo plano, conexión inferior

für 33704, 33705, 33719, 33724, 33773, 33774, 33775

talla 00

sistema

185Power

grupo de producto 12
subgrupo 70
embalaje 1
EAN 4021267337254
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos mecánicos
peso: 13.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Se utiliza para

33719000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 1 polo conmutable
flat version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33775000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 1 polo conmutable
flat version with box terminal 70 mm²
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33724000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables, con control de fusibles
flat version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33774000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables, con control de fusibles
flat version with box terminal 70 mm²
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33704000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
flat version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33773000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
flat version with box terminal 70 mm²
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33705000A
QUADRON®185Power
base vertical para fusibles NH, 160 A
talla 00, forma constructiva abierta
tornillo M8, modelo plano
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas
