door coupling rotary drive (23934)

The picture may show a similar product.

Description

Part No.: 23934000AD

CAPUS®Panel

door coupling rotary drive

graphite grey, without handle

with door interlock, for padlocks

for BB32 630 A / 1000 A / 1250 A / 1600 A

ECC-14

NEW

Advantages of the product

handle can be locked in position 0 (off) with up to three locks with shackle diameter 4 to 5 mm

Product group 14
Subgroup 51
pack size 1
EAN 4021267239343
ECLASS 6.1 27371492
ECLASS 7.1 27371492
ETIM 4.0 EC000229
ETIM 5.0 EC000229

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 61.0 kg/100
front degree of protection: IP54

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| Dimensioned drawing  #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

23924000AD
extension shaft, 300 mm long
for: S32 630 A - 3150 A
NEW
More

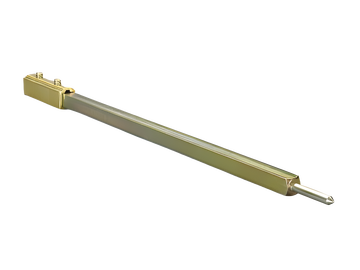

33381000
extension shaft, 550 mm long
LTS-800, LTS-F 630
for: LTS-800, LTS-F630
More

Usage

23118000AD
CAPUS®Panel
changeover switch 4-pole
screw M12
1600 A
NEW
More

23117000AD
CAPUS®Panel
changeover switch 4-pole
screw M16
1250 A
NEW
More

23115000AD
CAPUS®Panel
changeover switch 4-pole
screw M10
630 A
NEW
More

23116000AD
CAPUS®Panel
changeover switch 4-pole
screw M12
1000 A
NEW
More

23128000AD
CAPUS®Panel
changeover switch 3-pole + N
screw M12
1600 A
NEW
More

23186000AD
CAPUS®Panel
changeover switch 3-pole
screw M12
1600 A
NEW
More

23164000AD
CAPUS®Panel
changeover switch 3-pole
screw M12
1000 A
NEW
More

23175000AD
CAPUS®Panel
changeover switch 4-pole
screw M12
1000 A
NEW
More

23196000AD
CAPUS®Panel
changeover switch 4-pole
screw M12
1600 A
NEW
More

23106000AD
CAPUS®Panel
changeover switch 3-pole
screw M12
1000 A
NEW
More

23105000AD
CAPUS®Panel
changeover switch 3-pole
screw M10
630 A
NEW
More

23193000AD
CAPUS®Panel
changeover switch 4-pole
screw M10
630 A
NEW
More

23183000AD
CAPUS®Panel
changeover switch 3-pole
screw M10
630 A
NEW
More

23195000AD
CAPUS®Panel
changeover switch 4-pole
screw M16
1250 A
NEW
More

23185000AD
CAPUS®Panel
changeover switch 3-pole
screw M16
1250 A
NEW
More

23194000AD
CAPUS®Panel
changeover switch 4-pole
screw M12
1000 A
NEW
More

23184000AD
CAPUS®Panel
changeover switch 3-pole
screw M12
1000 A
NEW
More

23174000AD
CAPUS®Panel
changeover switch 4-pole
screw M10
630 A
NEW
More

23163000AD
CAPUS®Panel
changeover switch 3-pole
screw M10
630 A
NEW
More

23127000AD
CAPUS®Panel
changeover switch 3-pole + N
screw M16
1250 A
NEW
More

23108000AD
CAPUS®Panel
changeover switch 3-pole
screw M12
1600 A
NEW
More

23126000AD
CAPUS®Panel
changeover switch 3-pole + N
screw M12
1000 A
NEW
More

23125000AD
CAPUS®Panel
changeover switch 3-pole + N
screw M10
630 A
NEW
More

23107000AD
CAPUS®Panel
changeover switch 3-pole
screw M16
1250 A
NEW
More
