The picture may show a similar product.
订货号 33164 000
压板连接端子，适用于铜导线
120 - 240 mm²

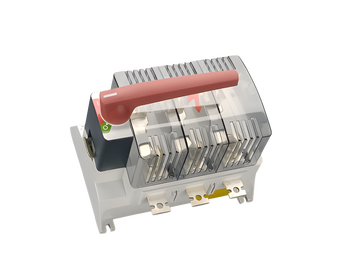

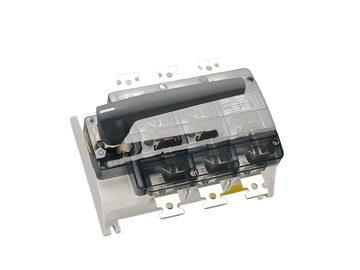

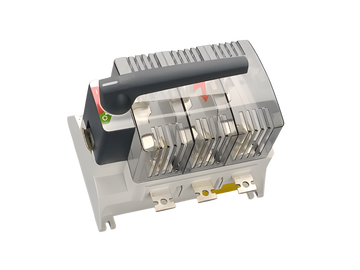

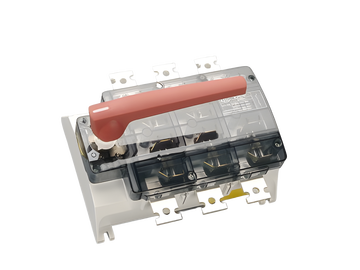

适用于 QCB-NH2, LTS-F 400, LTS 630
| 产品组 | 09 |
分组 |
51 |
| 包装件数 | 1 |
| EAN | 4021267331641 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| 标准 | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
电气数值
功率输出:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| 机械数值 | |
| 重量: | 10.6 kg/100 |
| 连接端 | |
| min. cross-section: | 120 mm² |
| 最大横截面积: | 240 mm² |
| rm: | 120 - 240 mm² |
| f + AE: | 120 - 240 mm² |
| (f + AE may not fit with max. cross-section) | |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 16 - 21 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Not suitable for aluminium cables ! | |
|
由主产品决定 |
|
