Part No.: 01357 000

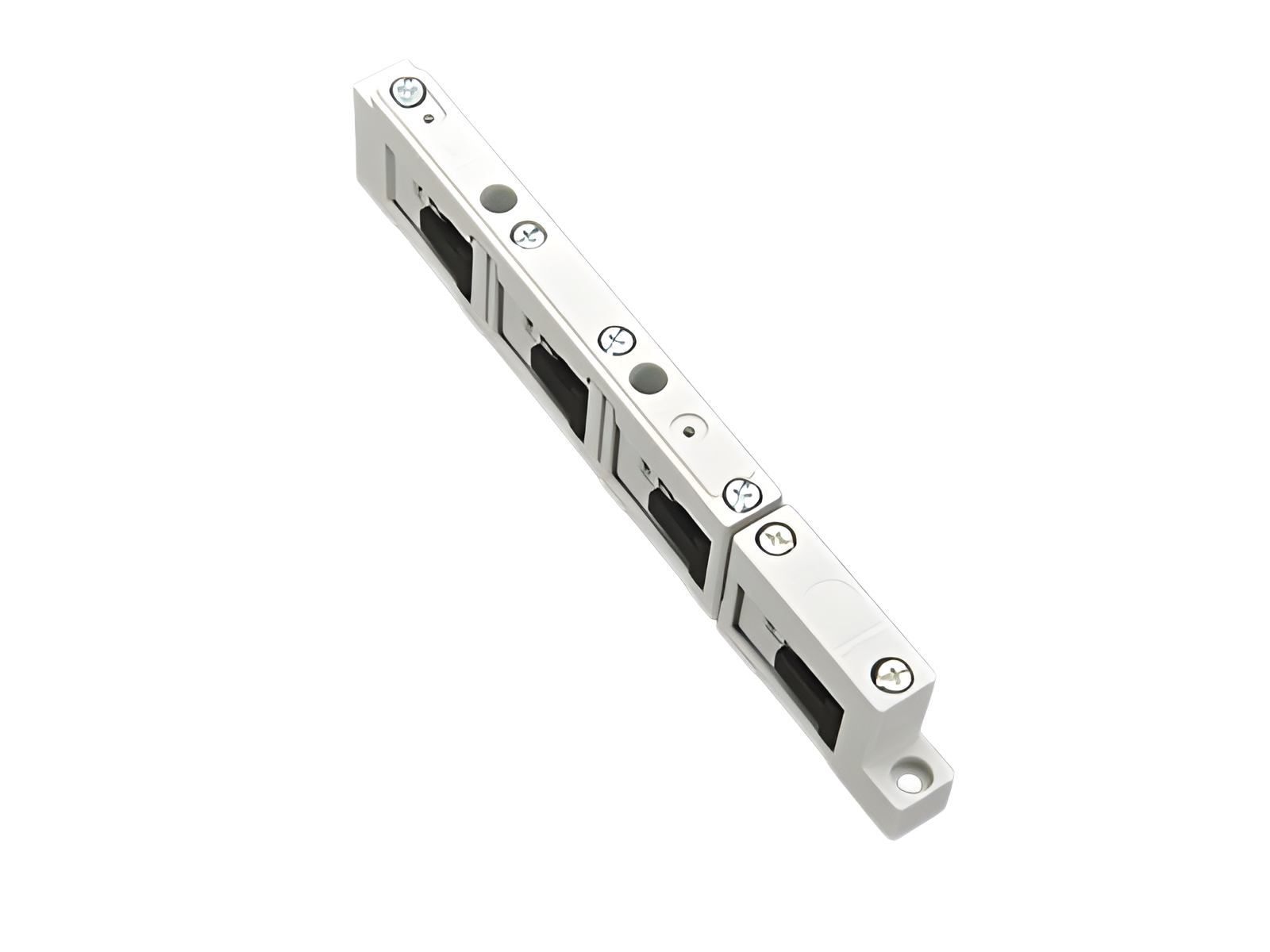

universal busbar support UL
4-pole, with internal screw holes
for busbars 12, 20, 30 x 5, 10
System
60Classic
Advantages of the product
With internal screw holes
can also be used as centre support
| Product group | 06 |
| Subgroup | 12 |
| pack size | 10 |
| EAN | 4021267013578 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: S62015-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 800 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| Kurzschlussfestigkeit nach IEC: 3-phasiger KS: Stoßstromfestigkeit > 45 kA bei Schienenträgerabstand 400 mm Stoßstromfestigkeit > 50 kA bei Schienenträgerabstand 250 mm 1-phasiger KS Stoßstromfestigkeit > 36 kA bei Schienenträgerabstand 400 mm |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 22 kA |
| 400 mm support spacing |
| Mechanical data | |
| W x H x D: | 21 x 272 x 51 |
| weight: | 19.7 kg/100 |
| poles: | 3-pole+N |
| for busbars: | 12, 20, 30 x 5, 10 |
| The insulation performance of the article depends on the installation conditions. | |
|

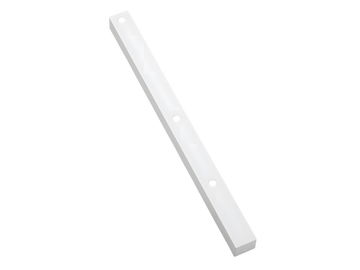

To maintain the increased air and creepage sections as per UL508A, the spacer is to be used. |
|
| for UL feeder circuits >250V |
