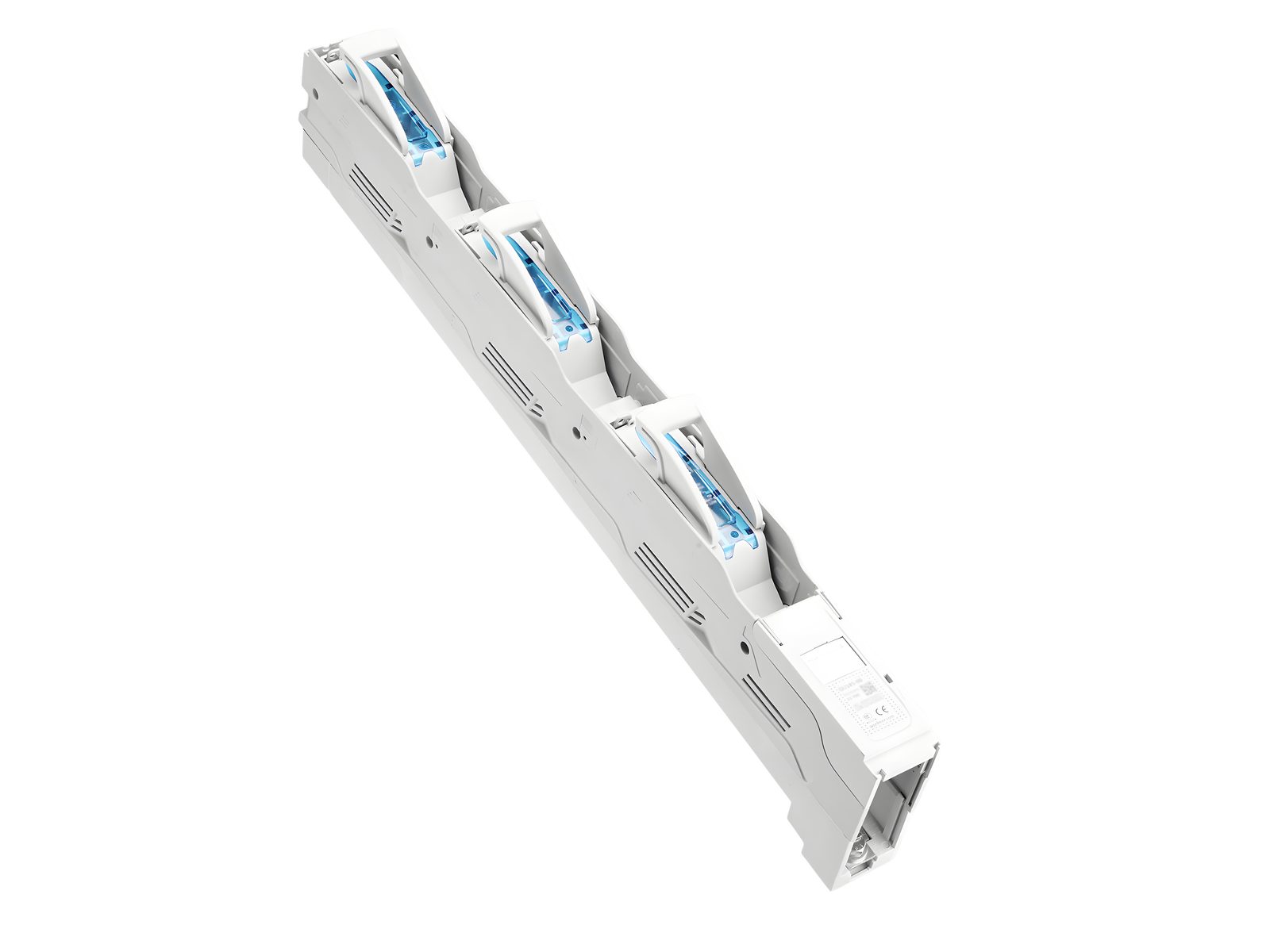

in-line fuse switch-disconnector 160 A

The picture may show a similar product.

Description

Part No.: 33529 000A

QUADRON 185Power

in-line fuse switch-disconnector 160 A

Size 00, 1-pole switchable

flat version with V-clamp 95 mm²

terminal body Al, pressure piece brass

for busbars 30, 40, 60, 80, 100, 120 x 10

phase-out product

date of phase-out: 31.03.2026

System

185Power

Advantages of the product

Self-closing inspection holes are available in the cover.

Cover can be locked when closed.

Product group 12
Subgroup 42
pack size 1
EAN 4021267335298
ECLASS 14.0 27142108
ETIM 5.0 EC001046
ETIM 8.0 EC001046
ETIM 10.0 EC001046

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

IEC (CB) , CCC

type number: QU185-00 V-Clamp

EAC Type: NH

Technical data

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 160 A
rated voltage (IEC) AC: 800 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 8 kV
Utilisation category AC (IEC 60947-3) : AC-22B (800 V / 63 A)
AC-21B (690 V / 125 A)
AC-22B (500 V / 160 A)
AC-23B (400 V / 160 A)
cond. short-circuit current with fuses (AC): 30 kA / 800 V (63 A)
100 kA / 690 V
approved wth fuse links of operation class: gG
short-circuit strength when protected by fuses: 100 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 14,7 W.

(The power dissipation at full load would be 23,0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
further utilisation category DC (IEC 60947-3): DC-20B
max. voltage between the fuses: 1000V
visible information required: Do not switch under load.
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
min. permitted operation temperature -40°C
max. permitted operation temperature 55°C
min. permitted temperature for transport and storage -40°C
Degree of protection IP20 at front, degree of protection near terminal depends on installation
Mechanical data
W x H x D: 50 x 670 x 147
weight: 211,4 kg/100
for busbars: 30, 40, 60, 80, 100, 120 x 10
CT can be integrated in the device: nein
front degree of protection: IP20
Terminal points
v-clamp
min. cross-section: 16 mm²
max. cross-section: 120 mm²
re: 16 - 95 mm²
rm: 16 - 95 mm²
se: 25 - 120 mm²
sm: 25 - 120 mm²
Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)
Material properties
halogen-free: No

Application notes

Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Mounting instructions

| Dimensioned drawing  #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

accessories for mounting

33728 000A
double adapter
for 2 devices size NH 00
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33739 000A
terminal clamp
for busbar systems without system covers
size 00
for: QU185-00...
More

33765 000A
CrossLink® terminal clamp IP20
for busbar systems with touch-safe protection
size 00
for: QU185-00...
More

connection accessories

33556 000A
V-clamp
terminal body alu, pressure piece brass
size 00
für Cu / Al 16 - 120 mm²
stock sale
More

33563 000B
connection kit
with 1 V-clamp, without cover
terminal body alu, pressure piece brass
for Cu / Al 16 - 120 mm²
e.g. for drilled PE or N bars
More

covers

33758 000A
lateral bearing strip
for front covers
size 00 - 3
More

33725 000A
terminal compartment cover, flat version, connection bottom
for 33704, 33705, 33719, 33724, 33773, 33774, 33775
size 00
More

33113 000
lateral cover support
for front covers
size 00 - 3
More

connection cable

37904 000A
pin connector with RJ12 lead
3 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More

37907 000A
pin connector with RJ12 lead
0.3 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More

37905 000A
pin connector with RJ12 lead
1.5 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More

37903 000A
pin connector
for independent assembly of RJ12 cables
NEW
More

37906 000A
pin connector with RJ12 lead
0.6 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
NEW
More

37901 000A
Connection kit
spring connector strip with 6 x 0.5 mm² leads
for internal wiring of CTs / measuring transformers
coming soon
More

further accessories

33156 000
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
More

33766 000A
plug support with mounting rail
for CT wiring
size 00
More

measuring transformers 333mV

33303 000A
measuring transformers 100 A / 333 mV
size CT3
class 0.5
More

33305 000A
measuring transformers 100 A / 333 mV
size CT3
2,5 VA / class 1
More

33290 000A
measuring transformers 150 A / 333 mV
size CT3
2.5 VA / class 0.5
More

33291 000A
measuring transformers 150 A / 333 mV
size CT3
2.5 VA / class 1
More

current transformers class 1

33741 000
current transformer 80 A / 5 A
size CT3
2,5 VA / class 1
size 00
More

33742 000
current transformer 150 A / 5 A
size CT3
2.5 VA / class 1
size 00
More

33744 000
current transformer 150 A / 5 A
size CT5
1.5 VA / class 1
size 1 - 3
More

current transformers class 0.5

33749 000
current transformer 100 A / 5 A
size CT3
1.5 VA / class 0.5
size 00
More

33751 000
current transformer 150 A / 5 A
size CT3
2.5 VA / class 0.5
size 00
More

33750 000
current transformer 100 A / 5 A, with decl. of conformity
size CT3
1.5 VA / class 0.5
size 00
More

33752 000
current transformer 150 A / 5 A, with decl. of conformity
size CT3
2.5 VA / class 0.5
size 00
More
