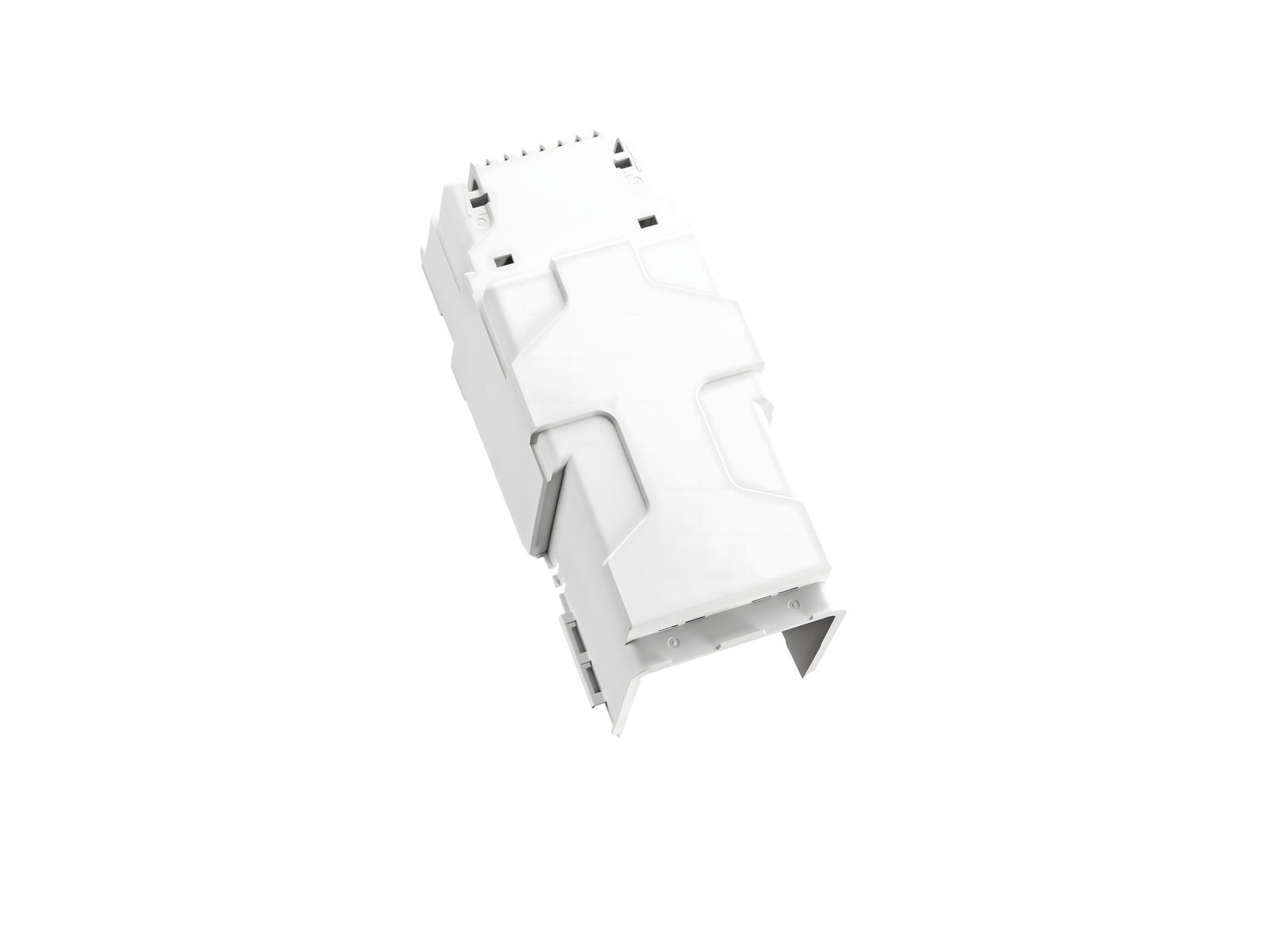

cover cap incl. rear touch protection cover (01437)

The picture may show a similar product.

Description

Part No.: 01437000A

cover cap incl. rear touch protection cover

for connection modules 185Power

for use with CrossLink®185 touch-safe protection cover modules

System

185Power

Product group 07
Subgroup 36
pack size 1
EAN 4021267014377
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002848

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: C185-B

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
W x H x D: 105 x 246 x 100
weight: 28.0 kg/100
poles: 1-pole

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Downloads

Usage

01443000A
CRITO®185Power
connection module
for 4 cable lugs M12
without cover
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

01441000A
CRITO®185Power
connection module
for direct cable connection, with 2 box terminals 300 mm²
without cover
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

01442000A
CRITO®185Power
connection module
for lam. Cu max. 2x 80 x 10
without cover
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
