Part No.: 33311 000

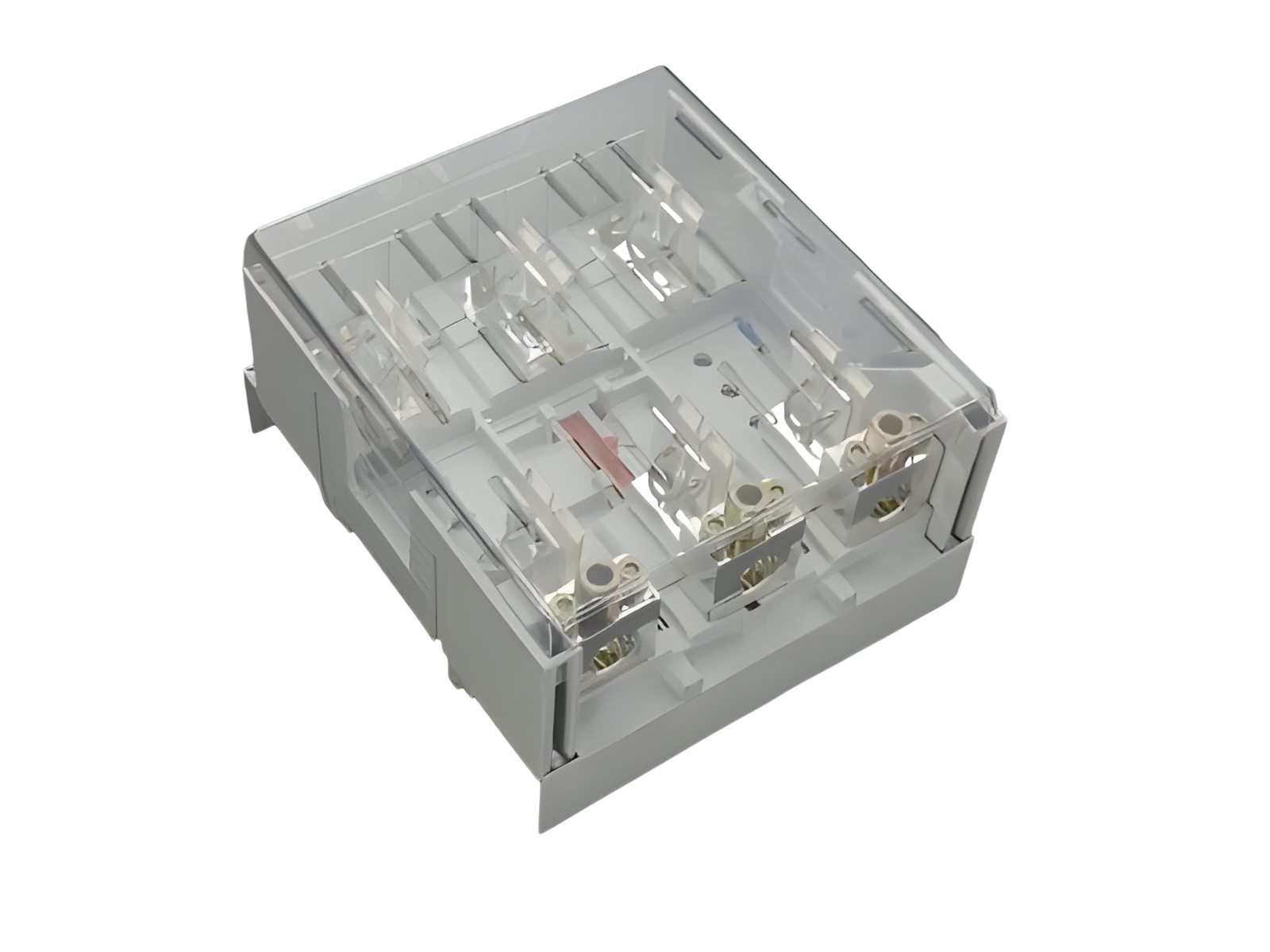

QUADRON 60Classic
bus mounted fuse holder Class J
for fuse links Class J 225 - 400 A (54x181)
3P, with box terminal
connection top or bottom
for busbars 30 x 10 and section busbars
System
60Classic
| Product group | 16 |
| Subgroup | 33 |
| pack size | 1 |
| EAN | 4021267333119 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002705 |
| ETIM 8.0 | EC002705 |
| ETIM 10.0 | EC002705 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
Approvals
CSA , UL
for UL feeder circuits >250V
type number: JC400B
EAC Type: AJC
UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com
UL file 2: E123577, UL category+ (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
| for fuse links size: | Class J 400 A |
| fuse links acc. to standard: | UL 248-8 |
| permitted power dissipation of the fuse-link: | 38 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 30,0 W.
(The power dissipation at full load would be 46,8 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -40°C |
| Details UL | |
| Standards | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 400 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 65 kA |
| Mechanical data | |
| W x H x D: | 256 x 285 x 122 |
| weight: | 690,0 kg/100 |
| poles: | 3-pole |
| for busbars: | 30 x 10 and section busbars |
| Terminal points | |
| Buchsenklemme | |
| screw drive: | S10 |
| wire stripping: | 33 mm |
| Md min.: | 38,0 Nm |
| Md max.: | 38,0 Nm |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 4 |
| max. cross-section UL: | MCM 600 |
| torque (UL): | 336 lb-in |
| for wires UL: | Cu 75°C |
| Material properties | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
|
Shock protection through push-on covers. |
|
| permitted power dissipation of the fuse-link: | 38 W |
| for UL feeder circuits >250V | |
03224
000A
fuse link 250 A
-Mersen-
600 V AC, fast acting
Class J, 54x181
More
03225
000A
fuse link 300 A
-Mersen-
600 V AC, fast acting
Class J, 54x181
More
03226
000A
fuse link 350 A
-Mersen-
600 V AC, fast acting
Class J, 54x181
More
03227
000A
fuse link 400 A
-Mersen-
600 V AC, fast acting
Class J, 54x181
More
03238
000
fuse link 250 A
-Mersen-
600 V AC, time delay
Class J, 54x181
More
03239
000
fuse link 300 A
-Mersen-
600 V AC, time delay
Class J, 54x181
More
03240
000
fuse link 350 A
-Mersen-
600 V AC, time delay
Class J, 54x181
More
03241
000
fuse link 400 A
-Mersen-
600 V AC, time delay
Class J, 54x181
More
