Part No.: 33097 000

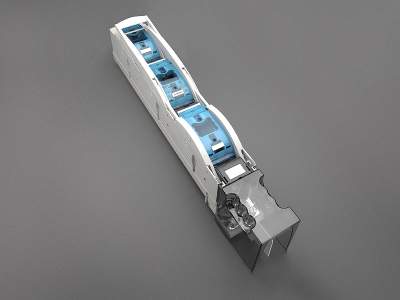

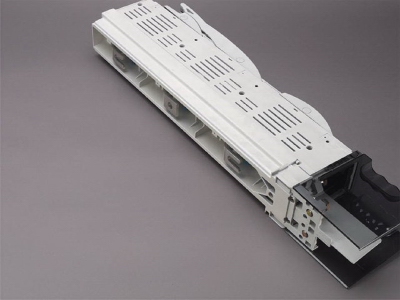

in-line fuse switch-disconnector 250 A
screw M10, 3-pole switching
size 1
no longer available; Follower: 33701
Advantages of the product
Self-closing inspection holes are available in the cover.
Strips are equipped with arc chambers.
Cover can be locked when closed.
| Product group | 12 |
| Subgroup | 53 |
| pack size | 1 |
| EAN | 4021267330972 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , CCC
type number: SLS1
CCC certificate: 2004010302117259
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (500V) AC-22B (690 V) AC-21B (690V) |
| Utilisation category DC (IEC 60947-3) : | DC-Angaben: 2 Strombahnen (L1,L3) in Reihe DC-20B (440V) |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 19.2 W.
(The power dissipation at full load would be 30.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Mechanical data | |
| W x H x D: | 99 x 760 x 195 |
| weight: | 600.0 kg/100 |
| poles: | 3-pole |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled drilling with terminal clamp

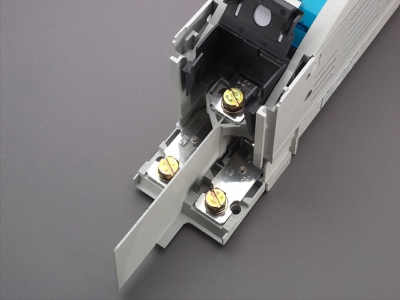

connection:
screw connection M10 / SW17, 30 - 35Nm torque
| Terminal points | |
|
screw M10 : |
|
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33164
000
clamp connector for Cu cables
120 - 240 mm²
for: QCB-NH2, LTS-F 400, LTS 630
