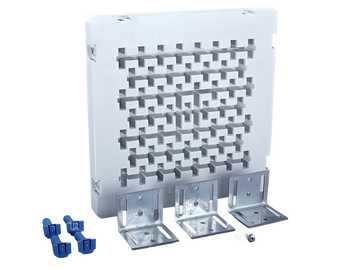

The picture may show a similar product.
Part No.: 35001000
busbar support, 3-pole, centre
for busbars 30 x 10, double-T and triple-T section
System
centre feed unit
| Product group | 11 |
| Subgroup | 15 |
| pack size | 1 |
| EAN | 4021267350017 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: Z1140-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 30 x 300 x 300 |
| weight: | 458.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 30 x 10, double-T and triple-T section |
|
Reference |
The scope of delivery includes fastening brackets, fastening screws and holders for covers. |
| for UL feeder circuits >250V | |
