shock protection in two parts (03794)

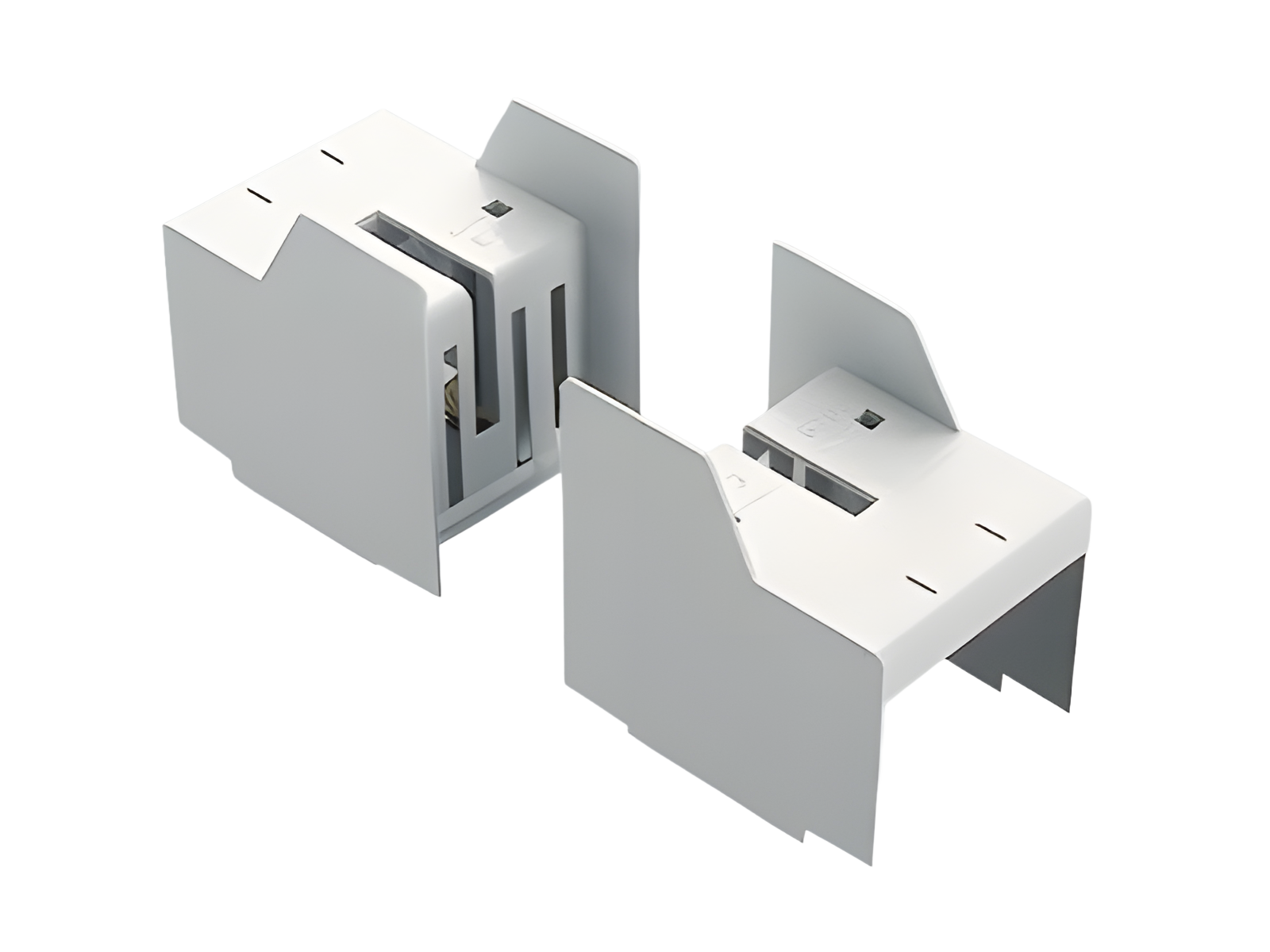

The picture may show a similar product.

Description

Part No.: 03794000

shock protection in two parts

for NH fuse-base

size 3

System

100Energy

Product group 10
Subgroup 66
pack size 3
EAN 4021267037949
ECLASS 6.1 27149217
ECLASS 7.1 27149217
ETIM 4.0 EC001660
ETIM 5.0 EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Mechanical data
W x H x D: 80 x 198 x 133
weight: 21.0 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD symbol 2D DXF

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03790000
NH busbar mounted fuse base, 630 A
screw, screw-on on bar
size 3 / 1P
More
