pilot switch (33917)

The picture may show a similar product.

Description

Part No.: 33917000

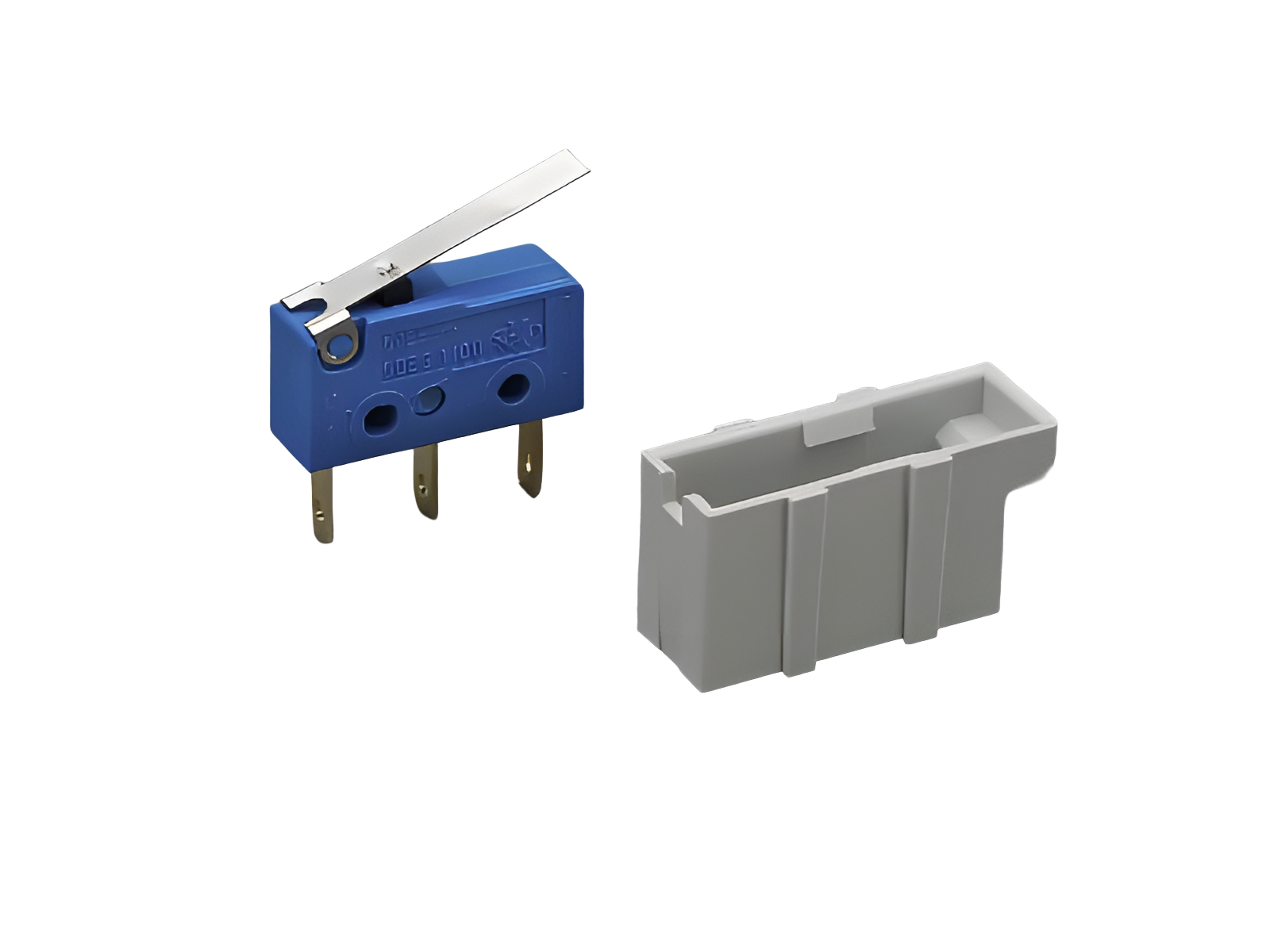

pilot switch

changeover 250 V AC / 5 A, 30 V DC / 4 A

QUADRON®60Classic, QUADRON®Panel size 1

System

60Classic

Product group 09
Subgroup 51
pack size 1
EAN 4021267339173
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 1.3 kg/100

connection for flat plug DIN 46244-A, 2.8 x 0.5 mm

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33393000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
box terminal
More

33600000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33330000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electronic fuse monitoring
More

33149000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33201000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
More

33160000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33325000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33601000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
