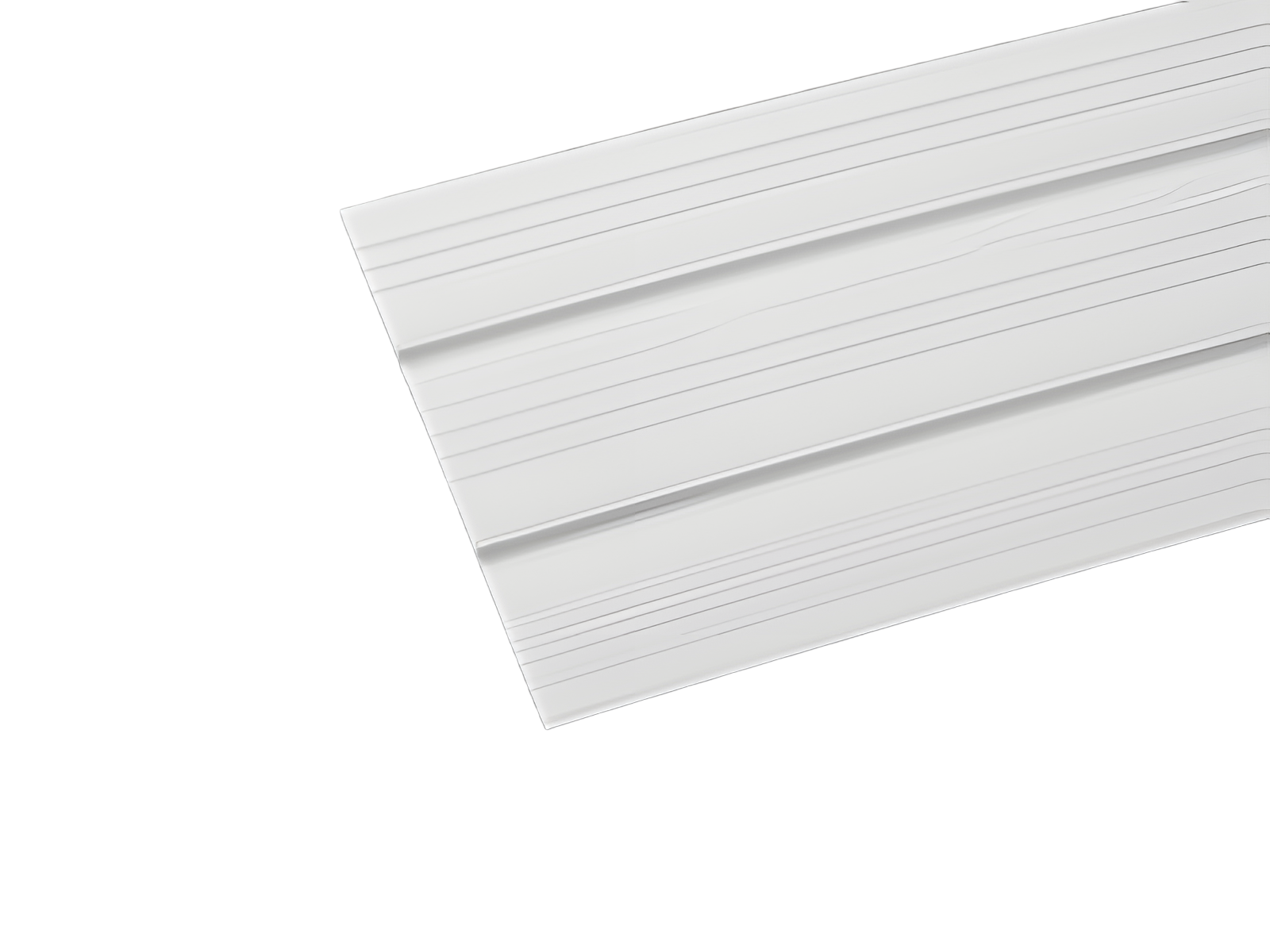

base plate (01371)

The picture may show a similar product.

Description

Part No.: 01371000

base plate

700 x 160

System

30Compact 3P, 30Compact 5P

Product group 06
Subgroup 27
pack size 2
EAN 4021267013714
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 700 x 160 x 4
weight: 26.7 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01272000
busbar support 3 phases + N + E, with end cover
for busbar 3-pole 12 x 5 and 12 x 10
for busbars 5-pole 12 x 5 and 12 x 10, N + PE 12 x 5
