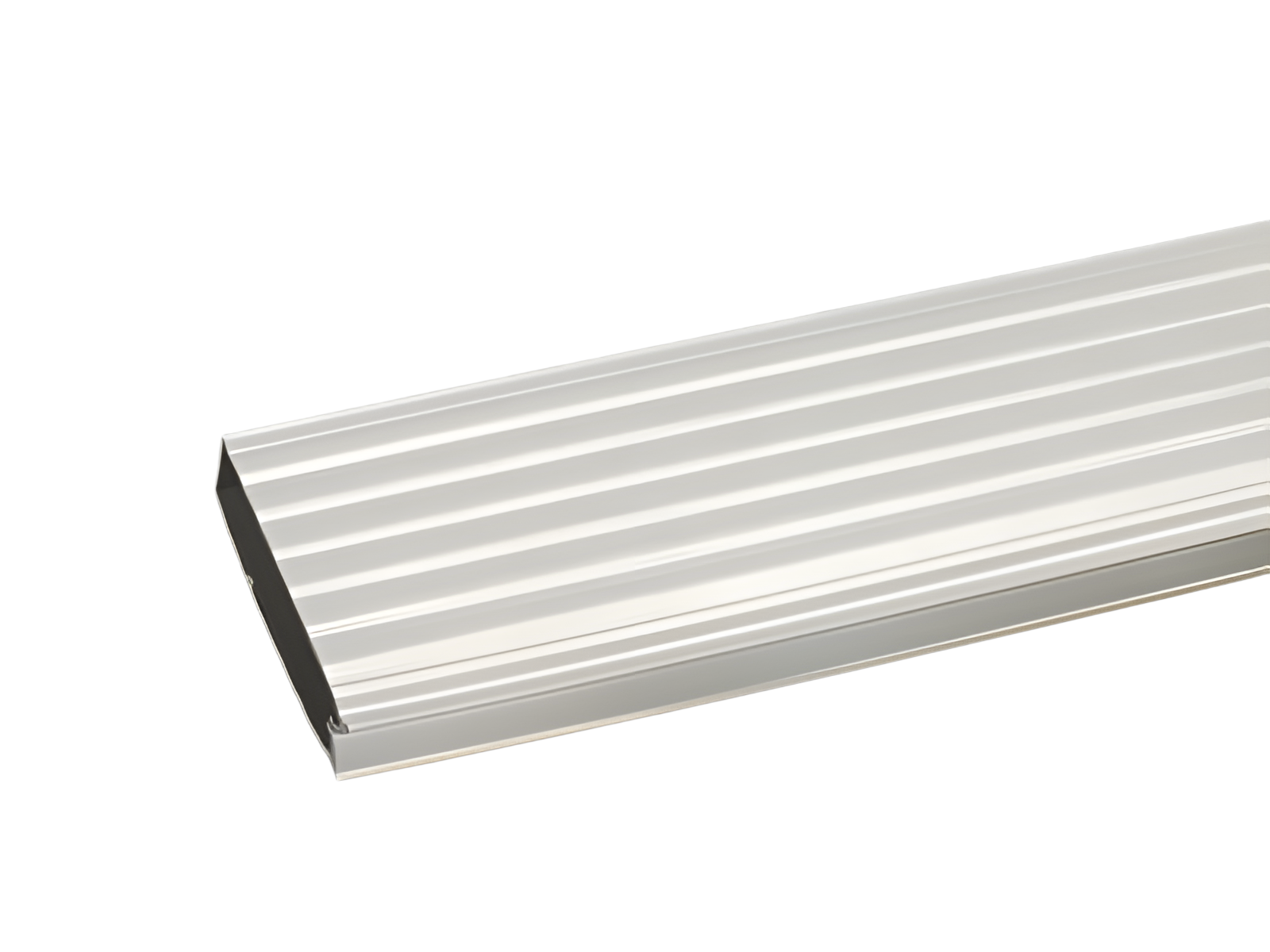

busbar cover (01251)

The picture may show a similar product.

Description

Part No.: 01251000

busbar cover

for 40 - 60 x 10 busbars, 1m long

touch protection cover

System

185Power, 100Energy

Product group 06
Subgroup 27
pack size 5
EAN 4021267012519
catalog page 2020 : 4.1
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002270
ETIM 5.0 EC002270

Approvals

Standards

IEC 61439-1:2011

Approvals

EAC

EAC Type: CO-S

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011
Electrical data
short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
Mechanical data
W x H x D: 1000 x 13 x 70
weight: 17.6 kg/100

Links

Downloads

Usage

01627000
busbar 50 x 10
length 2.40 m, tinned
More

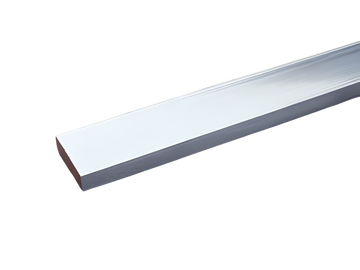

01626000
busbar 40 x 10
length 2.40 m, tinned
More

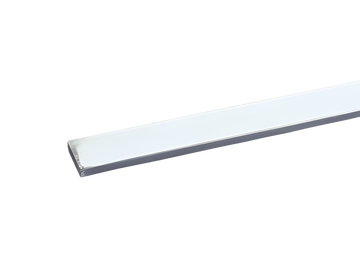

01628000
busbar 60 x 10
length 2.40 m, tinned
More
