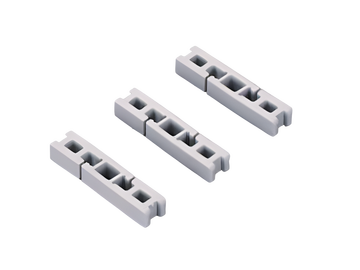

The picture may show a similar product.

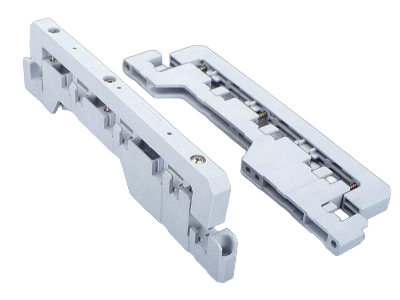

Part No.: 01138000
busbar support 3 phases + N + E
for busbars 3x (12, 20, 30 x 10) and 2x (12, 20, 25 x 5, 10)
| Product group | 06 |
| Subgroup | 09 |
| pack size | 30 |
| EAN | 4021267011383 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| short-circuit capacity : Ipk = min. 35 kA (2 busbar supports in 250 mm distance) |
| Mechanical data | |
| W x H x D: | 14 x 264 x 67 |
| weight: | 16.7 kg/100 |
| poles: | 3-pole |
| for busbars: | 3x (12, 20, 30 x 10) and 2x (12, 20, 25 x 5, 10) |
| The insulation performance of the article depends on the installation conditions. | |
|
Reference |
Drehmoment für die Schrauben des Schienenträgerdeckels Md = 3Nm |
