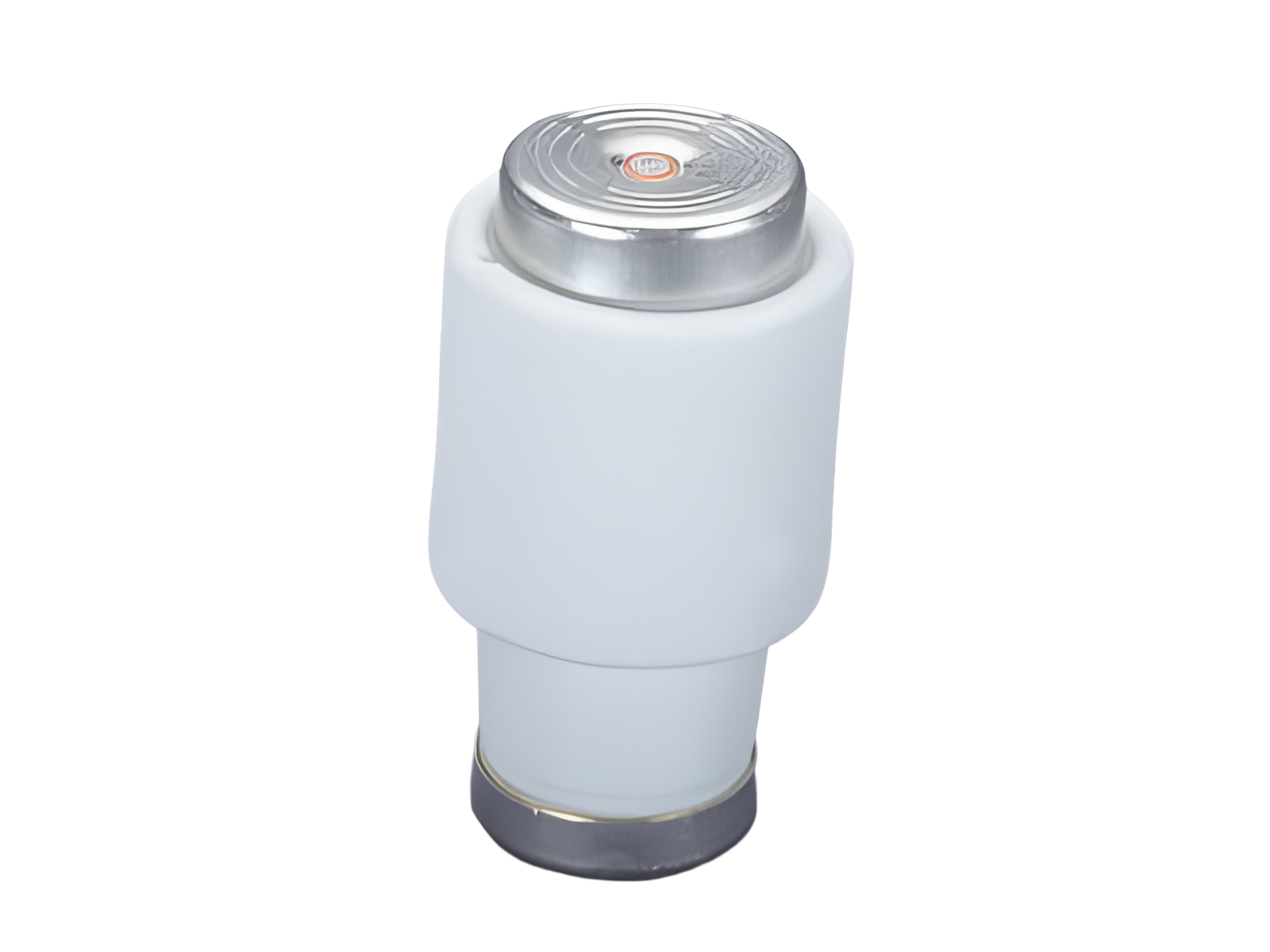

The picture may show a similar product.
Part No.: 01679000
D-fuse link 63 A
500 V, gG
E 33
| Product group | 22 |
| Subgroup | 02 |
| pack size | 5 |
| EAN | 4021267016791 |
| ECLASS 6.1 | 27142004 |
| ECLASS 7.1 | 27142004 |
| ETIM 4.0 | EC000099 |
| ETIM 5.0 | EC000099 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
| size: | DIII / E 33 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| Rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 500 V |
| rated voltage (IEC) DC: | 500 V |
| operation class | gG |
| rated short-circuit breaking capacity AC | 50 kA |
| rated short-circuit breaking capacity DC | 8 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 4.5 W.
(The power dissipation at full load would be 7.1 W.)
| Mechanical data | |
| weight: | 5.2 kg/100 |
