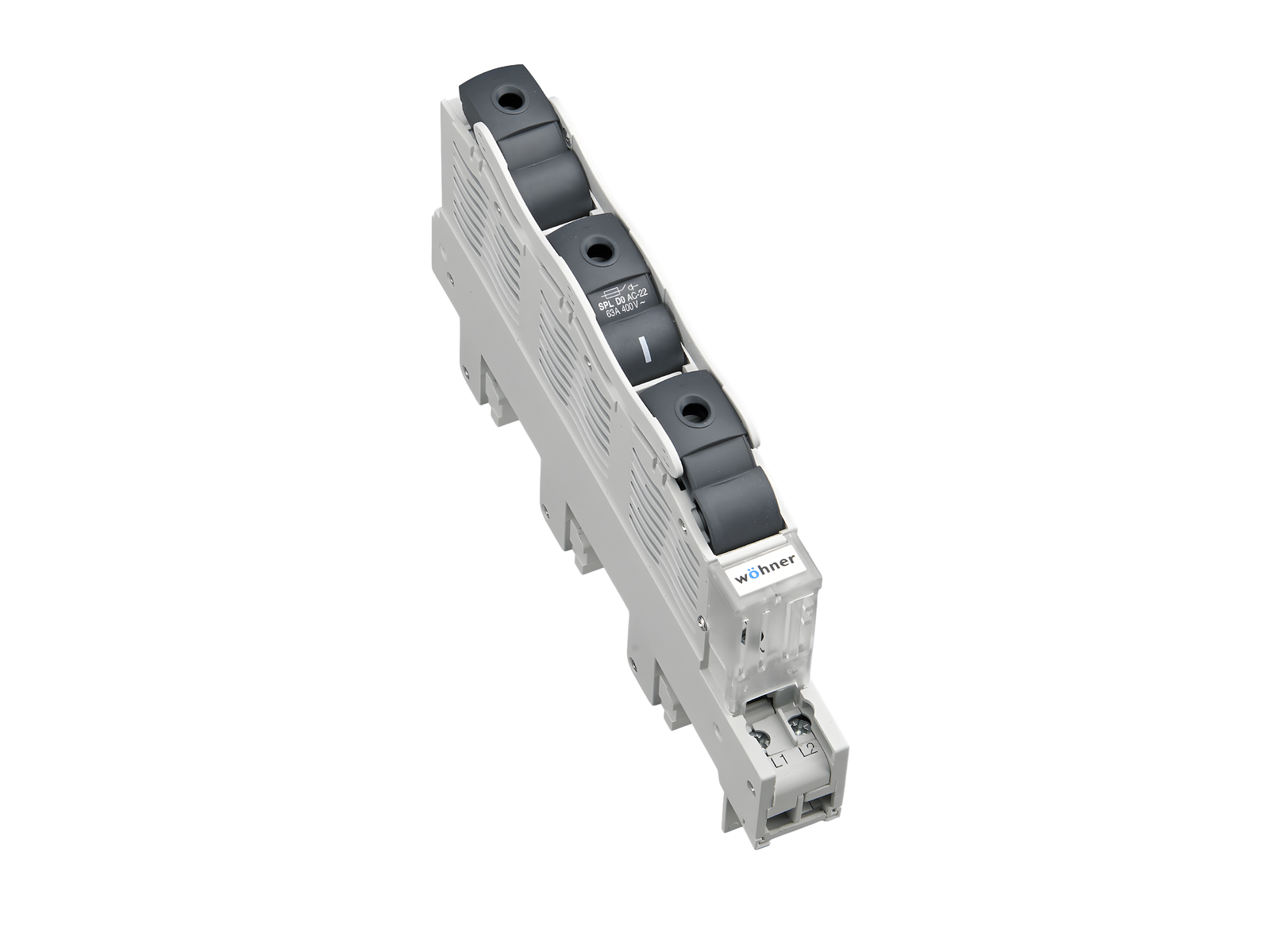

Part No.: 31158000
SECUR®60Classic PowerLiner
D0 busbar mounted switch-disconnector-fuse
for fuse links D01 and D02
E18 / 63 A / 3P
connection bottom
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
3-pole / 1-pole switching
System
60Classic
| Product group | 01 |
| Subgroup | 42 |
| pack size | 1 |
| EAN | 4021267311582 |
| ECLASS 6.1 | 27142110 |
| ECLASS 7.1 | 27142110 |
| ETIM 4.0 | EC000277 |
| ETIM 5.0 | EC000277 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
VDE , CCC
type number: SPL-D0
CCC certificate: 2018010302128773
| for fuse links size: | D0 |
| fuse links acc. to standard: | IEC / HD 60269-3 |
| permitted power dissipation of the fuse-link: | 5.5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 110 V |
| rated isolation voltage Ui AC: | 500 V |
| rated isolation voltage Ui DC: | 250 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23A (400 V) |
| Utilisation category DC (IEC 60947-3) : | DC-21B (48V) 1 pole DC-21B (110V) 2 poles |
| cond. short-circuit current with fuses (AC): | 50 kA / 400 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6.7 W.
(The power dissipation at full load would be 10.5 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3 utilisation category as per VDE 0638: AC22 |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanical data | |
| W x H x D: | 27 x 220 x 100 |
| weight: | 75.9 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| front degree of protection: | IP20 |
Type of fastening: patented click mechanism
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 12 mm |
| min. cross-section: | 1.5 mm² |
| max. cross-section: | 16 mm² |
| Md min.: | 2.0 Nm |
| Md max.: | 2.5 Nm |
| Not suitable for aluminium cables ! | |
|
frame terminal: |
|
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
|
Reference |
SECUR®PowerLiner can be fitted with D0 adapter sleeves. With reducer insert (Part no. 31902) and adapter sleeves, also suitable for D01 fuse links. The use of the side module part no. 31901 is recommended for continuous loads of 35 A or greater. |
| permitted power dissipation of the fuse-link: | 5.5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
