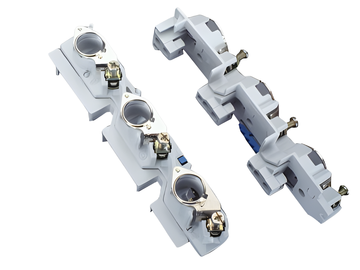

01498000

CUSTO^®60Classic
D0-fuse base, busbar mounted, 36mm
with distance strip
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

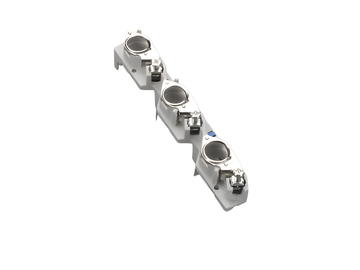

01647000

CUSTO^®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31935000

CUSTO^®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 63 A
touch protected
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

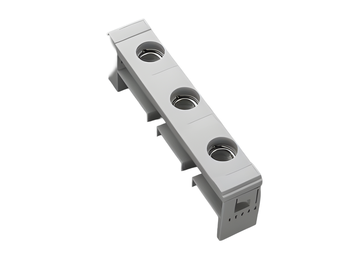

31936000

CUSTO^®60Classic
D0-fuse base, busbar mounted, 36mm
E 18 / 63 A
touch protected
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
