for UL feeder circuits >250V

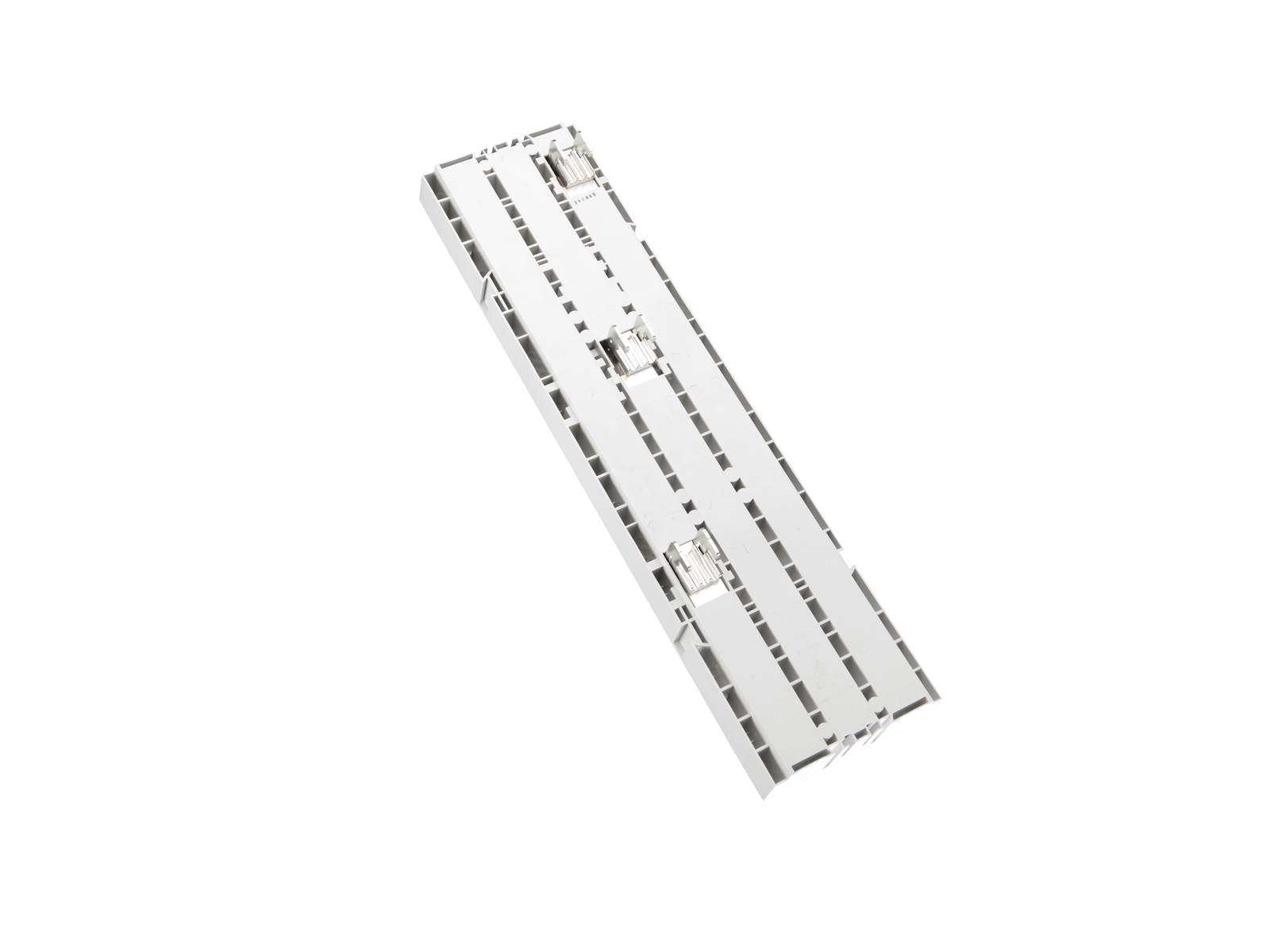

busbar adapter 630 A (32741)

The picture may show a similar product.

Description

Part No.: 32741000A

EQUES®185Power

busbar adapter 630 A

universal version up to 630 A, phase distance 43-46 mm

connection at top, CrossLink® clamp connection

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Advantages of the product

Device can be mounted covering the busbar support (in systems with and without CrossLink® touch-safe protection cover)

Product group 05
Subgroup 48
pack size 1
EAN 4021267327415
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: EQ185-A630-C

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 630 A
rated voltage (IEC) AC: 690 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 12 kV
rated peak withstand current  Ipk max.: 63 kA
rated short-time withstand current Icw (1.0 s) max.: 30 kA

the following required reductions have been determined by tests:
with MCCB ABB Tmax T5, XT5
with MCCB Allen-Bradley 140G-K
with MCCB Eaton NZM3
with MCCB Schneider Electric NSX630
with MCCB Schrack MC3
with MCCB Siemens 3VA14, 3VM64
with MCCB Siemens 3VA23, 3VA24
with MCCB Siemens 3VA64

Power dissipation of the adapter:
at 500A => 58W
at 530A => 65W
at 565A => 73W
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 630 A
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 1000 V
SCCR unprotected max.: 22 kA
3 cycles (without OPD) @ 600 V AC
Mechanical data
W x H x D: 150 x 585 x 55
weight: 590.0 kg/100
poles: 3-pole
for busbars: 30, 40, 60, 80, 100, 120 x 10
CT can be integrated in the device: ja

Application notes

Reference

ready for current transformer
short-circuit withstandability: the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

37212000A
current transformer 200 A / 5 A
2.5 VA / class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37213000A
current transformer 250 A / 5 A
2.5 VA / class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37214000A
current transformer 400 A / 5 A
2.5 VA / class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37215000A
current transformer 500 A / 5 A
2.5 VA / class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37216000A
current transformer 600 A / 5 A
2.5 VA / class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37219000A
current transformer 200 A / 5 A
1.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37220000A
current transformer 250 A / 5 A
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37221000A
current transformer 400 A / 5 A
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37222000A
current transformer 500 A / 5 A
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37223000A
current transformer 600 A / 5 A
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37900000A
fixing clip for current transformers / measuring transformers
for mounting at busbars and in adapters 630 A
for busbars 25-30 x 5 and 12-30 x 10
NEW
More

37232000A
current transformer 200 A / 5 A, with decl. of conformity
1.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37233000A
current transformer 250 A / 5 A, with decl. of conformity
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37234000A
current transformer 400 A / 5 A, with decl. of conformity
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37235000A
current transformer 500 A / 5 A, with decl. of conformity
2.5 VA / class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37236000A
current transformer 250 A / 5 A, with decl. of conformity
1.5 VA / class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37237000A
current transformer 400 A / 5 A, with decl. of conformity
2.5 VA / class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37238000A
current transformer 500 A / 5 A, with decl. of conformity
2.5 VA / class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
More

37307000A
measuring transformer 600 A / 333 mV
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37296000A
measuring transformer 200 A / 333 mV
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37304000A
measuring transformer 250 A / 333 mV
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37289000A
measuring transformer 200 A / 333 mV
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37298000A
measuring transformer 400 A / 333 mV
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37305000A
measuring transformer 400 A / 333 mV
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37293000A
measuring transformer 600 A / 333 mV
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37290000A
measuring transformer 250 A / 333 mV
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37303000A
measuring transformer 200 A / 333 mV
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37292000A
measuring transformer 500 A / 333 mV
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37306000A
measuring transformer 500 A / 333 mV
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37297000A
measuring transformer 250 A / 333 mV
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37291000A
measuring transformer 400 A / 333 mV
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37299000A
measuring transformer 500 A / 333 mV
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More

37300000A
measuring transformer 600 A / 333 mV
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
NEW
More
