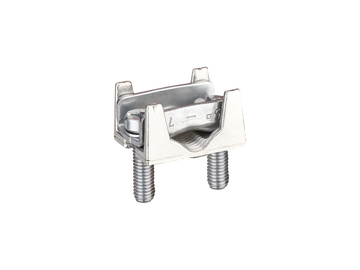

The picture may show a similar product.
Part No.: 33705 000A
QUADRON 185Power
NH in-line fuse base 160 A
Size 00, open design
screw M8, flat version
for busbars 30, 40, 60, 80, 100, 120 x 10
System
185Power
| Product group | 12 |
| Subgroup | 32 |
| pack size | 1 |
| EAN | 4021267337056 |
| ECLASS 14.0 | 27142106 |
| ETIM 5.0 | EC001046 |
| ETIM 8.0 | EC001046 |
| ETIM 10.0 | EC001046 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
type number: QU185-00-O
EAC Type: NH
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated surge voltage Uimp : | 12 kV |
| short-circuit strength when protected by fuses: | 50 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| min. permitted operation temperature | -40°C |
| max. permitted operation temperature | 55°C |
| min. permitted temperature for transport and storage | -40°C |
| Mechanical data | |
| W x H x D: | 50 x 670 x 129 |
| weight: | 190.0 kg/100 |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| Terminal points | |
| screw connection | |
| M8 | |
| Md min.: | 12.0 Nm |
| Md max.: | 14.0 Nm |
| Material properties | |
| halogen-free: | No |
| permitted power dissipation of the fuse-link: | 12 W |
