NH in-line fuse base 160 A (33705)

The picture may show a similar product.

Description

Part No.: 33705 000A

QUADRON^®185Power

NH in-line fuse base 160 A

Size NH 00

Size 00, open design

screw M8, flat version

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group	12
Subgroup	32

pack size	1
EAN	4021267337056

ECLASS 6.1	27142106
ECLASS 7.1	27142106
ETIM 4.0	EC001046
ETIM 5.0	EC001046

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

type number: QU185-00-O

Technical data

for fuse links size:	NH 000, NH 00
fuse links acc. to standard:	IEC / HD 60269-2
permitted power dissipation of the fuse-link:	12 W

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016

Electrical data IEC
rated current (IEC):	160 A
rated voltage (IEC) AC:	690 V

rated surge voltage U_imp :

12 kV

short-circuit strength when protected by fuses:

50 kA

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:

1000 V

Mechanical data
W x H x D:	50 x 670 x 129
weight:	190.0 kg/100
for busbars:	30, 40, 60, 80, 100, 120 x 10

Terminal points

screw M8 : Md 12 - 14 Nm

Application notes


permitted power dissipation of the fuse-link:	12 W

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

accessories for mounting

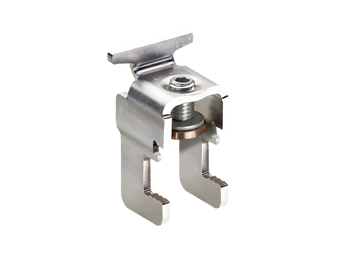

33739 000A
terminal clamp
for busbar systems without system covers
size 00
More

33728 000A
double adapter
for 2 devices size NH 00
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

connection accessories

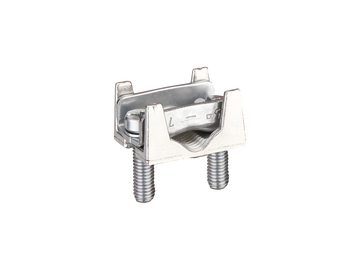

33734 000A
wedge clamp terminal
for Cu 10 - 95 mm²
size 00
More

covers

33725 000A
terminal compartment cover, flat version, connection bottom
for 33704, 33705, 33719, 33724, 33773, 33774, 33775
size 00
More

79448 000
grip lug cover
for NH base and 33705
NH 00
More
