hammer-head screw for TCC-profile (01379)

The picture may show a similar product.

Description

Part No.: 01379000

hammer-head screw for TCC-profile

M10 x 45

for subsequent mounting, with nut and spring washer

for busbars TCC section

System

centre feed unit

Product group 07
Subgroup 29
pack size 12
EAN 4021267013790
ECLASS 6.1 27141146
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
weight: 5.1 kg/100
for busbars: TCC section
Terminal points
screw connection
M10
Terminal space: M10 x 45
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !

Reference

Tightening torque 30 Nm

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01610000

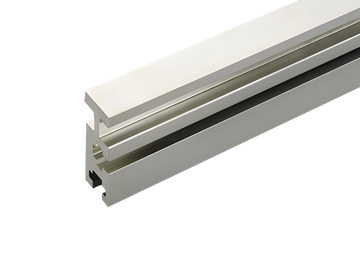

TCC section busbar 1600 mm²
length 2.40 m, tinned
