for UL feeder circuits >250V

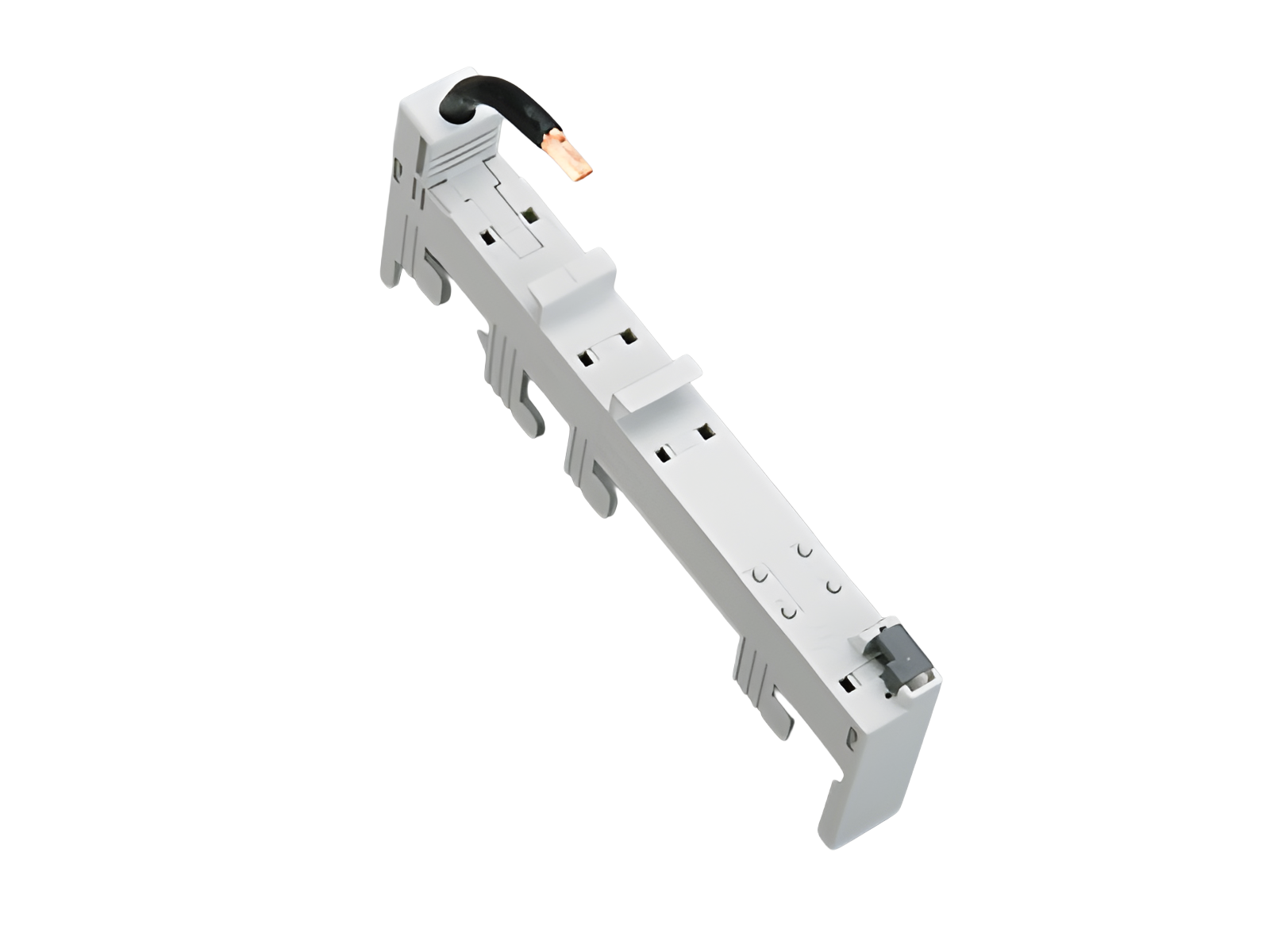

The picture may show a similar product.
Part No.: 32630000
EQUES®30Compact
busbar adapter 1-pole, 63 A
1 fixed mounting rail
18 x 160 / 10 mm²
for busbars 12 x 5
System
30Compact 5P
| Product group | 05 |
| Subgroup | 20 |
| pack size | 12 |
| EAN | 4021267326302 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1.6 W.
(The power dissipation at full load would be 2.5 W.)
| Mechanical data | |
| W x H x D: | 18 x 160 x 73 |
| weight: | 6.6 kg/100 |
| poles: | 1-pole |
| for busbars: | 12 x 5 |
for circuit breakers
