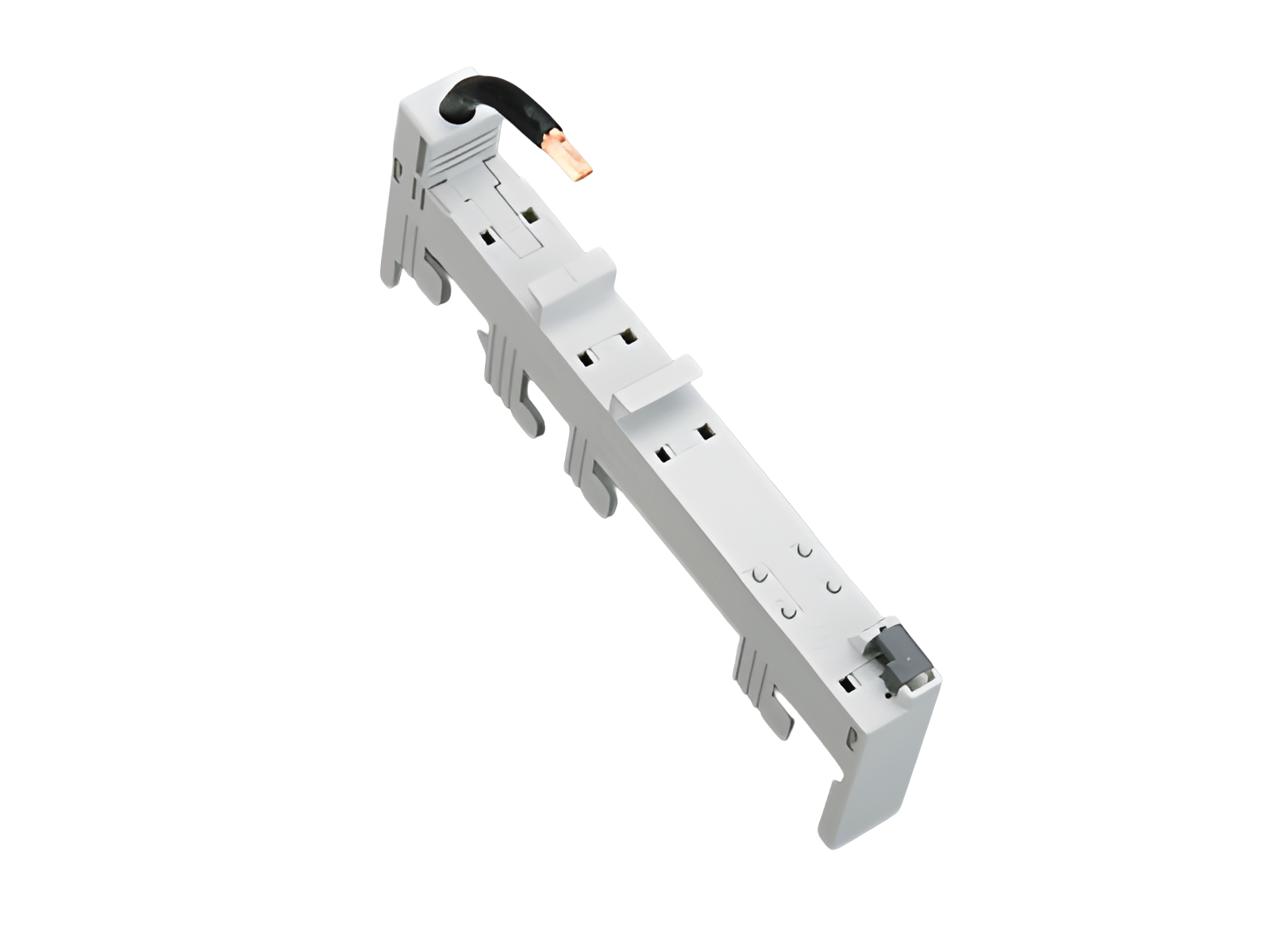

busbar adapter 1-pole, 63 A (32630)

The picture may show a similar product.

Description

Part No.: 32630000

EQUES^®30Compact

busbar adapter 1-pole, 63 A

1 fixed mounting rail

18 x 160 / 10 mm²

for busbars 12 x 5

System

30Compact 5P

Product group	05
Subgroup	20

pack size	12
EAN	4021267326302

ECLASS 6.1	27370304
ECLASS 7.1	27370304
ETIM 4.0	EC001531
ETIM 5.0	EC001531

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Electrical data IEC
rated current (IEC):	63 A
rated voltage (IEC) AC:	690 V

rated isolation voltage U_i AC:	800 V
rated surge voltage U_imp :	6 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1.6 W.

(The power dissipation at full load would be 2.5 W.)

Mechanical data
W x H x D:	18 x 160 x 73
weight:	6.6 kg/100
poles:	1-pole
for busbars:	12 x 5

for circuit breakers

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

31390000
set of connectors
connector to create multipole adapters (100 pieces)
for 50 connections
More

32631000
busbar component support 1-pole
1 fixed mounting rail
18 x 160, without electrical connection
for busbars: 12 x 5
More

32632000
module N
terminal 16 mm²
9 x 160
for busbars: 12 x 5
More

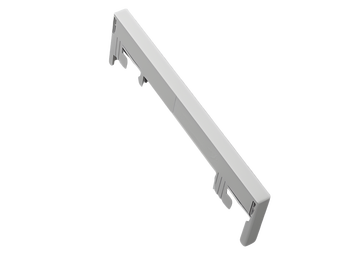

32633000
side-mounted module
for single pole busbar adapters
9 x 160
More

32634000
module PE
terminal 16 mm²
9 x 160
for busbars: 12 x 5
More
