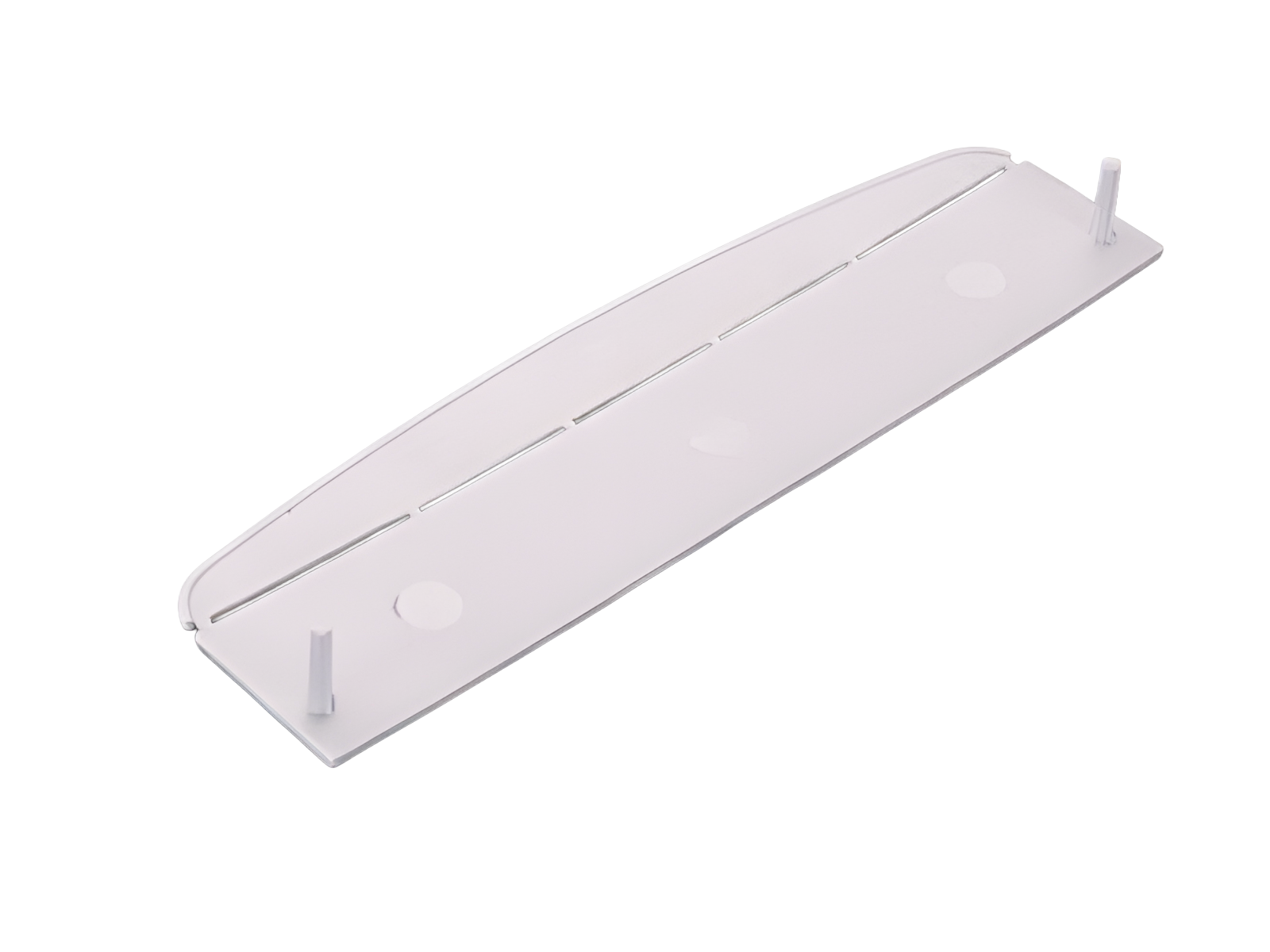

barrier for handle (33155)

The picture may show a similar product.

Description

Part No.: 33155000

barrier for handle

for NH fuse-switch disconnector size 1-3

for closing of handle area from rear

System

60Classic

Product group 09
Subgroup 51
pack size 10
EAN 4021267331559
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 2.2 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33603000
QUADRON®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33021000AC
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
NEW
More

33054000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection bottom
screw M10, bottom connection
for busbars: 12 - 30 x 5 - 12 and section busbars
NEW
More

33049000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection top
screw M10, top connection
for busbars: 12 - 30 x 5 - 12 and section busbars
NEW
More

33018000AC
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
More

33003000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection top
screw M10
for busbars: 12 - 30 x 5 - 12 and section busbars
More

33004000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection bottom
screw M10
for busbars: 12 - 30 x 5 - 12 and section busbars
More

33393000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
box terminal
More

33202000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
More

33150000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33331000
QUADRON®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electronic fuse monitoring
More

33151000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electromechanical fuse monitoring
More

33149000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33330000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electronic fuse monitoring
More

33203000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
More

33201000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
More

33162000
QUADRON®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33332000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electronic fuse monitoring
More

33600000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33160000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33161000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33326000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33602000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33327000
QUADRON®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33325000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33601000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
