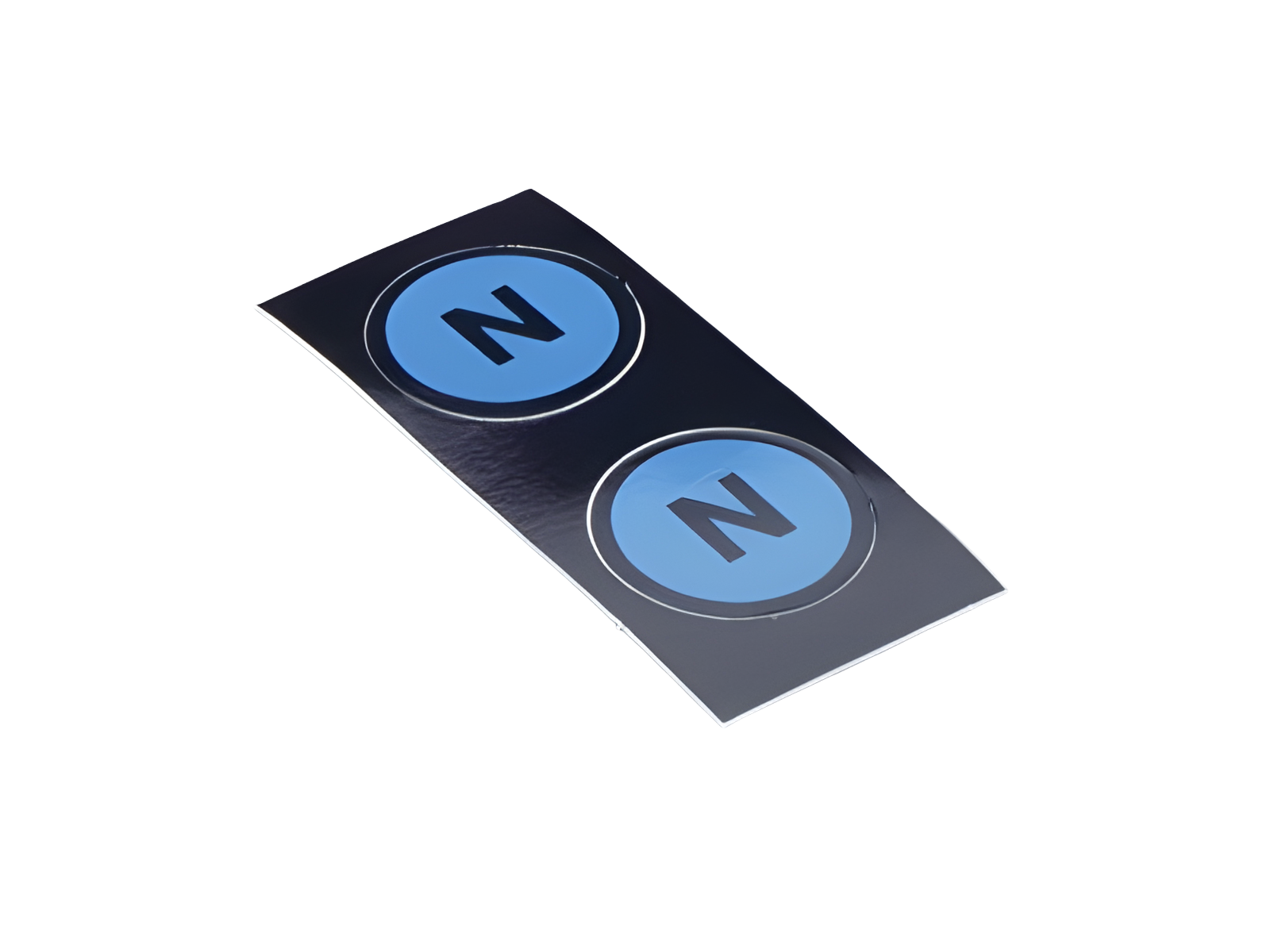

label

The picture may show a similar product.

Description

Part No.: 78443 000

label

N blue

diameter 15 mm

Product group 06
Subgroup 30
pack size 200
EAN 4021267784430
ECLASS 14.0 27149129
ETIM 5.0 EC001288
ETIM 8.0 EC001288
ETIM 10.0 EC001288

Approvals

Standards

IEC 61439-1:2020

EAC Type: AC-A

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 15 x 15 x 1
weight: 0.1 kg/100
Material properties
halogen-free: Yes

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1
