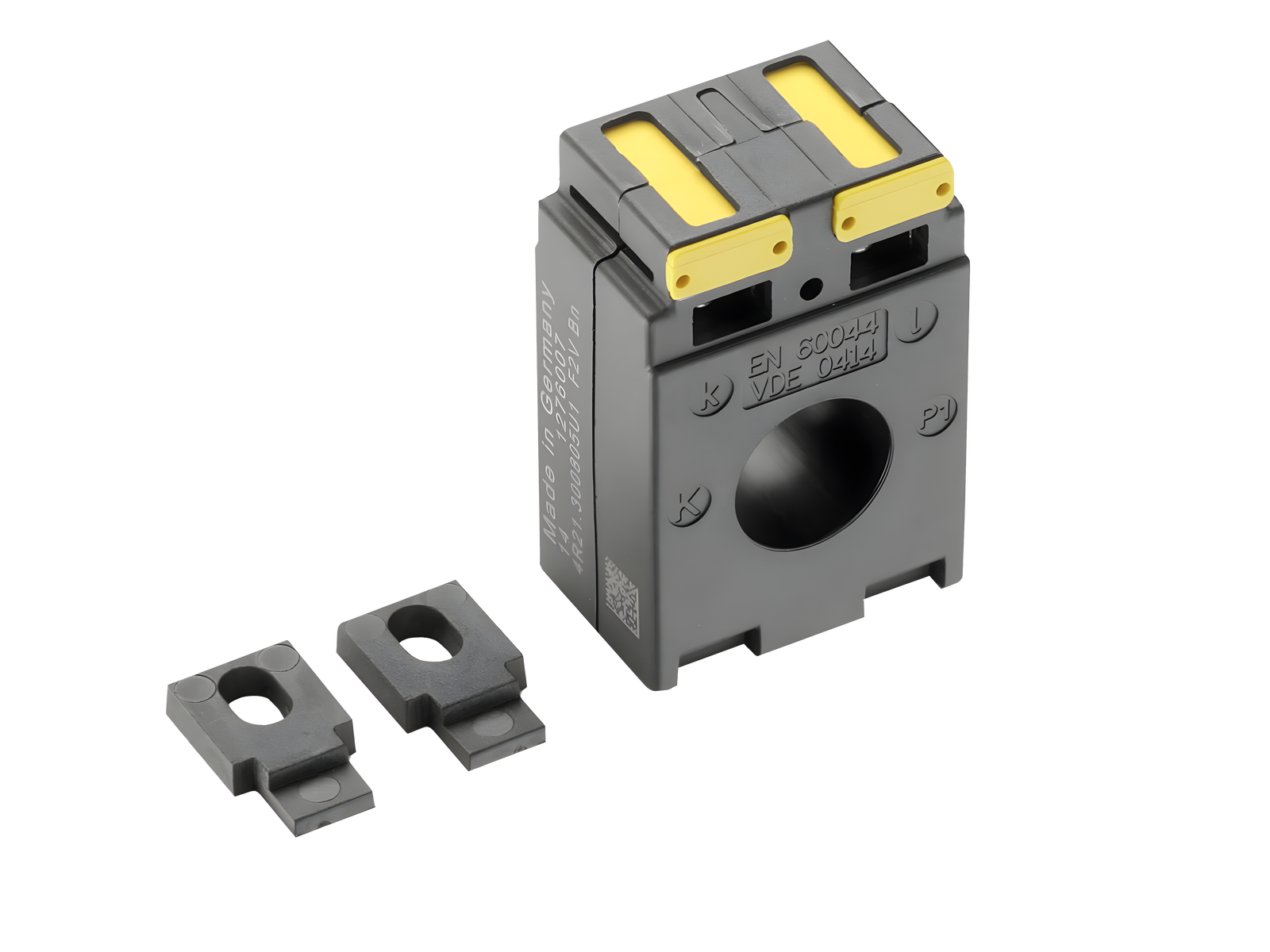

measuring transformers 150 A / 333 mV

size:

CT3

Details IEC

Standards

IEC 61869-1:2007 IEC 61869-2:2012

Electrical data IEC
prim. rated current Ipr:	150 A
sec. rated voltage:	333 mV
burden:	2 kOhm
accuracy class (current):	1
max. operation voltage Um:	720 V
therm. short-time current Ith:	9 kA
class of insulation:	E

over-current limitation factor:

FS5

Mechanical data
W x H x D:	44 x 30 x 99
weight:	14.0 kg/100

CT can be integrated in the device:	ja
CT can be integrated in the CT module:	nein

sealable:

nein

Terminal points
double terminal
min. cross-section:	2.5 mm²
max. cross-section:	4 mm²
Not suitable for aluminium cables !

Material properties
halogen-free:	Yes

Not suitable for aluminium cables !
