changeover switch 3-pole (33856)

The picture may show a similar product.

Description

Part No.: 33856000A

CAPUS®Panel

changeover switch 3-pole

box terminal 2.5 - 16 mm² / AWG 16 - 6, graphite grey handle

63 A

for mounting plate or mounting rail

NEW

System

Panel

Advantages of the product

lockable in 0-position with a padlock (max. 5 mm diameter)

Product group 14
Subgroup 31
pack size 1
EAN 4021267338565
ECLASS 6.1 27371403
ECLASS 7.1 27371403
ETIM 4.0 EC000216
ETIM 5.0 EC000216

Approvals

Standards

IEC 60947-1:2007 + A1:2010 + A2:2014 + A3:2020
IEC 60947-6-1:2021

Technical data

Details IEC
Standards
IEC 60947-1:2007 + A1:2010 + A2:2014 + A3:2020
IEC 60947-6-1:2021
Electrical data IEC
Rated current (IEC): 63 A
rated voltage (IEC) AC: 690 V
rated frequency (IEC): 50 / 60 Hz
rated isolation voltage Ui AC: 800 V
rated surge voltage Uimp : 8 kV
Utilisation category AC (IEC 60947-3) : AC-23 A (690 V / 63 A)
AC-23 A (415 V / 100 A)
AC-22 A (690 V / 100 A)
AC-21 A (690 V / 100 A)
cond. short-circuit current with fuses (AC): 10 kA
approved wth fuse links of operation class: gG
rated short-time withstand current Icw (1.0 s) max.: 1 kA
rated making capacity: 2.1 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1.5 W.

(The power dissipation at full load would be 2.4 W.)

Mechanical data
W x H x D: 72 x 81 x 80
weight: 26.5 kg/100
poles: 3-pole
Mounting: for mounting plate or mounting rail
degree of protection: IP20
Terminal points
cage clamp connection
screw drive: PZ2
wire stripping: 10 mm
min. cross-section: 2.5 mm²
max. cross-section: 16 mm²
(f + AE may not fit with max. cross-section)
Md min.: 2.0 Nm
Md max.: 2.0 Nm
Not suitable for aluminium cables !

all poles switched at the same time

Links

Article master data, overviews and prices

Current metal surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

33680000A
extension shaft, length 100 mm
for: SD1, SD2, SD3
More

33681000A
extension shaft, length 200 mm
for: SD1, SD2, SD3
More

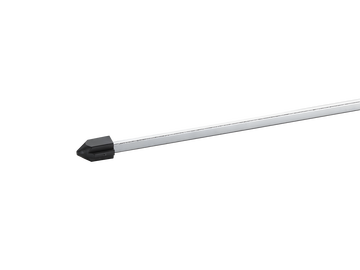

33682000A
extension shaft, length 300 mm
for: SD1, SD2, SD3
More

33692000A
pilot switch
1 n/c + 1 n/o, screw terminal
for: SD1, SD2, SD3
More

33694000A
set connection space cover 3-pole
for: SD1-3, SD1-4
More

33683000A
CAPUS®Panel
Neutral Pole for SD1-3P switch-disconnector
box terminal 2,5 - 16 mm² / AWG 16 - 6
NEW
More

33689000A
CAPUS®Panel
PE terminal for SD1-3P switch-disconnector
box terminal 2,5 - 16 mm² / AWG 16 - 6
NEW
More
