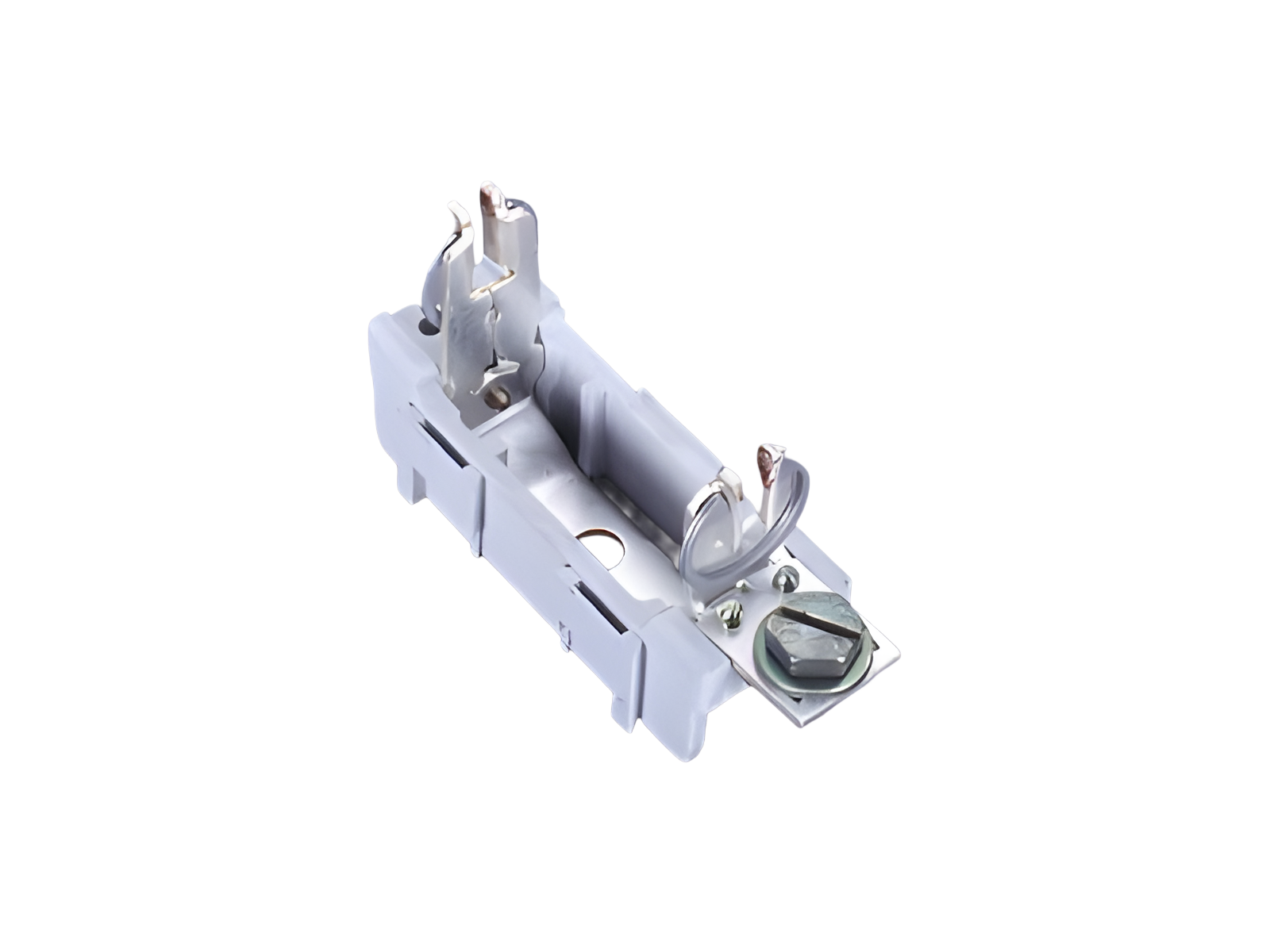

NH fuse-base 160 A (03587)

The picture may show a similar product.

Description

Part No.: 03587000

QUADRON®60Classic

NH fuse-base 160 A

screw, screw-on on bar

size 00 / 1P

System

100Energy

Product group 10
Subgroup 27
pack size 10
EAN 4021267035877
ECLASS 6.1 27142106
ECLASS 7.1 27142106
ETIM 4.0 EC000067
ETIM 5.0 EC000067

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 12 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Electrical data IEC
Rated current (IEC): 160 A
rated voltage (IEC) AC: 690 V
rated voltage (IEC) DC: 440 V
rated surge voltage Uimp : 6 kV
short-circuit strength when protected by fuses: 50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 3.0 W.

(The power dissipation at full load would be 4.7 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC: 800 V
max. permitted voltage (IEC) DC: 800 V
for fuse links IEC 60269-2 / DIN VDE 0636-201 size 00 up to 12W power dissipation
Mechanical data
W x H x D: 35 x 102 x 86
weight: 11.5 kg/100
poles: 1-pole

Type of fastening: can be screwed onto drilled busbar,
connection screw:
screw connection M8, 12 - 14Nm torque

Terminal points
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.
permitted power dissipation of the fuse-link: 12 W

Links

Downloads

Accessories

03502000
NH fuse extractor handle
without sleeve
size 000 - 3
More

03791000

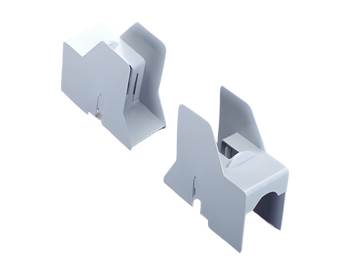

shock protection in two parts
