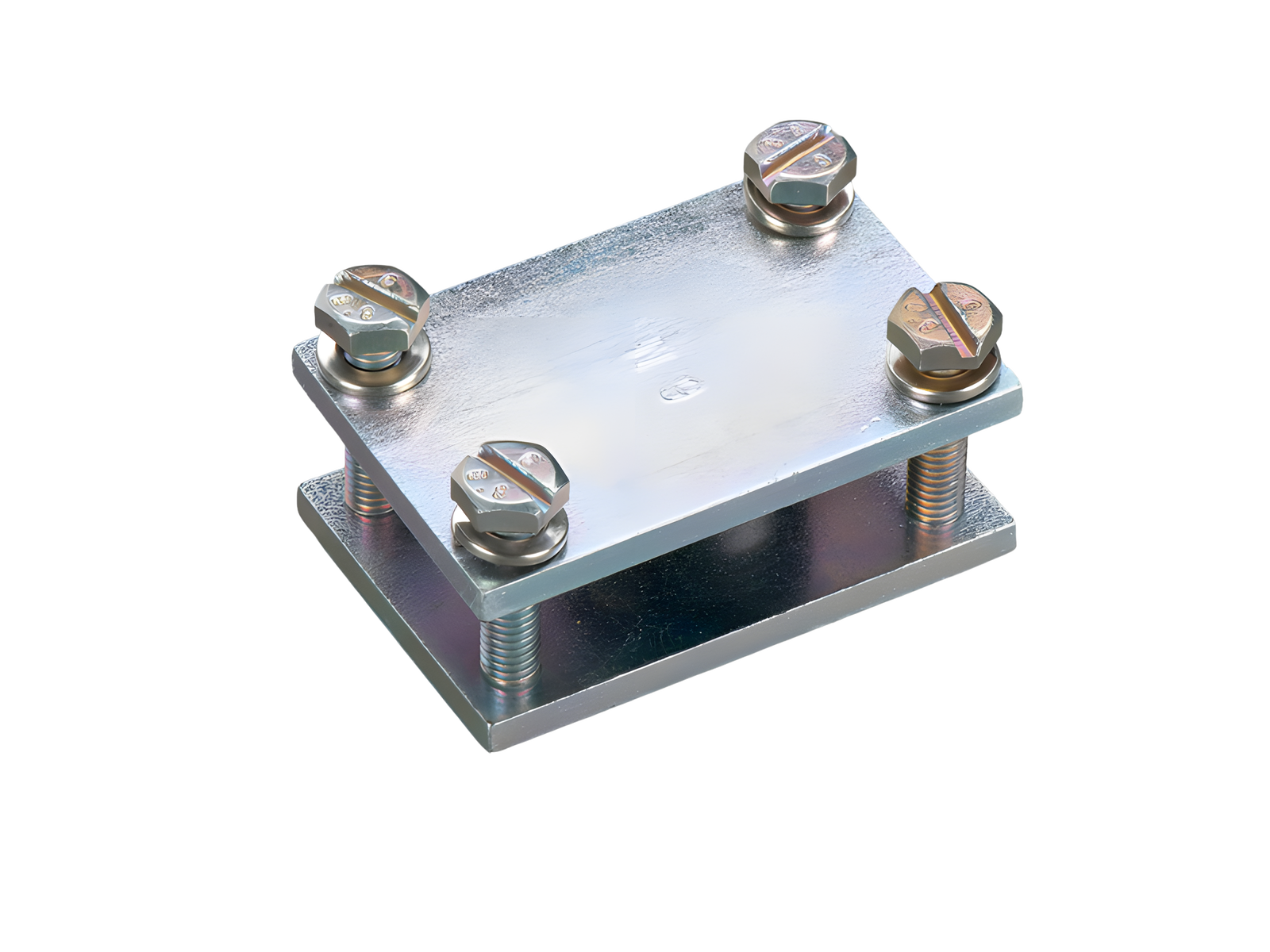

The picture may show a similar product.
Part No.: 01206 000
flat terminal
connection of busbar 40 wide with lam. Cu 20 wide
System
60Classic
| Product group | 07 |
| Subgroup | 34 |
| pack size | 10 |
| EAN | 4021267012069 |
| ECLASS 6.1 | 27400606 |
| ECLASS 7.1 | 27400606 |
| ETIM 4.0 | EC000713 |
| ETIM 5.0 | EC000713 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Mechanical data | |
| W x H x D: | 60 x 40 x 30 |
| weight: | 17.8 kg/100 |
| Terminal points | |
| Terminal space: | 40 x 20 |
|
for connection of flat busbars with solid or laminated flat conductors |
|
