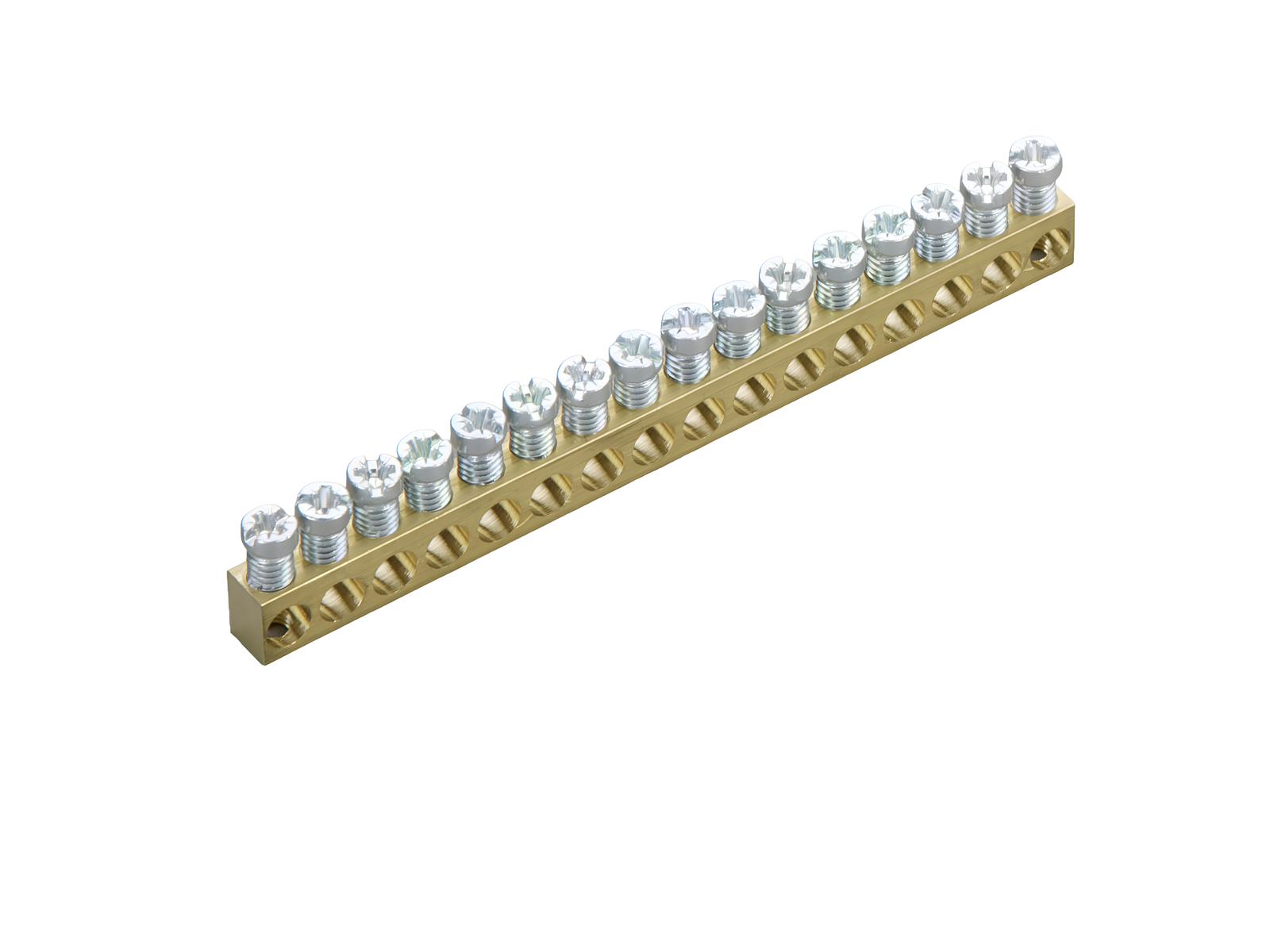

earth/neutral busbar 63A (01128)

The picture may show a similar product.

Description

Part No.: 01128000

earth/neutral busbar 63A

16 terminal points

protected against self-loosening

Product group 06
Subgroup 33
pack size 100
EAN 4021267011284
ECLASS 6.1 27141139
ECLASS 7.1 27141139
ETIM 4.0 EC000485
ETIM 5.0 EC000485

Approvals

Standards

IEC 60664-1:2007

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60664-1:2007
Electrical data IEC
Rated current (IEC): 63 A
Mechanical data
W x H x D: 104 x 9 x 6.5
weight: 4.3 kg/100
Terminal points
max. cross-section: 10 mm²


0.5 - 6mm² flexible with wire-end ferrule
0.75 - 6mm² solid round

Application notes

Reference

max. Drehmoment = 2Nm

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

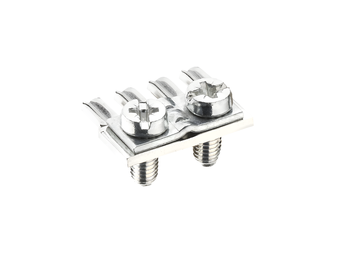

01114000
CRITO®
connection terminal for PE/N bar
35 mm²
suitable for PE and N busbars 01126 - 01130
More

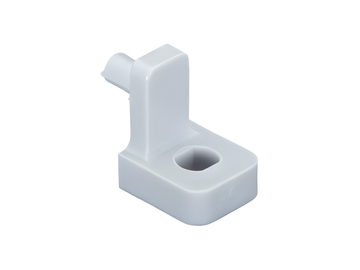

01119000
terminal support for PE/N-bar
screw-on
More

01120000
terminal support for PE/N-bar
screw-on
More

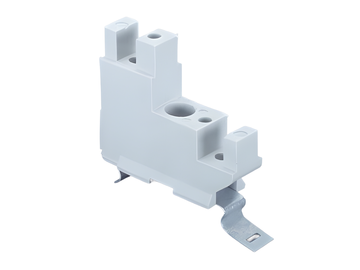

01121000
terminal support for PE/N-bar
snap-on to mounting rail TH35
More

08825000
rail mounting
for mounting rail 35 x 7.5
for PE/N bars 01126 - 01129 and 01926 - 01932
More
