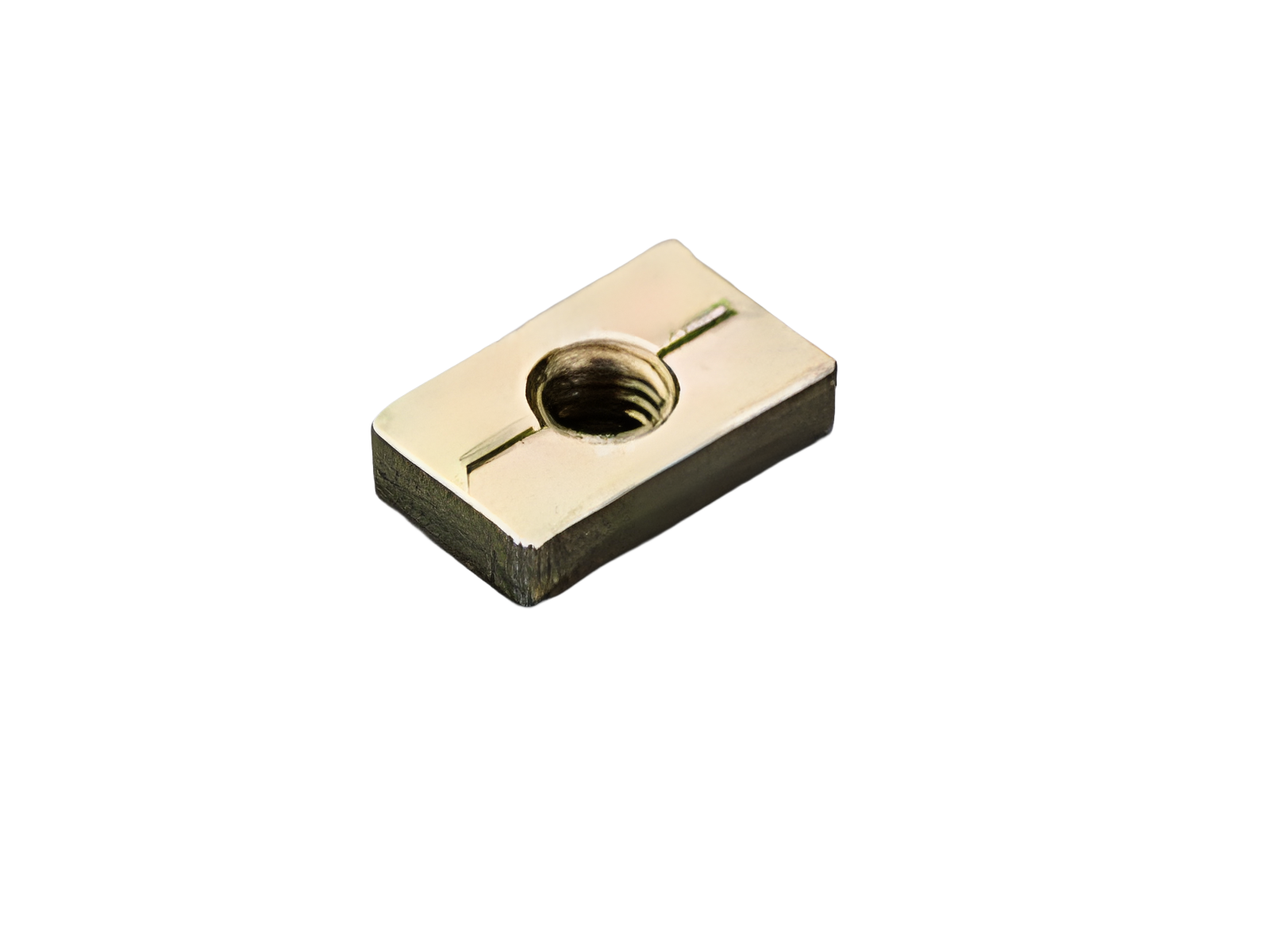

slide nut M5 (32937)

The picture may show a similar product.

Description

Part No.: 32937000

slide nut M5

for 32168, 32214, 32215, 32216

System

60Classic

Product group 05
Subgroup 57
pack size 4
EAN 4021267329372
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
weight: 0.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

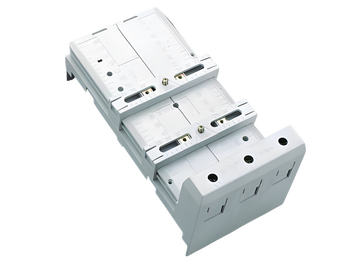

32215000
EQUES®60Classic
busbar adapter 200 A
terminals 6 - 70 mm² at bottom
108 x 222
connection to the system bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32168000
EQUES®60Classic
busbar adapter 250 A
terminals 35 - 120 mm² at top
110 x 320
connection to the system top
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

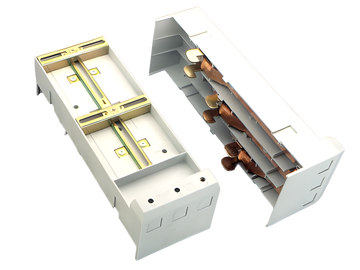

32216000
EQUES®60Classic
busbar adapter 250 A
terminals 35 - 120 mm² at bottom
110 x 320
connection to the system bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32214000
EQUES®60Classic
busbar adapter 200 A
terminals 6 - 70 mm² at top
108 x 222
connection to the system top
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
