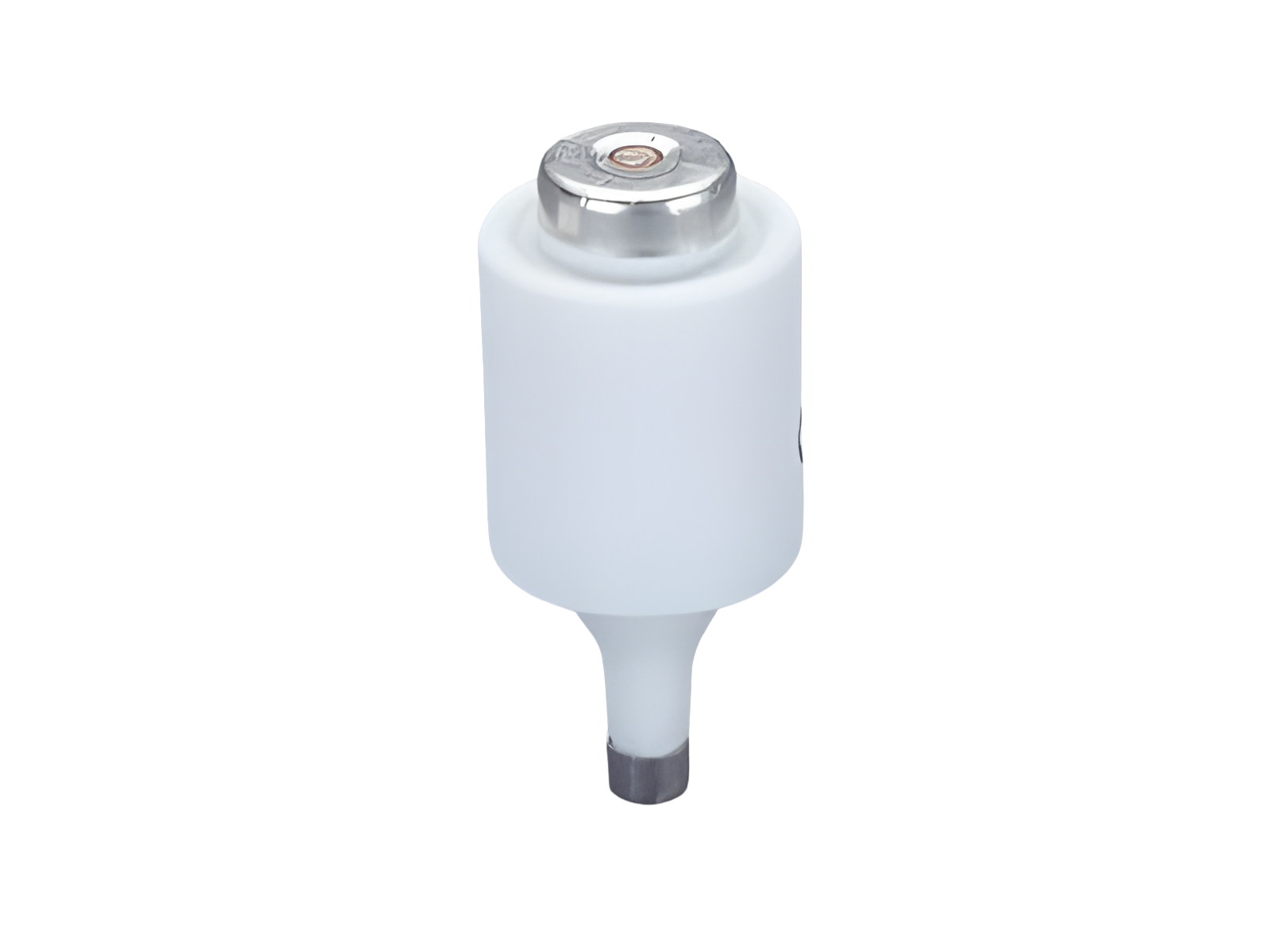

D-fuse link 10 A (01673)

The picture may show a similar product.

Description

Part No.: 01673000

D-fuse link 10 A

500 V, gG

E 27

Product group 22
Subgroup 02
pack size 5
EAN 4021267016739
ECLASS 6.1 27142004
ECLASS 7.1 27142004
ETIM 4.0 EC000099
ETIM 5.0 EC000099

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size: DII / E 27
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
Rated current (IEC): 10 A
rated voltage (IEC) AC: 500 V
rated voltage (IEC) DC: 500 V
operation class gG
rated short-circuit breaking capacity AC 50 kA
rated short-circuit breaking capacity DC 8 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1.7 W.

(The power dissipation at full load would be 2.6 W.)

Mechanical data
weight: 2.8 kg/100
