screw-in gauge ring fitter (01998)

The picture may show a similar product.

Description

Part No.: 01998000

screw-in gauge ring fitter

E 27 / E 33

Product group 22
Subgroup 04
pack size 1
EAN 4021267019983
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC000154
ETIM 5.0 EC000154

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Mechanical data
weight: 4.7 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

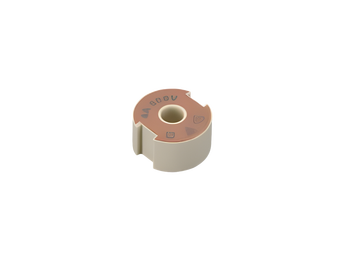

01701000
screw-in gauge ring 4 A
brown
E 27 / E 33
More

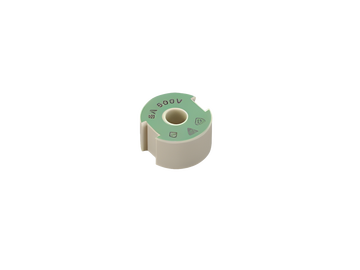

01702000
screw-in gauge ring 6 A
green
E 27 / E 33
More

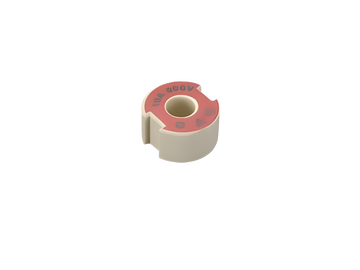

01703000
screw-in gauge ring 10 A
red
E 27 / E 33
More

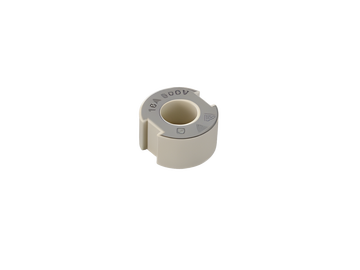

01704000
screw-in gauge ring 16 A
grey
E 27 / E 33
More

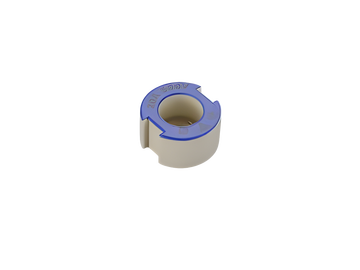

01705000
screw-in gauge ring 20 A
blue
E 27 / E 33
More

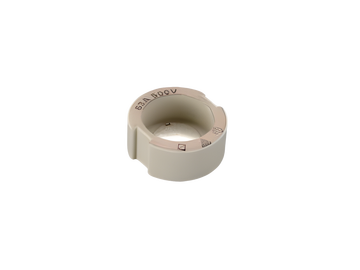

01709000
screw-in gauge ring 63 A
copper
E 33
More

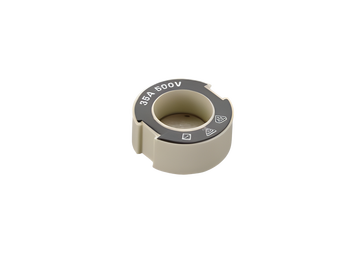

01707000
screw-in gauge ring 35 A
black
E 33
More

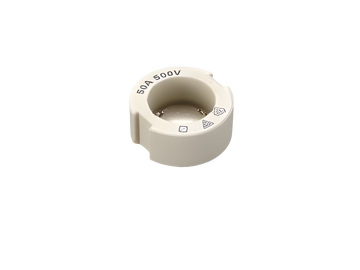

01708000
screw-in gauge ring 50 A
white
E 33
More

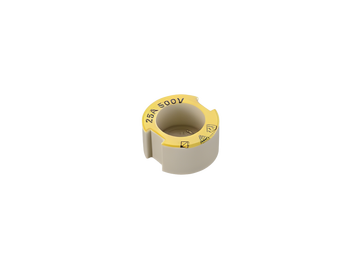

01706000
screw-in gauge ring 25 A
yellow
E 27 / E 33
More

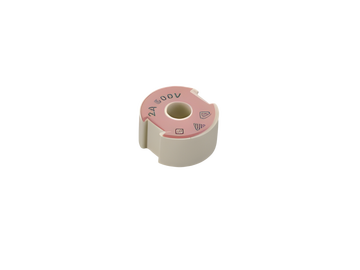

01741000
screw-in gauge ring 2 A
pink
E 27 / E 33
More
