for UL feeder circuits >250V

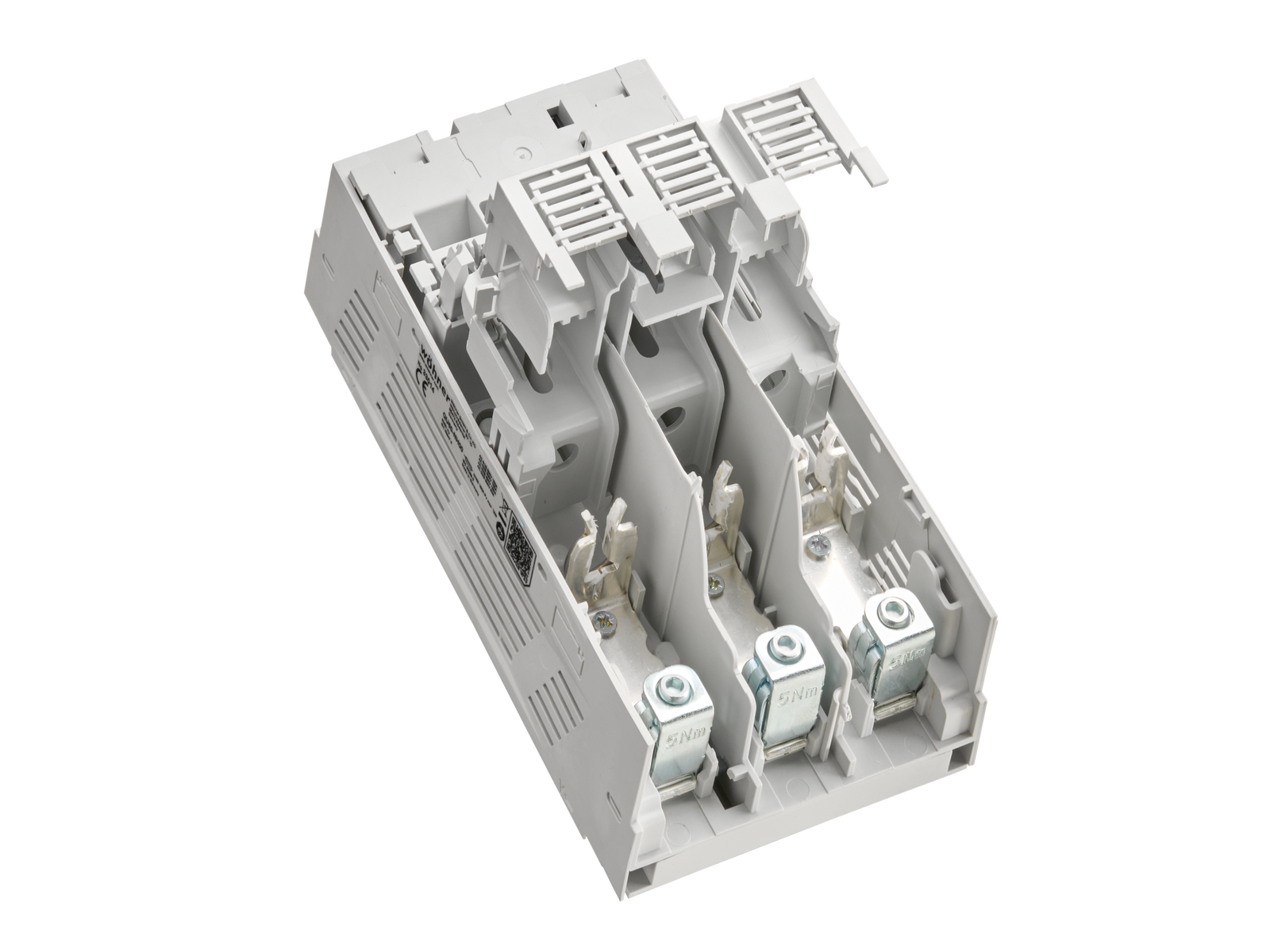

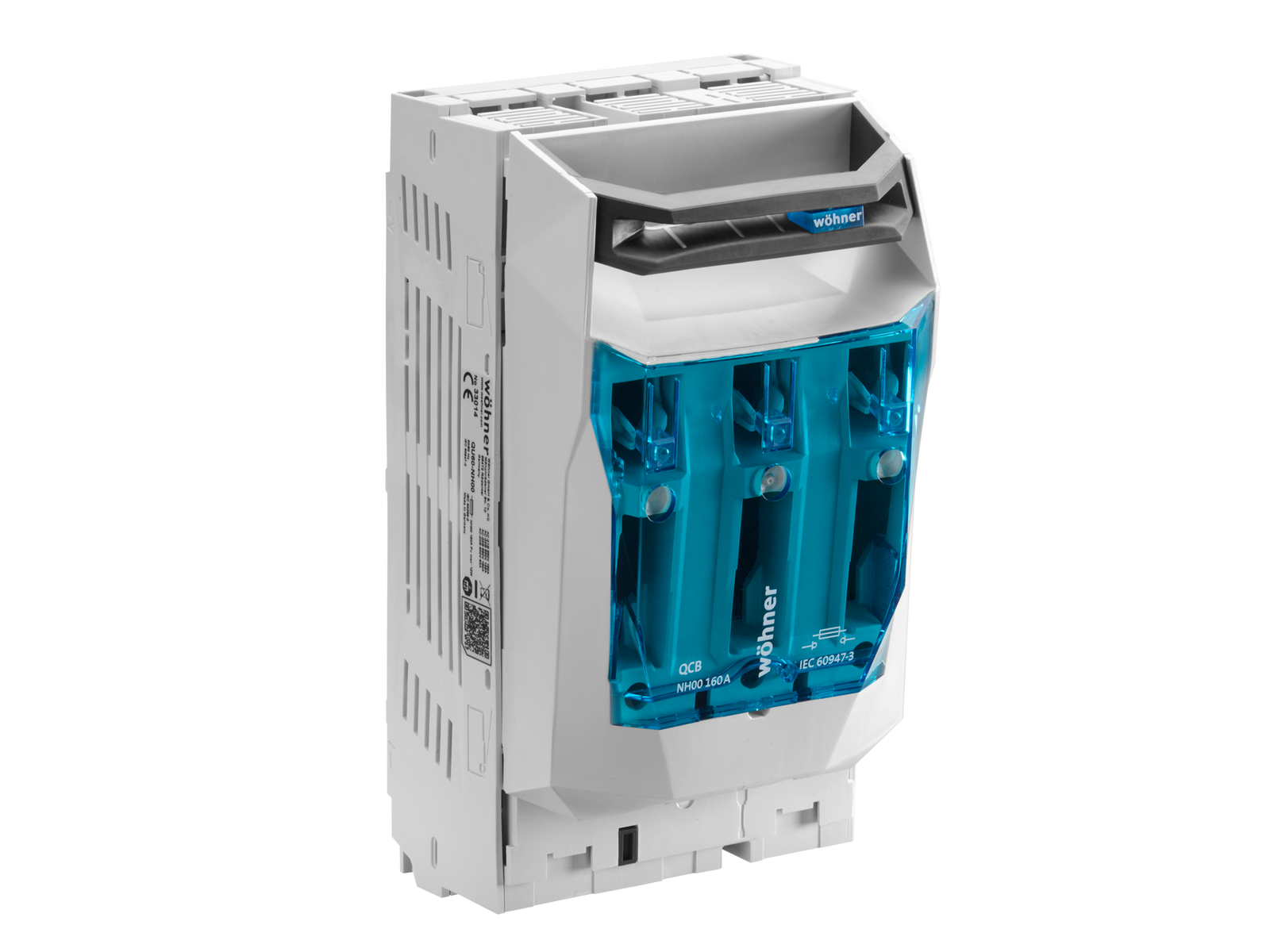

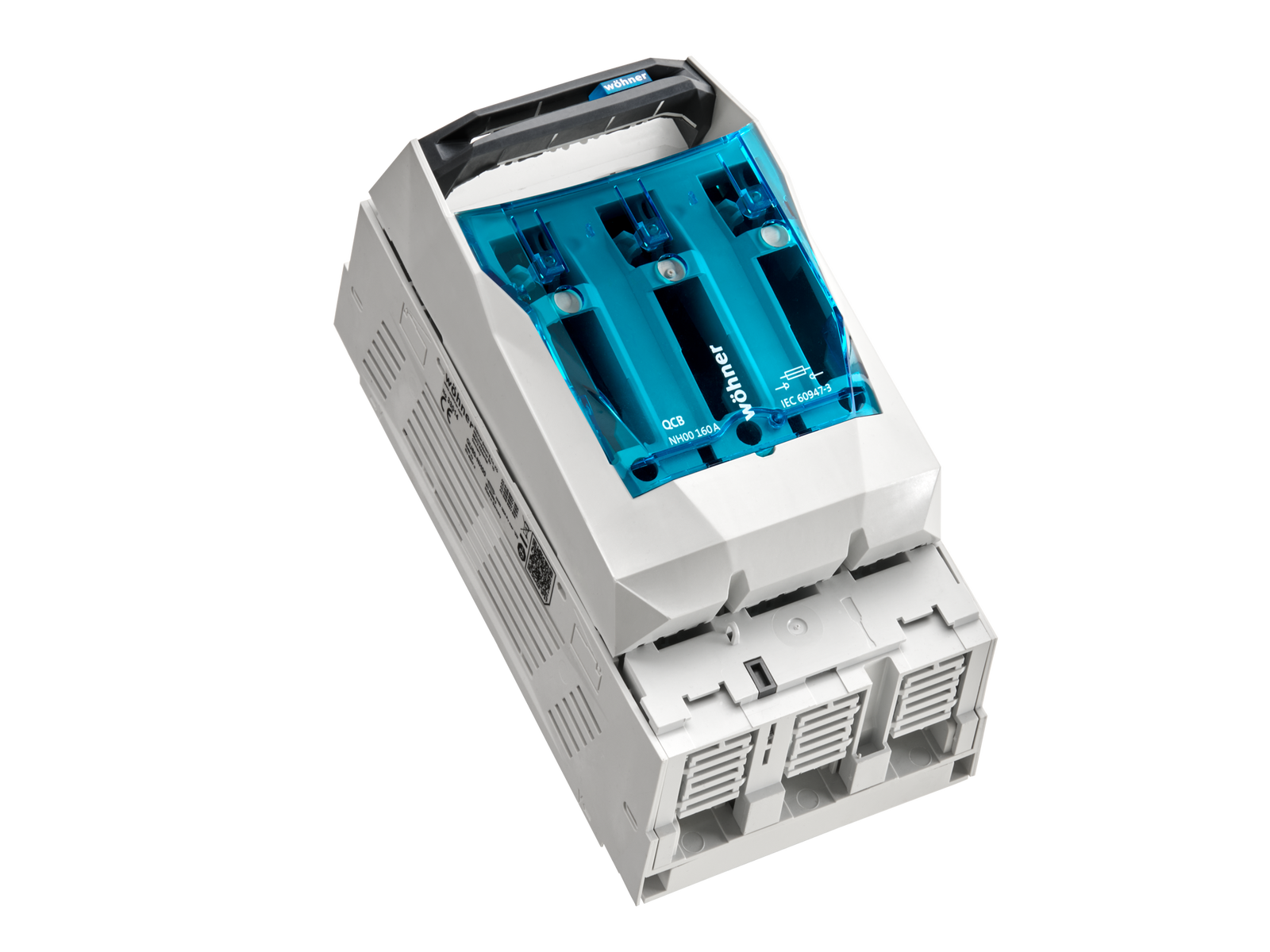

The picture may show a similar product.
Part No.: 33014000A
QUADRON®CrossBoard
NH fuse switch-disconnector size 00, 160 A
box terminal
connection top or bottom
coming soon
System
CrossBoard® 800 A
Advantages of the product
Quick and safe conversion of the cable outlet side for top and bottom connection
Simple and safe snapping installation and contacting without tools
It is not necessary to remove the protection cover to connect the cables
| Product group | 09 |
| Subgroup | 70 |
| pack size | 1 |
| EAN | 4021267330149 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
UL , VDE
for UL feeder circuits >250V
UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 800 V |
| rated voltage (IEC) DC: | 440 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated isolation voltage Ui DC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-21B (690 V) AC-22B (500 V) AC-23B (400 V) AC-20B (1000V) bei Verschmutzungsgrad 2 sichtbarer Hinweis notwendig, wenn Anwendung bei mehr als 690V AC: nicht unter Last schalten |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| 120 kA / 500 V (160 A) | |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11.3 W.
(The power dissipation at full load would be 17.7 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed. | |
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation |
| Details UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Mechanical data | |
| W x H x D: | 106 x 200 x 110 |
| weight: | 100.0 kg/100 |
| poles: | 3-pole |
| front degree of protection: | IP30 |
Busbar connector: externally tensioned contacting, convenient click mechanism
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| min. cross-section: | 1.5 mm² |
| max. cross-section: | 95 mm² |
| re: | 1.5 - 95 mm² |
| rm: | 1.5 - 95 mm² |
| rm + AE: | 1,5 - 70 mm² |
| f: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 5.0 Nm |
| Md max.: | 6.0 Nm |
| Not suitable for aluminium cables ! | |
|
for applications according UL : |
|
| Not suitable for aluminium cables ! | |
| required spacing top: | 50 mm |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
