for UL feeder circuits >250V
The picture may show a similar product.

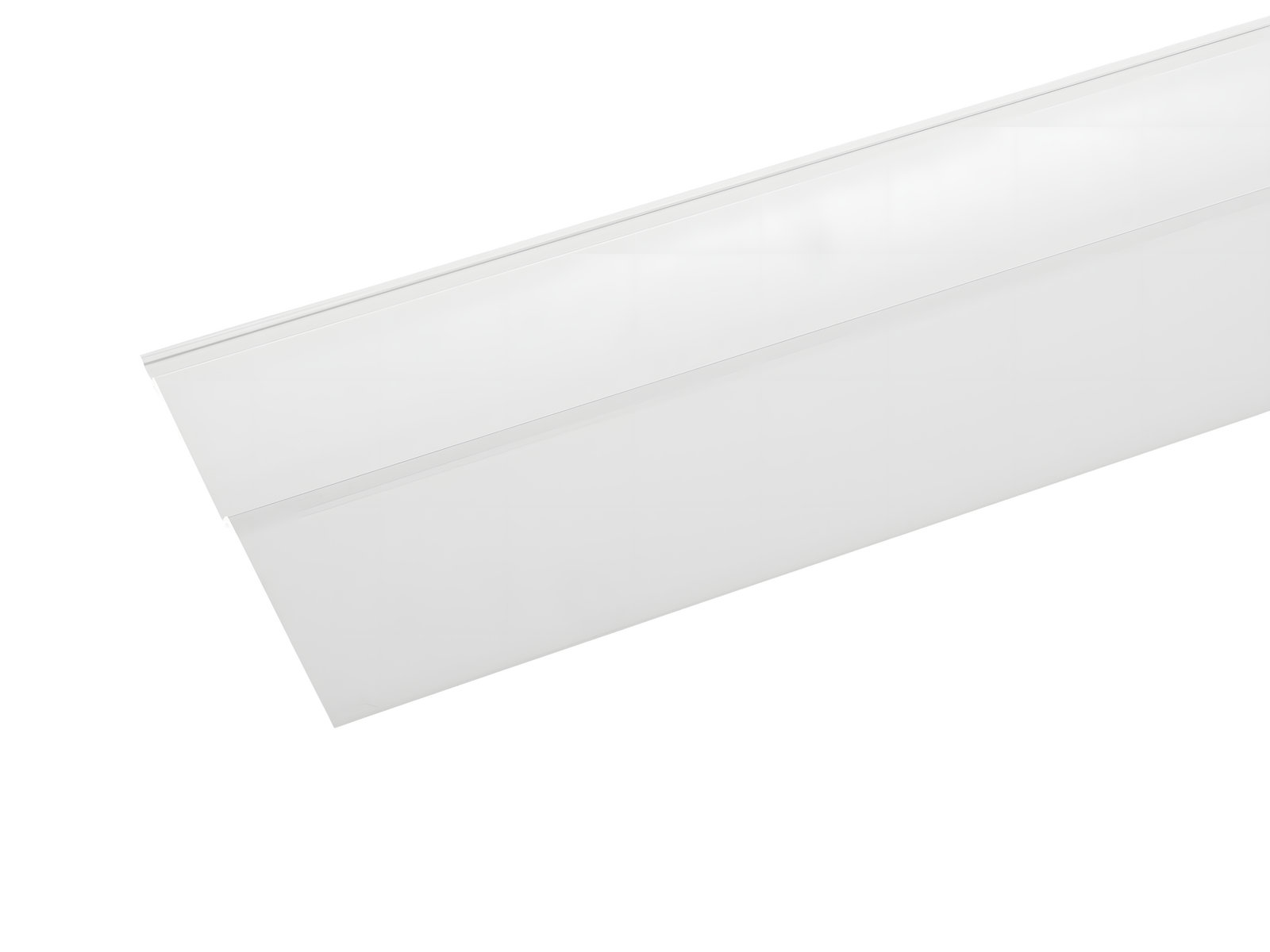

Part No.: 01555 000
cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
System
60Classic
| Product group | 07 |
| Subgroup | 36 |
| pack size | 2 |
| EAN | 4021267015558 |
| ECLASS 14.0 | 27370390 |
| ETIM 5.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 10.0 | EC002848 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
CSA , UL , DNV GL
for UL feeder circuits >250V
type number: C60.2-L
EAC Type: CO-S
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -40°C |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 1100 x 109 x 3 |
| weight: | 27.1 kg/100 |
| Material properties | |
| halogen-free: | Yes |
|
not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
|
| for UL feeder circuits >250V |
