for UL feeder circuits >250V

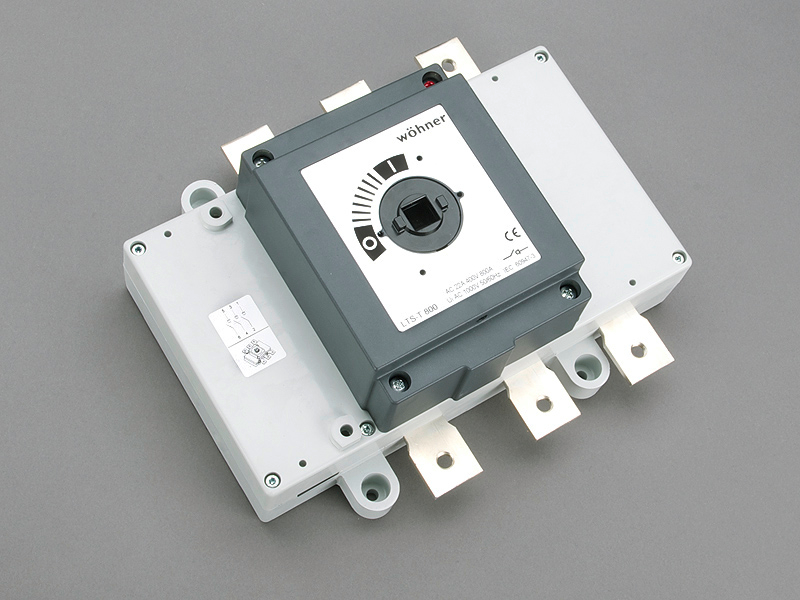

The picture may show a similar product.
Part No.: 33433 000
CAPUS Panel
switch-disconnector 3-pole
screw M10
800 A
for mounting plate
Auslaufartikel; Follower: 23006000AD
System
Panel
| Product group | 14 |
| Subgroup | 12 |
| pack size | 1 |
| EAN | 4021267334338 |
| ETIM 5.0 | EC000216 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
CCC
type number: LTS-T 800
CCC certificate: 2015010302764150
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 800 A |
| rated voltage (IEC) AC: | 400 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 12 kV |
| rated short-time withstand current Icw (1.0 s) max.: | 16 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 125.4 W.
(The power dissipation at full load would be 196.0 W.)
| Gebrauchskategorien siehe Datenblatt (unter Downloads) |
| Mechanical data | |
| W x H x D: | 275 x 235 x 121 |
| weight: | 420.0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
