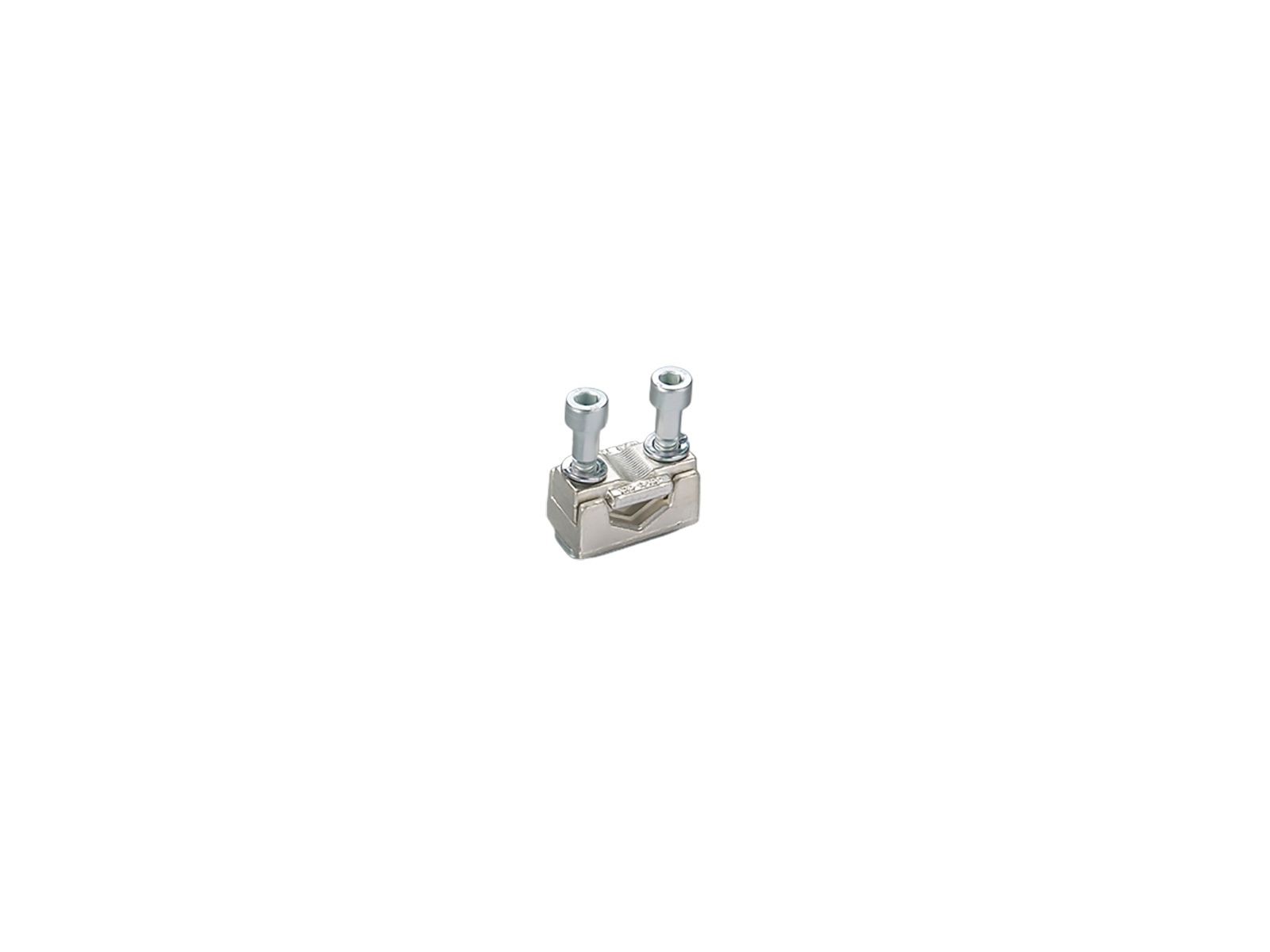

Obrázek může zobrazovat podobný produkt.
Part No.: 33167 000
prizmová svorka jednoduchá pro vodiče Cu
50 - 240 mm²
System
60Classic
| Produktová skupina | 09 |
| Podskupina | 51 |
| velikost balení | 1 |
| EAN | 4021267331672 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
EAC Type: AC-A
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Mechanické údaje | |
| hmotnost: | 19,9 kg/100 |
| Terminal points | |
| screw drive: | S5 |
| wire stripping: | 27 mm |
| min. cross-section: | 50 mm² |
| max. cross-section: | 240 mm² |
| rm: | 50 - 240 mm² |
| f: | 50 - 240 mm² |
| f + AE: | 50 - 240 mm² |
| (f + AE may not fit with max. cross-section) | |
| sm: | 50 - 240 mm² |
| Md min.: | 4,8 Nm |
| Md max.: | 9,6 Nm |
| Not suitable for aluminium cables ! | |
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
|
determined by main product |
|
