The picture may show a similar product.
订货号 01272 000

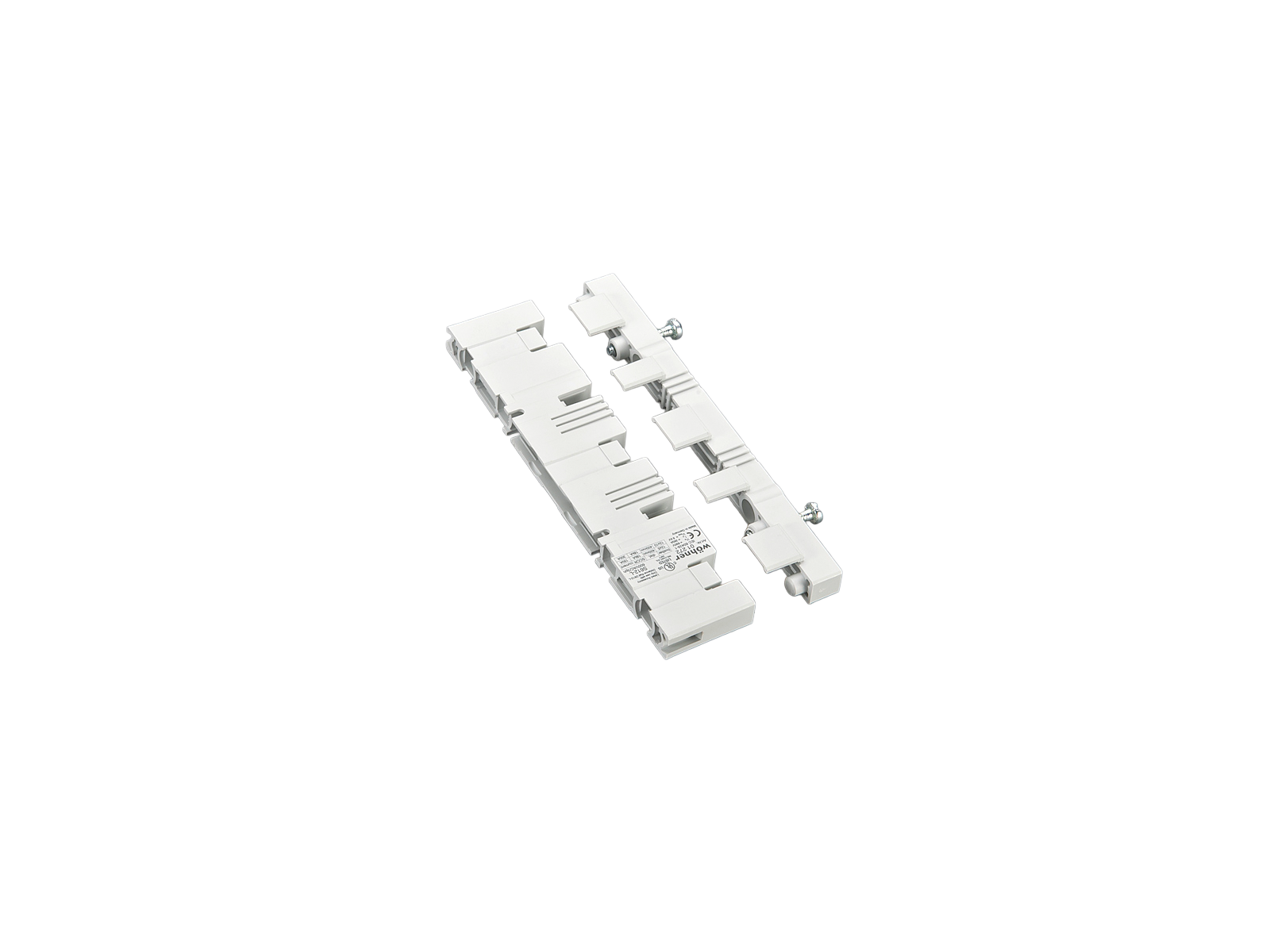

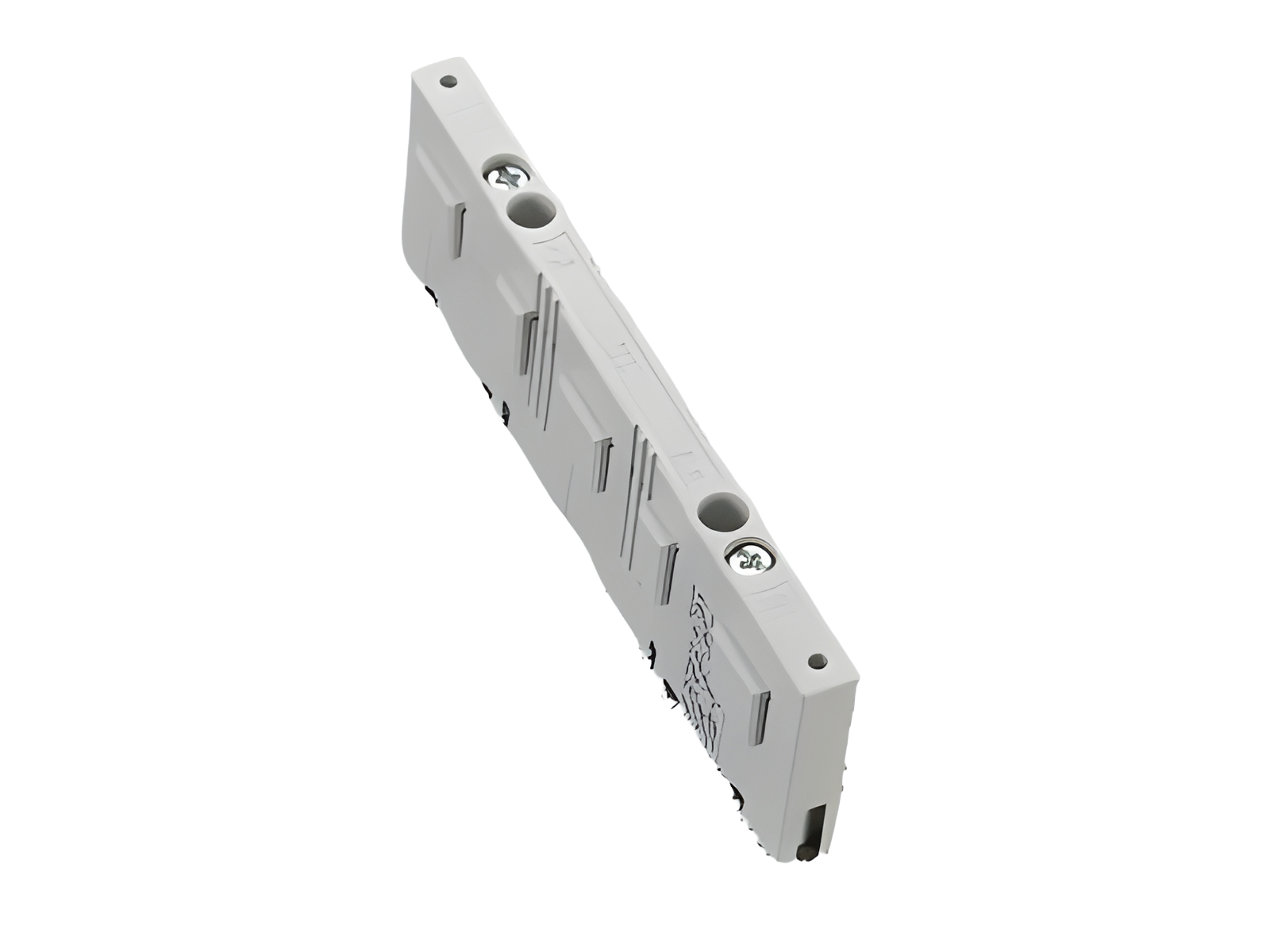

母线支架 3极 + N + E, 带末端盖
适用母线 3 线 12 x 5 和 12 x 10
适用母线 5 线 12 x 5 和 12 x 10, N + PE 12 x 5
系统
30Compact 3P, 30Compact 5P
| 产品组 | 06 |
分组 |
09 |
| 包装件数 | 10 |
| EAN | 4021267012724 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
标准
IEC 61439-1:2020
UL 508
认证许可
UL
for UL feeder circuits >250V
型号: S612-L
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电压（IEC）AC: | 690 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 800 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| 额定冲击耐受电流 Ipk : | 54 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| short-circuit capacity IEC / EN : 3-pole: Ipk max. = 54 kA (busbar 12x10, 2 busbar supports in 250 mm distance) go to calculation for 3-pole system (IEC) 4- and 5-pole : Ipk = 32 kA (2 busbar supports in 250 mm distance) go to calculation for 5-pole system (IEC) |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 18 kA |
| 3 cycles (without OPD) @ 600 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 15 x 156 x 45 |
| 重量: | 6.8 kg/100 |
| 极数: | 3 极 |
|

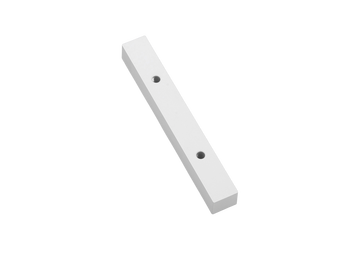

根据UL 580A, 为了遵守更高的空气和爬电距离要求, 需要使用垫块 01 374。 |
|
| for UL feeder circuits >250V |
