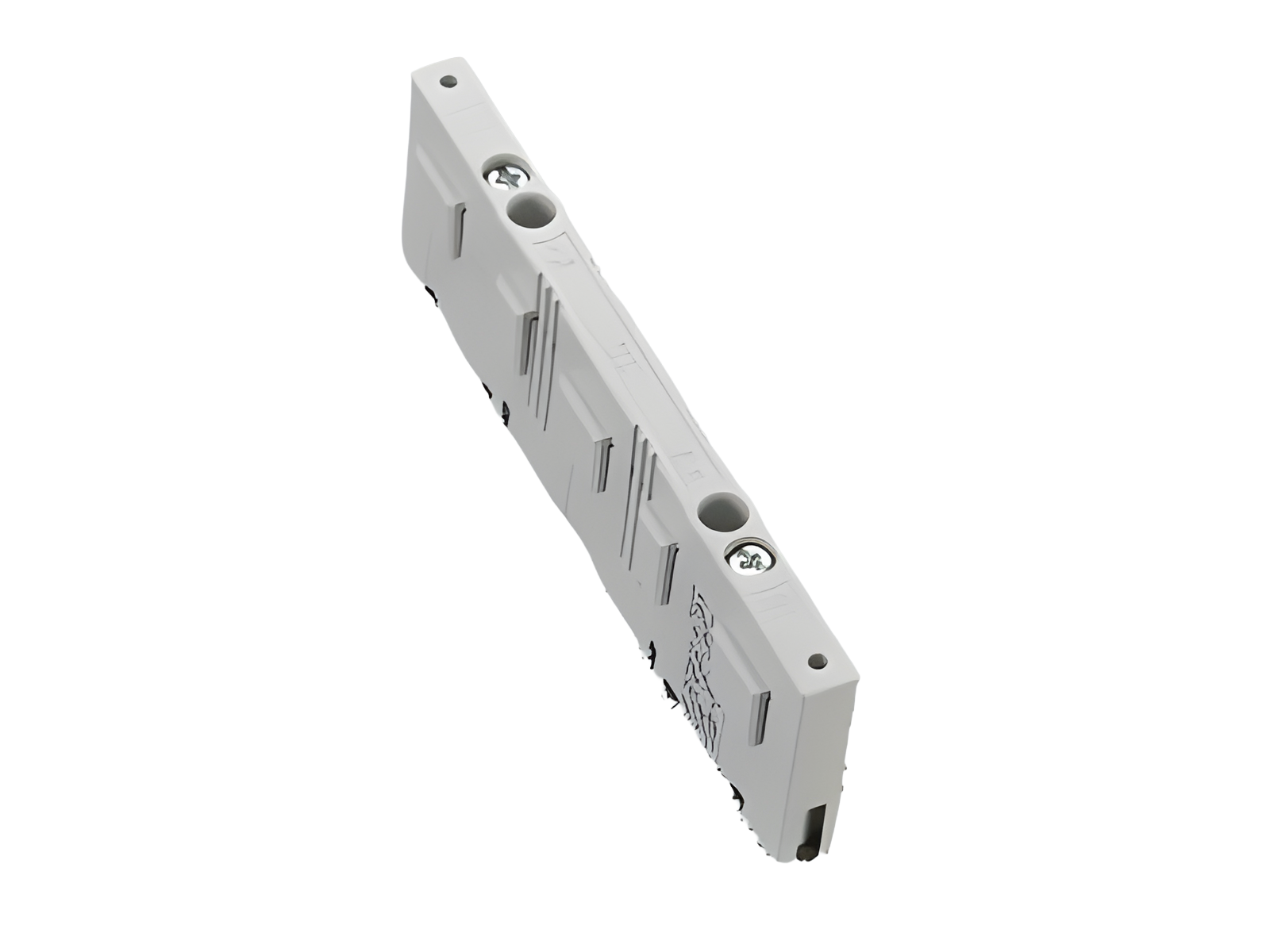

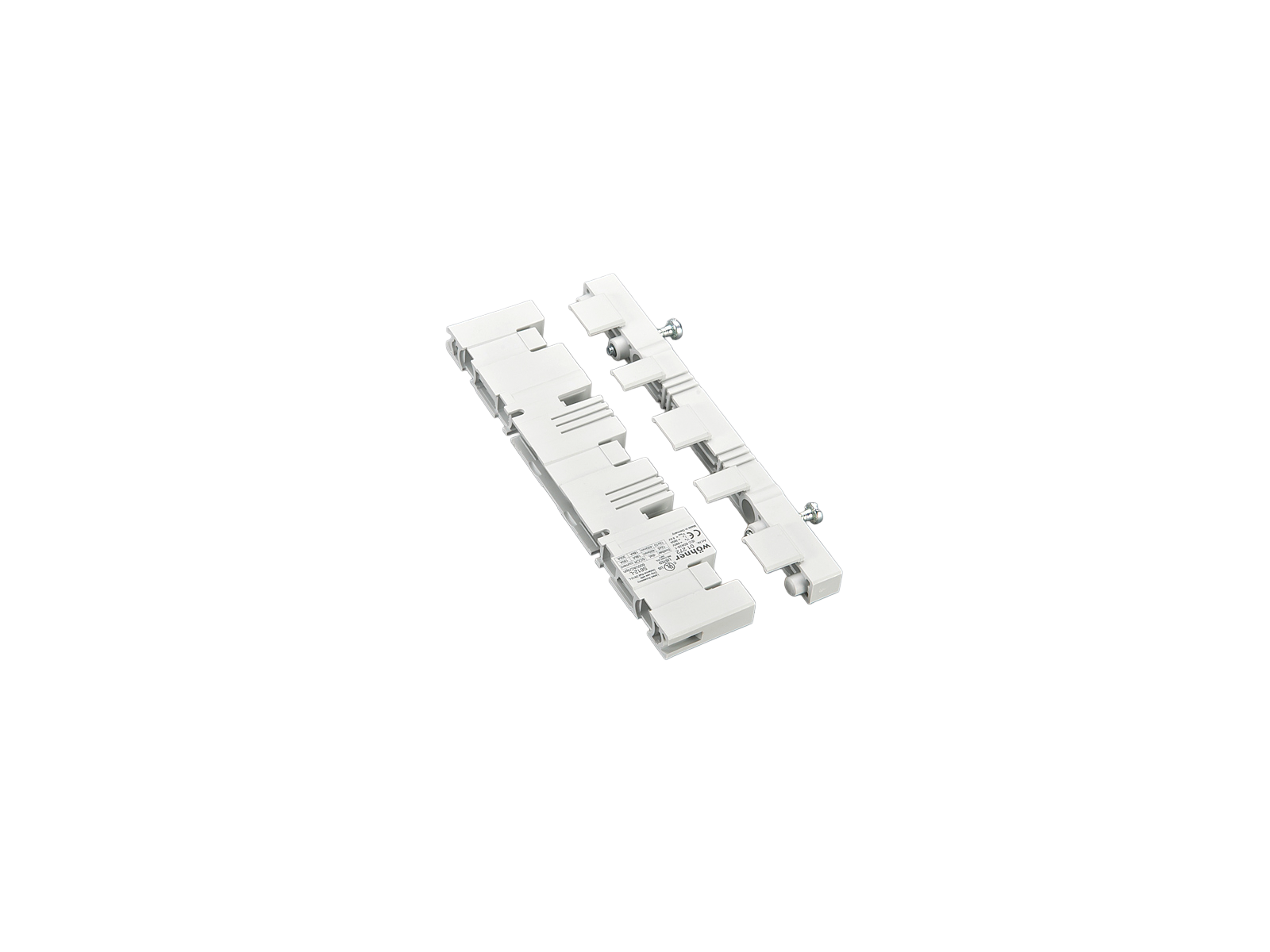

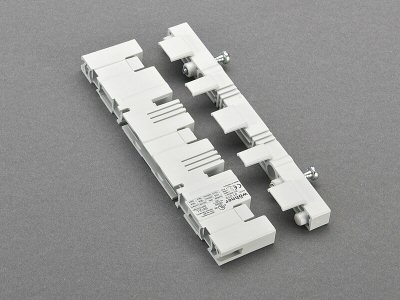

The picture may show a similar product.
Cod.art.: 01272 000
Supporto per barre, 3p + N + PE, incl. cop. laterale
per sistemi 3p con barre 12 x 5 e 12 x 10
per sistemi 5p con barre 12 x 5 o 12 x 10 (L1 -L3) e barre 12 x 5 (N + PE)
Montaggio
30Compact 3P, 30Compact 5P
| gruppo di prodotto | 06 |
| sottogruppo prodotto | 09 |
| pz/ conf. | 10 |
| EAN | 4021267012724 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Norme
IEC 61439-1:2020
UL 508
Omologazioni
UL
for UL feeder circuits >250V
type no.: S612-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| tensione nominale (IEC) AC: | 690 V |
| frequenza nominale (IEC): | 50 / 60 Hz |
| tensione nominale di isolamento Ui AC: | 800 V |
| tensione di picco Uimp: | 6 kV |
| resistenza nom. alla corrente di picco Ipk max.: | 54 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| short-circuit capacity IEC / EN : 3-pole: Ipk max. = 54 kA (busbar 12x10, 2 busbar supports in 250 mm distance) go to calculation for 3-pole system (IEC) 4- and 5-pole : Ipk = 32 kA (2 busbar supports in 250 mm distance) go to calculation for 5-pole system (IEC) |
| Details UL | |
| Norme | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| tensione nominale (UL) AC: | 600 V |
| frequenza nominale (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 18 kA |
| 3 cycles (without OPD) @ 600 V AC |
| Valori meccanici | |
| L x A x P: | 15 x 156 x 45 |
| peso: | 6,8 kg/100 |
| Poli: | 3 poli |
|

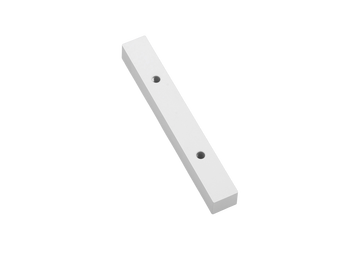

Zur Einhaltung der erhöhten Luft- und Kriechstrecken nach UL 508A ist das Distanzstück 01 374 zu verwenden. |
|
| for UL feeder circuits >250V |
