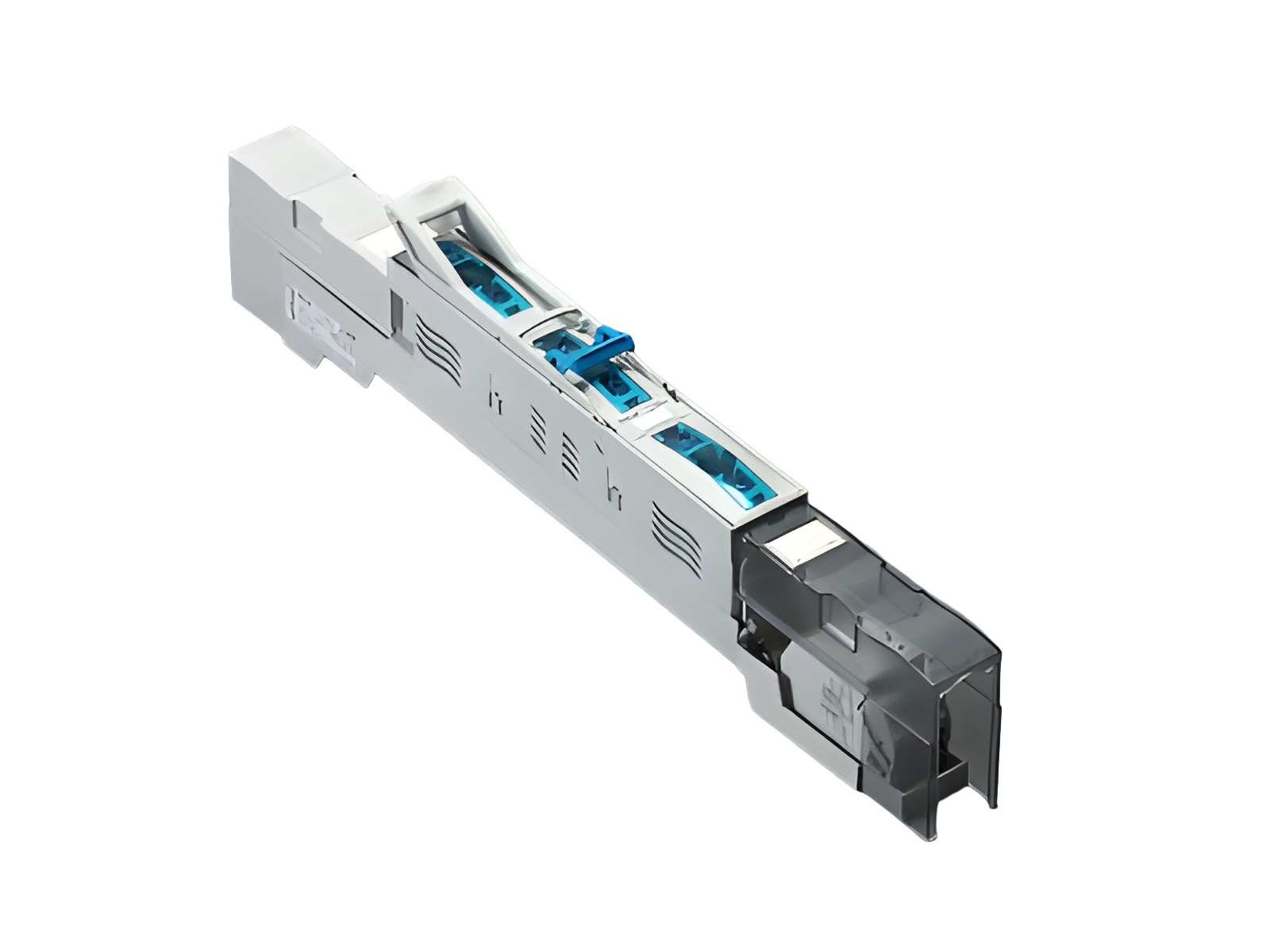

A imagem pode mostrar um produto similar.
Código da peça: 33286000
chave seccionadora de fusível vertical 160 A
parafuso M8/grampo 70mm², com monitorização eletr. do fusível
tamanho 00
para barramentos 30, 40, 50, 60 x 10
Sistema
100Energy
Vantagens do produto
Self-closing inspection holes are available in the cover.
Electronic fuse monitoring:
operating current principle, optionally with latching properties (latches without bridge X1-X2)
device display:
green LED = intact fuses
red LED = fuse tripped, cover position up
Grupo de produto | 12 |
Subgroup | 51 |
Unidade por pacote | 1 |
EAN | 4021267332860 |
ECLASS 6.1 | 27142108 |
ECLASS 7.1 | 27142108 |
ETIM 4.0 | EC001046 |
ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , CCC
Número de tipo: SLS-00
CCC certificate: 2004010302117261
for fuse links size: | NH 000, NH 00 |
fuse links acc. to standard: | IEC / HD 60269-2 |
permitted power dissipation of the fuse-link: | 12 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
Dados IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Dados elétricos IEC | |
Corrente de medição (IEC): | 160 A |
Tensão de medição (IEC) AC: | 400 V |
Tensão nominal de isolamento: | 400 V |
Tensão suportável nominal de impulso Uimp: | 4 kV |
Utilisation category AC (IEC 60947-3) : | AC-23B (400V) |
cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 12,8 W.
(A dissipação de energia em sua carga máxima seria 20,0 W.)
Dados adicionais IEC | |
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
Electronic fuse monitoring: nominal voltage: 3AC 400V, nominal frequency: 50...40Hz, switch contact: 2 changeover switches, max. AC 250V, AC15 closer 3A, opener 1A, rated surge voltage: 4kV, pollution degree: 2 |
|
Degree of protection IP30 at front, degree of protection near terminal depends on installation |
Dados mecânicos | |
L x A x P: | 49 x 610 x 136 |
Peso: | 143,0 kg/100 |
para barramentos: | 30, 40, 50, 60 x 10 |
Type of fastening: can be screwed onto drilled busbar,
M8, 12 - 14Nm torque,
or using terminal clamp,
adapter for 185-mm-System,
connection 70mm², screw M8, 12 - 14Nm torque,
connection clamp 1.5-70mm², 3Nm torque
wedge clamp terminal 16-70mm², 3Nm torque
Conductor connection, fuse monitoring:
2 x 2.5mm² solid DIN 46 288 or
2 x 1.5mm² braid with ferrule DIN 46 228-1/-2/-3
pontos terminais | |
screw M8 : |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
Notas |
with adapter (accessory) for the 185mm-System power |
permitted power dissipation of the fuse-link: | 12 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
