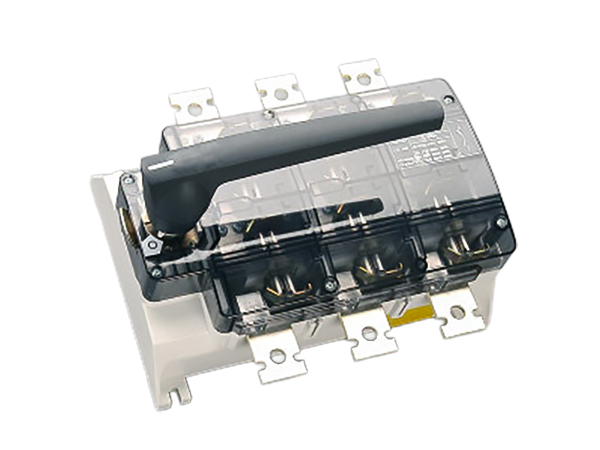

The picture may show a similar product.
Référence 33336000
CAPUS®Panel
interrupteur-sectionneur à 3 pôles
vis M12, poignée gris graphite
800 A
for mounting plate
ERGON-800
Système
Panel
Avantages produit
double-breaking main contacts,
visible separation sections,
user-independent switching,
assembly and connection material contained in scope of delivery
| Groupe de produits | 14 |
| Sous-groupe | 12 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267333362 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approbations
IEC (CB)
Type: LTS-800
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Courant assigné (IEC): | 800 A |
| Tension assignée (IEC) CA: | 500 V |
| rated isolation voltage Ui AC: | 1000 V |
| Tension assignée de tenue aux chocs Uimp: | 12 kV |
| Catégorie d'emploi CA: | AC-23B (500V) AC-22B (500V) AC-21B (500V) |
| approved wth fuse links of operation class: | gG |
| rated short-time withstand current Icw (1.0 s) max.: | 20 kA |
| rated making capacity: | 40 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 108,2 W.
(The power dissipation at full load would be 169,0 W.)
| Mechanical lifespan (switching operations) 2500 rated short-circuit making capacity 40kA |
|
| conv. therm. current in housing 800A, horizontal installation (adjacent poles) encapsulated 756 x 378 x 482mm 800A, vertical installation (poles beneath each other) encapsulated 600 x 600 x 400mm |
|
| Shock protection at front with terminal space cover IP40 |
| Charactéristiques mécaniques | |
| L x H x P: | 330 x 290 x 237 |
| Poids: | 944,0 kg/100 |
| Pôles: | 3 pôles |
| Mounting: | for mounting plate |
Type of fastening: screw-on
connection screw (clamps and wedge clamp terminal can be retrofitted),
screw connection
M12, 40Nm ± 10% torque,
clamp connection for lam. Cu
terminal space 25x1-13mm,
10-12Nm torque
wedge clamp connection, single
cross-section 150 - 300mm², s(r), f, f+AE** Cu - Al*, 10-12Nm torque
wedge clamp connection, double
cross-section 2 x 150 - 240mm², s(r), f, f+AE** Cu, 10-12Nm torque
* Aluminium conductors must be prepared before connection in accordance with the pertinent technical recommendations. The connections are to be checked at regular intervals and serviced not later than every 6 months.
** reduction in the max. conductor cross-sections may be required.
| Points de raccordement | |
| Not suitable for aluminium cables ! | |
|
vis M12 : |
|
| Not suitable for aluminium cables ! | |
|
Conseils |
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
