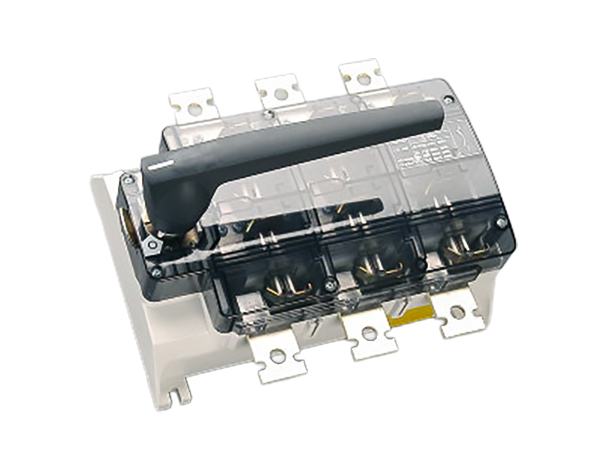

The picture may show a similar product.
Cod.art.: 33336000
CAPUS®Panel
Sezionatore sottocarico, 3 poli
viti M12, manovra nera
800 A
for mounting plate
ERGON-800
Montaggio
Panel
Vantaggi prodotto
double-breaking main contacts,
visible separation sections,
user-independent switching,
assembly and connection material contained in scope of delivery
| gruppo di prodotto | 14 |
| sottogruppo prodotto | 12 |
| pz/ conf. | 1 |
| EAN | 4021267333362 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Omologazioni
IEC (CB)
type no.: LTS-800
| Details IEC | |
| Norme | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| corrente nominale (IEC): | 800 A |
| tensione nominale (IEC) AC: | 500 V |
| tensione nominale di isolamento Ui AC: | 1000 V |
| tensione di picco Uimp: | 12 kV |
| Categoria d'impiego AC: | AC-23B (500V) AC-22B (500V) AC-21B (500V) |
| secondo prove fatte con fusibili di caratteristica: | gG |
| corrente nom. di breve durata Icw (1,0 s) max.: | 20 kA |
| potere nominale di chiusura: | 40 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 108,2 W.
(The power dissipation at full load would be 169,0 W.)
| Mechanical lifespan (switching operations) 2500 rated short-circuit making capacity 40kA |
|
| conv. therm. current in housing 800A, horizontal installation (adjacent poles) encapsulated 756 x 378 x 482mm 800A, vertical installation (poles beneath each other) encapsulated 600 x 600 x 400mm |
|
| Shock protection at front with terminal space cover IP40 |
| Valori meccanici | |
| L x A x P: | 330 x 290 x 237 |
| peso: | 944,0 kg/100 |
| Poli: | 3 poli |
| Mounting: | for mounting plate |
Type of fastening: screw-on
connection screw (clamps and wedge clamp terminal can be retrofitted),
screw connection
M12, 40Nm ± 10% torque,
clamp connection for lam. Cu
terminal space 25x1-13mm,
10-12Nm torque
wedge clamp connection, single
cross-section 150 - 300mm², s(r), f, f+AE** Cu - Al*, 10-12Nm torque
wedge clamp connection, double
cross-section 2 x 150 - 240mm², s(r), f, f+AE** Cu, 10-12Nm torque
* Aluminium conductors must be prepared before connection in accordance with the pertinent technical recommendations. The connections are to be checked at regular intervals and serviced not later than every 6 months.
** reduction in the max. conductor cross-sections may be required.
| Connessioni | |
| Not suitable for aluminium cables ! | |
|
viti M12 : |
|
| Not suitable for aluminium cables ! | |
|
Avvisi e consigli |
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
