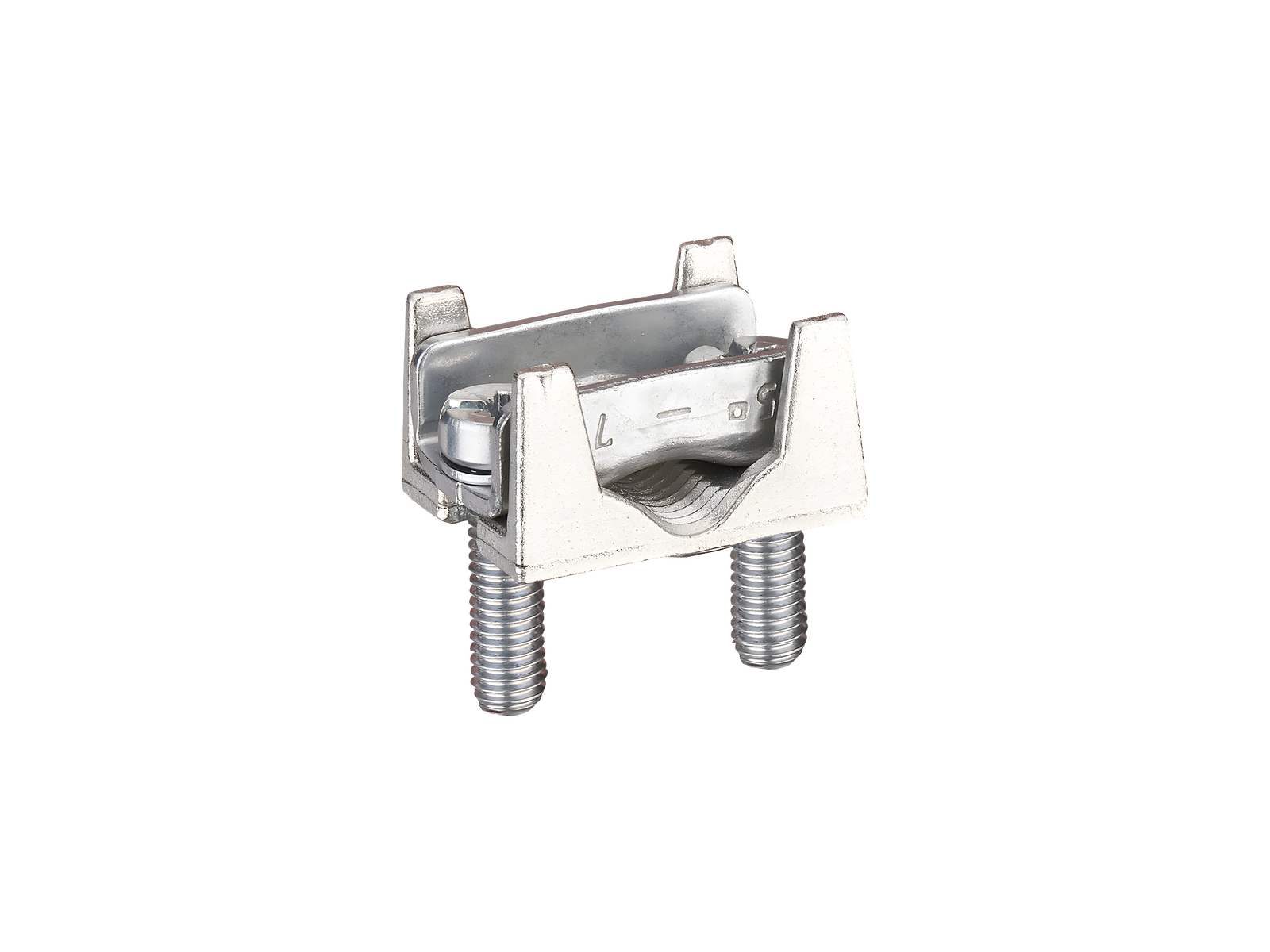

wedge clamp terminal (33734)

The picture may show a similar product.

Description

Part No.: 33734 000A

wedge clamp terminal

for Cu 10 - 95 mm²

size 00

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337346
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 3.0 kg/100

Cu
1 x 10mm² re;
1 x 16-95mm² rm
1 x 35-95mm² sm
1 x 10-95mm² f
1 x 10-70mm² f+AE

Terminal points
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !

determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33720 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
