borne de prisma (33734)

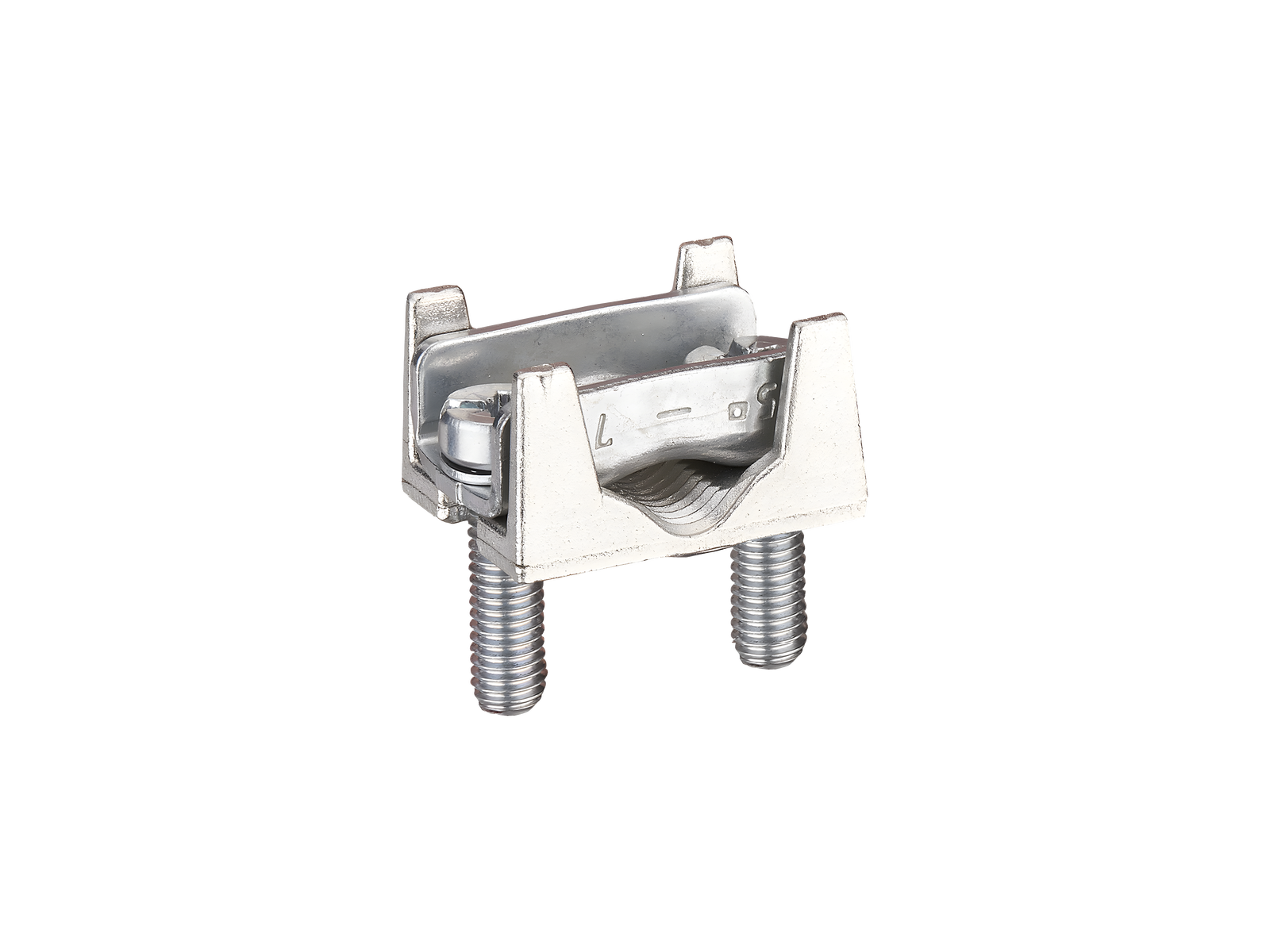

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33734000A

borne de prisma

für Cu / Al 10 - 95 mm²

talla 00

sistema

185Power

grupo de producto 12
subgrupo 70
embalaje 3
EAN 4021267337346
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos mecánicos
peso: 3,0 kg/100

Cu
1 x 10mm² re;
1 x 16-95mm² rm
1 x 35-95mm² sm
1 x 10-95mm² f
1 x 10-70mm² f+AE

puntos de apriete
Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

Application notes

Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.
short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Se utiliza para

33720000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables, con control de fusibles
high version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33700000A
QUADRON®185Power
