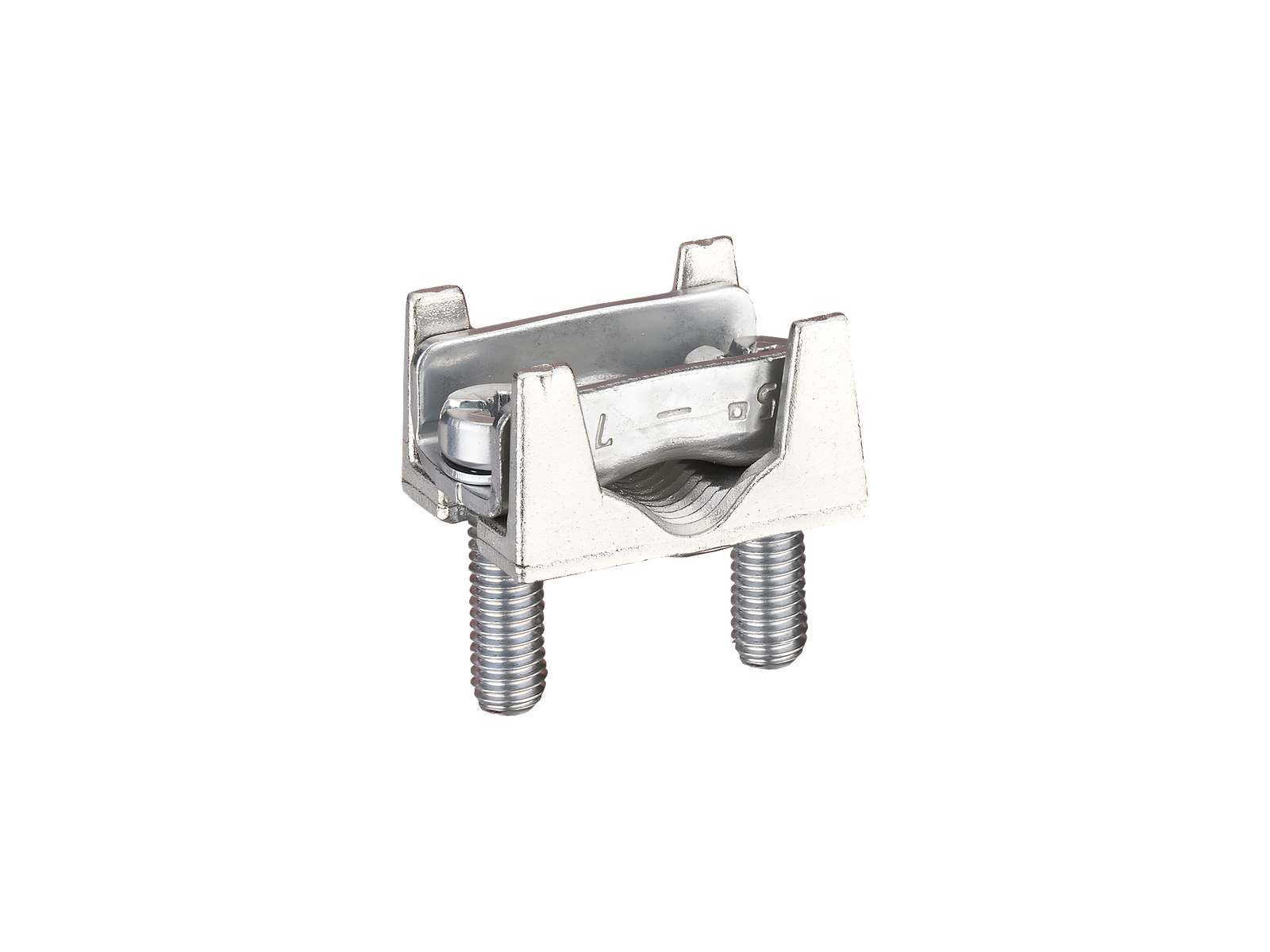

wedge clamp terminal (33734)

The picture may show a similar product.

Description

Part No.: 33734000A

wedge clamp terminal

für Cu / Al 10 - 95 mm²

size 00

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337346
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 3,0 kg/100

Cu
1 x 10mm² re;
1 x 16-95mm² rm
1 x 35-95mm² sm
1 x 10-95mm² f
1 x 10-70mm² f+AE

Terminal points
Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

Application notes

Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.
short-circuit withstandability: determined by main product
