The picture may show a similar product.
Part No.: 33337 000
CAPUS®Panel
switch disconnector with fuses, 3-pole
screw M8, graphite-grey handle
NH 00, 160 A
for mounting plate
ERGONFUSE-160
System
Panel
Advantages of the product
double-breaking main contacts,
visible separation sections,
user-independent switching,
voltage-free exchange of fuses
assembly and connection material contained in scope of delivery.
| Product group | 15 |
| Subgroup | 03 |
| pack size | 1 |
| EAN | 4021267333379 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB)
type number: LTS-F160
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23A (690V/125A) AC-23A (500V) AC-22A (690V) AC-21A (690V) |
| cond. short-circuit current with fuses (AC): | 80 kA / 690 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 17.9 W.
(The power dissipation at full load would be 28.0 W.)
| Mechanical lifespan (switching operations) 7000 | |
| conv. therm. current in housing 160 A, horizontal installation (adjacent poles) encapsulated 252 x 378 x 302mm 145 A, vertical installation (poles beneath each other) encapsulated 500 x 500 x 300mm |
|
| Shock protection at front with terminal space cover IP20 for fuse links DIN 43620 size 00 up to 12W power dissipation |
| Mechanical data | |
| W x H x D: | 171 x 148 x 195 |
| weight: | 230.0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
| Terminal points | |
| screw connection | |
| M8 | |
| Md min.: | 12.6 Nm |
| Md max.: | 15.4 Nm |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 15 - 20 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Not suitable for aluminium cables ! | |
|
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
|
| permitted power dissipation of the fuse-link: | 12 W |

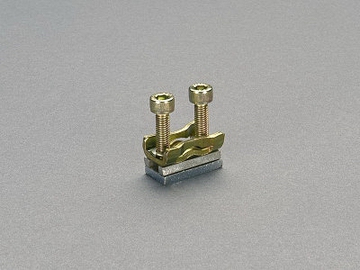

33363
000
clamp connector for Cu conductors
2.5 - 70 / 12 x 10
for: LTS-F 160
More
33350
000
connection space cover
for covering all connections, dark grey
LTS-250, LTS-F 160
More
33342
000
door coupling rotary drive
graphite grey, without handle
without door interlock
for: LTS-250/400/630 LTS-F 160/250/400
More
33345
000
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: LTS-250/400/630 LTS-F 160/250/400
More
33347
000
pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
LTS, LTS-F
More
33380
000
extension shaft, 550 mm long
LTS-250/400/630, LTS-F 160/250/400
for: LTS-250/400/630, LTS-F 160/250/400
More
23923
000AD
extension shaft, 300 mm long
for: S32 250 A / 400 A
More
