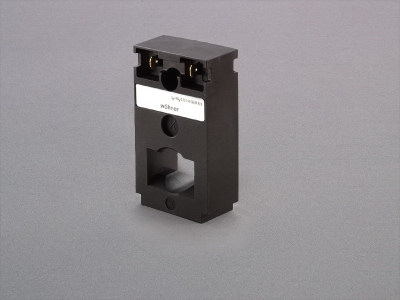

The picture may show a similar product.
Part No.: 33173 000
current transformer 300 A / 5 A
5 VA / class 1
size 1 - 3
no longer available
| Product group | 23 |
| Subgroup | 05 |
| pack size | 3 |
| EAN | 4021267331733 |
| ECLASS 6.1 | 27210902 |
| ECLASS 7.1 | 27210902 |
| ETIM 4.0 | EC002048 |
| ETIM 5.0 | EC002048 |
Standards
IEC 61869-1:2007
IEC 61869-2:2012
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61869-1:2007 IEC 61869-2:2012 |
| Electrical data IEC | |
| rated current (IEC): | 300 A |
| prim. rated current Ipr: | 300 A |
| sec. rated current: | 5 A |
| sec. rated apparent power: | 5 VA |
| accuracy class (current): | 1 |
| max. operation voltage Um: | 720 V |
| therm. short-time current Ith: | 18 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3.2 W.
(The power dissipation at full load would be 5.0 W.)
| Primary rated current strength 300 A, secondary rated current strength, 5A, maximum operating voltage Um 0.72kV, frequency 50-60Hz, overcurrent limiting factor FS5 thermal nominal short-time current Ith = 60 x In accuracy class 1 rated apparent power 5VA insulation class E |
| Mechanical data | |
| W x H x D: | 49 x 27 x 70 |
| weight: | 14.3 kg/100 |
Type of fastening:
can be installed direct into Secur LeanStreamer size 1-3,
can be installed into Secur LeanStreamer size 00 with adapter and
fastening clip
