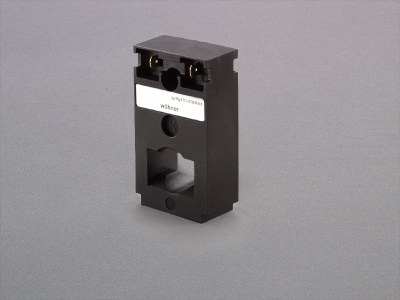

La imagen puede mostrar un producto similar.
Part No.: 33173 000
transformador de corriente de 300 A/5 A
5 VA/clase 1
talla 1-3
no longer available
| grupo de producto | 23 |
| subgrupo | 05 |
| embalaje | 3 |
| EAN | 4021267331733 |
| ECLASS 6.1 | 27210902 |
| ECLASS 7.1 | 27210902 |
| ETIM 4.0 | EC002048 |
| ETIM 5.0 | EC002048 |
Normas
IEC 61869-1:2007
IEC 61869-2:2012
Homologación CCC: no es obligatoria la certificación
| datos IEC | |
| Normas | |
|
IEC 61869-1:2007 IEC 61869-2:2012 |
| datos electricos IEC | |
| intensidad de corriente nominal (IEC): | 300 A |
| corriente nominal prim. Ipr: | 300 A |
| intensidad secundaria: | 5 A |
| potencia aparente secundaria: | 5 VA |
| accuracy class (current): | 1 |
| tensión max. de servicio Um: | 720 V |
| corriente en tiempo corto therm. Ith: | 18 kA |
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 3,2 W.
(The power dissipation at full load would be 5,0 W.)
| Primary rated current strength 300 A, secondary rated current strength, 5A, maximum operating voltage Um 0.72kV, frequency 50-60Hz, overcurrent limiting factor FS5 thermal nominal short-time current Ith = 60 x In accuracy class 1 rated apparent power 5VA insulation class E |
| datos mecánicos | |
| An x A x P: | 49 x 27 x 70 |
| peso: | 14,3 kg/100 |
Type of fastening:
can be installed direct into Secur LeanStreamer size 1-3,
can be installed into Secur LeanStreamer size 00 with adapter and
fastening clip
