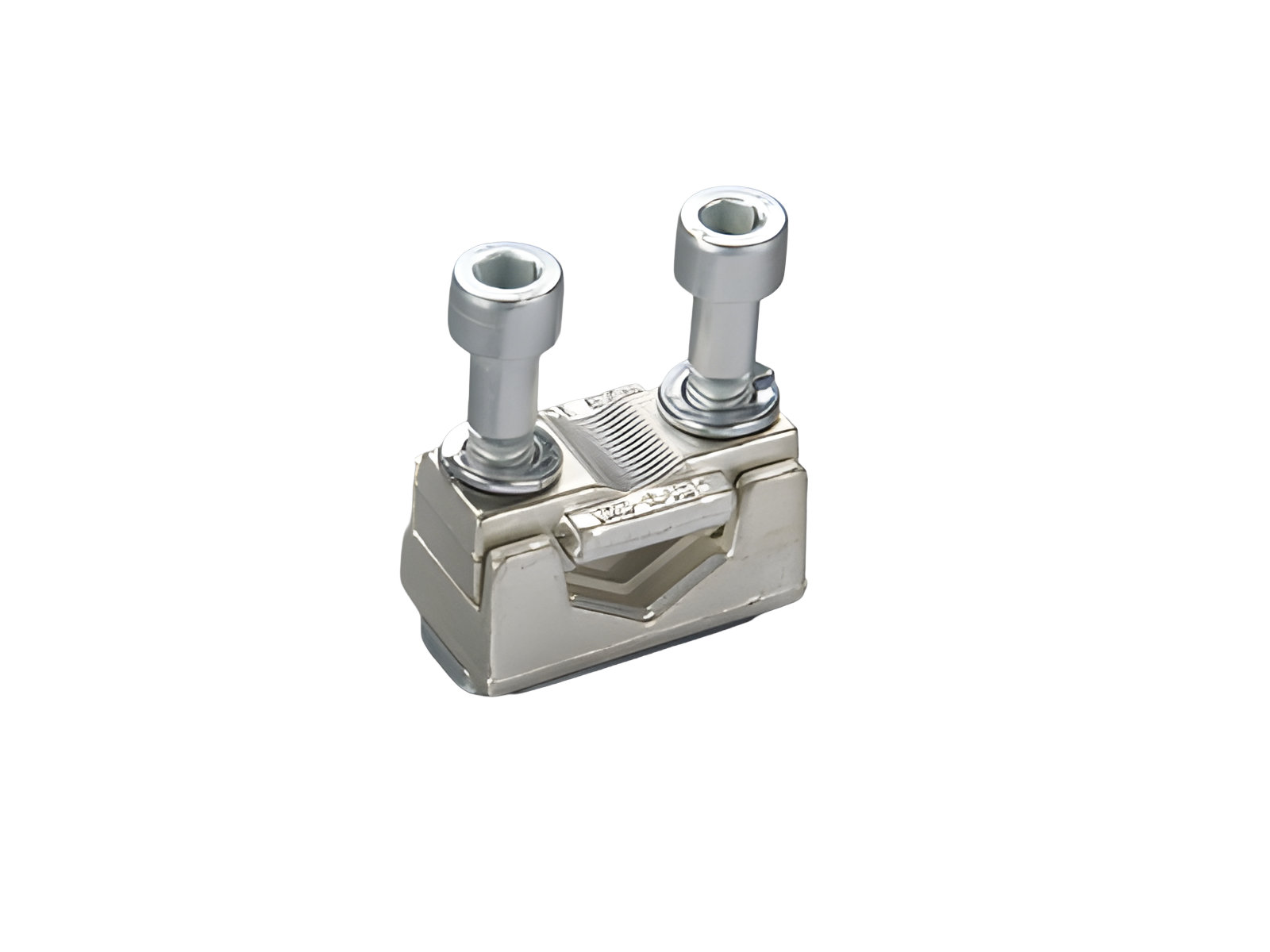

prism terminal, single, for Cu and Al cables (33167)

The picture may show a similar product.

Description

Part No.: 33167000

prism terminal, single, for Cu and Al cables

50 - 240 mm²

System

60Classic

Product group 09
Subgroup 51
pack size 1
EAN 4021267331672
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 19.9 kg/100
Terminal points
screw drive: S5
wire stripping: 27 mm
min. cross-section: 50 mm²
max. cross-section: 240 mm²
rm: 50 - 240 mm²
f: 50 - 240 mm²
f + AE: 50 - 240 mm²
(f + AE may not fit with max. cross-section)
sm: 50 - 240 mm²
Md min.: 4.8 Nm
Md max.: 9.6 Nm
Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

Application notes

Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.
short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03289000
QUADRON®Panel
NH fuse-base 250 A, panel mounting, for PV
incoming connection screw M10, outgoing connection to busbar 2x 30 x 10
size 1XL / 1P, with touch protection
stock sale
More

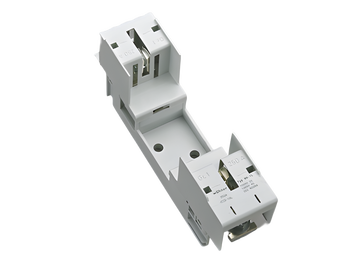

03290000
